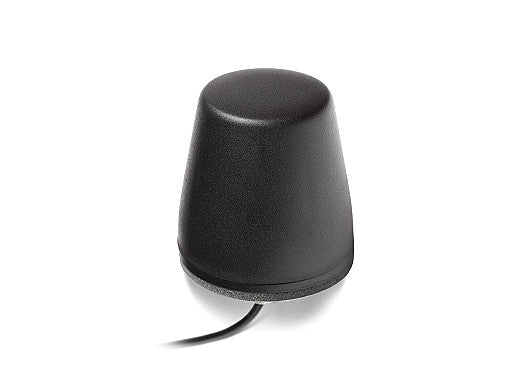

2J7615B-915 LPWAN antenna housing is manufactured from a PC/ABS UV protective material, allowing it to withstand extreme temperatures ranging between -40C to +85C and making it ideal for outdoor applications. 2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.
Product Features:
- The 2J7615B-915 is a narrowband LPWAN antenna operating within the 902–928 MHz frequency range, optimized for 915 MHz ISM applications.
- Delivers a peak gain of 2.5 dBi for strong and consistent LPWAN signal performance in low-power, long-range wireless networks.
- Ground plane dependent design enhances performance when mounted on conductive surfaces.
- Compact design with a form factor of 50 x 50.8 mm, ideal for space-constrained setups.
- Constructed from durable PC/ABS UV-stable material for high resistance to harsh outdoor environments and wide temperature tolerance (-40°C to +85°C).

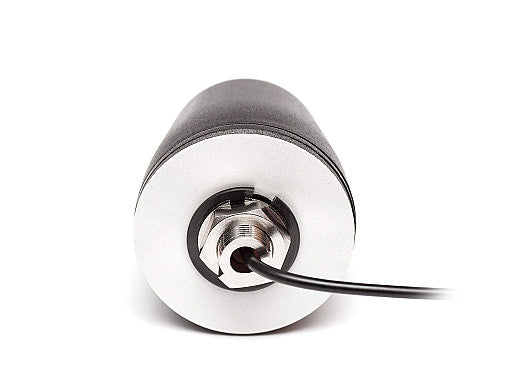

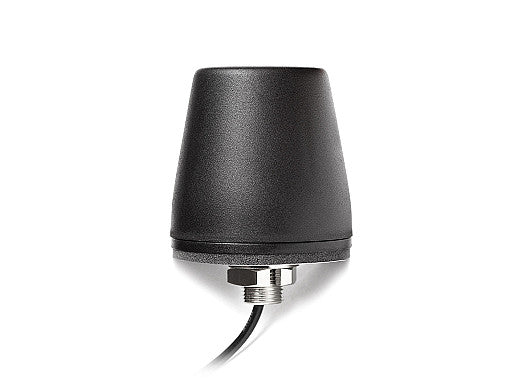

- Reliable screw mount installation ensures secure placement in permanent and semi-permanent deployments.
- Fully compliant with REACH and RoHS standards, manufactured without the use of hazardous materials.
- Customizable cable length and connector type available to match specific device or application requirements.
Application Areas:
- Ideal for LPWAN applications including LoRa, Sigfox, and IoT sensor networks.
- Suitable for environmental monitoring, asset tracking, and industrial control systems.
- Designed for both indoor and outdoor fixed installations requiring narrowband communication.
In the Box:
- 1 x 2J7615B-915 LPWAN 915 MHz Stud Mount Antenna
Documents:
2J7615B-915 ISM Antenna - Datasheet
