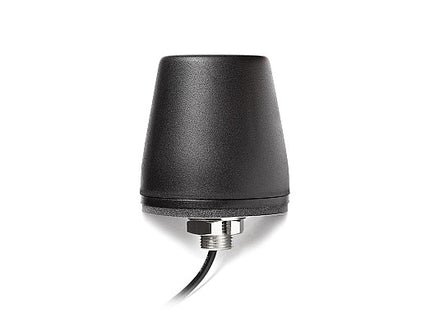

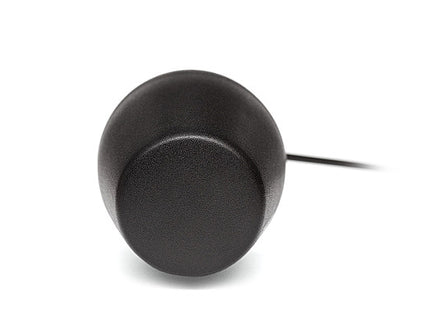

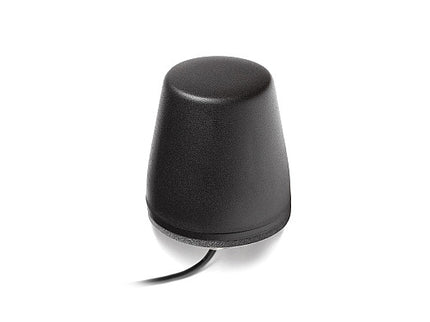

2J 2J7624B Mini-Shaker Antenna, 4G, Low Profile, 700-2700 MHz, Screw Mount

2J 2J7624B Mini-Shaker Antenna, 4G, Low Profile, 700-2700 MHz, Screw Mount

Item ID:
165021909
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
2J7624B
Send Request for Quote (RFQ)
2J7624B Mini-Shaker Antenna is designed to fit a wide range of installation requirements while keeping cost-effectiveness and reliable connectivity in mind. Designed with a low-profile housing, this antenna is ideal for high quality data and voice throughput for mobile, NB-IoT, LPWA, CAT-X/M and FirstNet applications that operate within 698 MHz to 2700 MHz frequencies.
Regular price $23.95
Regular price $0.00 Sale price $23.95
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

2J7624B Mini-Shaker Antenna, 4G Stud Mount is fully IP67 and IP69 rated with protection against ingress of moisture, water, dust, and high temperatures without any compromise to antenna operations. The 2J Mini-Shaker 700 to 2700 MHz antenna housing is manufactured with commercial grade ASA material with a Zamak antenna base and double-sided foam gasket for extra protection. With compact measurements of Ø 50 x 50.8 mm make this ground plane independent antenna ideal for indoor or outdoor installations without restrictions. This antenna is tuned with a single 300 cm long DACAR100 cable that feeds through the anti-rotation screw mount and an SMA-Male end connection.

Product Features:

  • The 2J7624B Mini-Shaker is a compact, wideband 4G LTE stud mount antenna operating across 698 to 2700 MHz frequencies.
  • Delivers a peak gain of 3.2 dBi for enhanced signal quality and stable data performance across all major LTE bands.
  • Ground plane independent design ensures consistent performance regardless of the mounting surface.
  • Built with high-grade ASA housing and a Zamak metal base for maximum durability and thermal stability.
  • Double-sided foam gasket provides added protection against dust and water ingress.
  • Fully rated for IP67 and IP69 ingress protection, ensuring resistance to moisture, water jets, dust, and extreme temperatures (-40°C to +85°C).

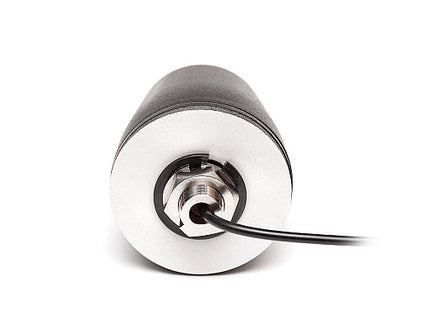

  • Includes an integrated 300 cm DACAR100 cable with an SMA-Male connector, routed through an anti-rotation screw mount for secure installation.
  • Customizable cable length and connector options available to meet specific project requirements.

Application Areas:

  • Ideal for 4G LTE applications in industrial automation, security systems, and telematics.
  • Perfect for mobile and fixed outdoor installations such as vending machines, kiosks, and smart metering.
  • Well-suited for applications requiring a compact, rugged, and weather-resistant antenna design.

In the Box:

  • 1 x 2J7624B Mini-Shaker 4G Stud Mount Antenna
  • 300 cm DACAR100 Cable
  • 1x SMA-Male Connector

Documents:

2J7624B 4G Antenna - Datasheet
