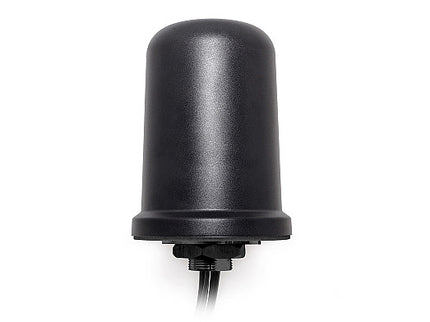

2J 2J7B83Bc 4x4 MIMO 5G Antenna, 617-5925 MHz, Screw Mount

2J 2J7B83Bc 4x4 MIMO 5G Antenna, 617-5925 MHz, Screw Mount

Item ID:
165021907
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
2J7B83Bc
Send Request for Quote (RFQ)
2J7B83Bc 4x4 MIMO 5G Antenna Heavy-Duty Screw Mount delivers powerful worldwide connectivity and is compatible with 5GNR/4G LTE MIMO, 3G and 2G bands (617-5925 MHz frequency range). This antenna facilitates communications in MIMO or separate protocols configuration, allowing devices to remain online while moving through different coverage areas.
Regular price $153.00
Regular price $0.00 Sale price $153.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

2J7B83Bc 4x4 MIMO 5G Antenna Heavy-Duty Screw Mount with GPS/GNSS is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and a plastic antenna base as an alternative low-cost solution to the metal base option. Ground plane independence and screw mount technology allow for solidly locking the antenna on top of its mounting location making its installation easy and reliable. 2J 4G-5G 617 to 5925 MHz 4x4 MIMO supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.

Product Features:

  • The 2J7B83Bc is a 4-in-1 ultra-wideband stud mount antenna engineered for 4G LTE and Sub-6 GHz 5G NR networks with 4x4 MIMO support.
  • Covers an extensive frequency range from 617 to 5925 MHz, ensuring full compatibility with modern 5G and legacy 4G LTE bands.
  • Delivers high performance with a peak gain of 4.8 dBi, improving data speeds and signal reliability for mobile and stationary deployments.
  • Constructed from robust ASA UV-stable material for superior resistance to thermal changes and environmental stressors.

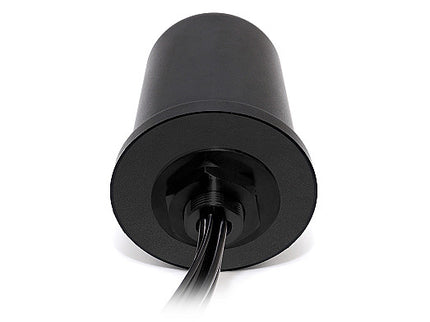

  • Integrated screw mount with anti-rotation design ensures secure and stable attachment during long-term outdoor usage.
  • Plastic antenna base provides a lightweight and economical alternative to metal without compromising durability.
  • Rated IP67 and IP69 for maximum water and dust resistance, with IK09 protection against vandalism and physical impact.
  • Customizable cable lengths and connector types available for tailored project needs and system integration.

Application Areas:

  • Ideal for 5G/4G MIMO installations in transportation, logistics, and emergency response vehicles.
  • Perfect for smart city systems, surveillance units, and industrial automation platforms demanding reliable wireless coverage.
  • Suitable for high-speed mobile communication setups including M2M and IoT in harsh outdoor conditions.
  • Reliable performance for fixed or mobile installations where data throughput and rugged durability are critical.

In the Box:

  • 1 x 2J7B83Bc 4x4 MIMO 5G Screw Mount Antenna

Documents:

2J7B83Bc 5G Antenna - Datasheet
