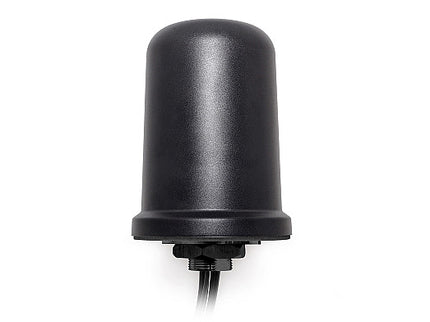

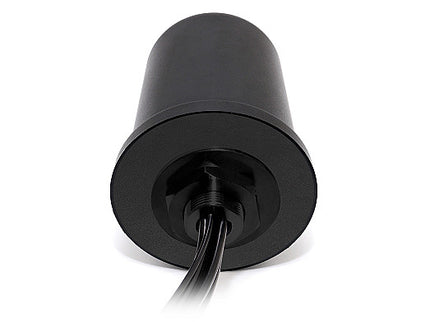

2J 2J7B84BGFc Wi-Fi Ultraband Antenna, MIMO, 617-5925 MHz, Screw Mount

2J 2J7B84BGFc Wi-Fi Ultraband Antenna, MIMO, 617-5925 MHz, Screw Mount

Sold out

Item ID:
165021906
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
2J7B84BGFc
Send Request for Quote (RFQ)
2J7B84BGFc Wi-Fi Ultraband 4×4 MIMO + GNSS 5-Port Combo Stud Antenna facilitates communications in MIMO or separate protocols configuration, allowing devices to remain online while moving through different coverage areas. The easy-to-install heavy-duty design and SMA-Male High-Performance antenna integrates durability and efficiency into a permanent solution.
Regular price $213.50
Regular price $0.00 Sale price $213.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

2J7B84BGFc Wi-Fi Ultraband Antenna 617 to 5925 MHz 4x4 MIMO + GNSS 5-Port Combo Stud is protected with a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and a plastic antenna base as an alternative low-cost solution to the metal base option. Ground plane independence and screw mount technology allow for solidly locking the antenna on top of its mounting location making its installation easy and reliable. Cables and connectors can be customized to specific requirements. The IP67 and IP69 ingress ratings provide this compact antenna with maximum protection against dust and water penetration, while the IK09 rating adds an extra level of anti-vandal security, with high impact resistance. 2J 4G-5G Wi-Fi Ultraband 617 to 5925 MHz 4x4 supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.

Product Features:

  • The 2J7B84BGFc is a 5-port heavy-duty combo antenna featuring 4x4 MIMO for 4G/5G, dual-band Wi-Fi, and active GNSS.
  • Supports ultra-wide frequency range from 617 to 5925 MHz, enabling Sub-6 GHz 5G NR, LTE, Wi-Fi, and IoT connectivity.
  • Delivers high performance with 4.8 dBi peak gain for 5G NR and 24 dB active gain for GNSS positioning.
  • Ground plane independent design allows installation flexibility across different surfaces and materials.
  • Equipped with a plastic antenna base offering a lightweight and cost-effective alternative to metal bases.
  • Screw mount with anti-rotation technology ensures secure and stable attachment to the mounting surface.
  • Rated IP67, IP69 for waterproof and dustproof protection, and IK09 for high-impact vandal resistance.
  • Fully compliant with REACH and RoHS environmental standards, free from hazardous materials.

Application Areas:

  • Fleet management and tracking systems in logistics, transportation, and emergency services.
  • Rugged IoT and M2M applications including smart agriculture, mining, and construction machinery.
  • Smart city infrastructure, outdoor kiosks, surveillance systems, and remote monitoring units.
  • Public safety and defense communications where reliable multi-band connectivity is critical.
  • Fixed or mobile applications requiring precise GNSS navigation and robust signal reception.

In the Box:

  • 1 x 2J7B86BGFa 5-in-1 Combo Stud Antenna

Documents:

2J7B84BGFc 5G/GNSS Antenna - Datasheet
