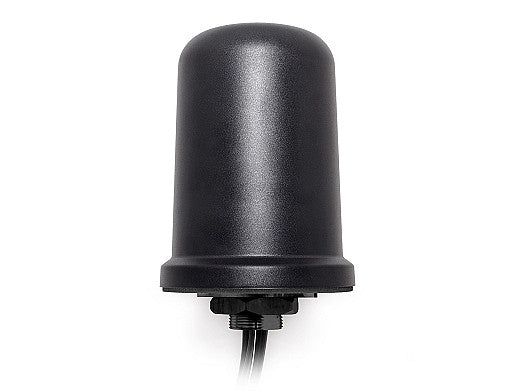

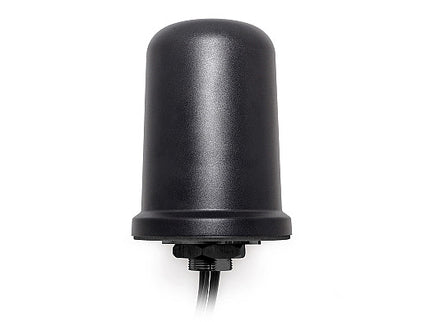

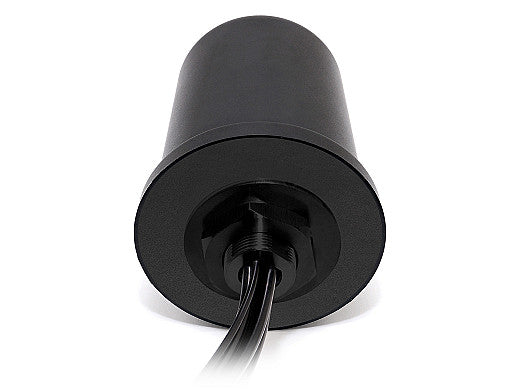

2J7B86BGFa Multiband Antenna, 5-Port Combo Stud is the next-generation antenna that integrates durability, high performance, efficiency and ultra-reliable low-latency communication (URLLC) into a low-cost and permanent solution for medical emergency, construction, agriculture and transportation industries. This Antenna offers 5 high-performance antennas that support 5GNR, 4G LTE, FirstNet, CBRS, LPWA, CAT-X, CAT-Mx, CAT-NBx, NB-IoT, 3G, 2G, Wi-Fi, BT, ZigBee, ISM, GPS and GLONASS standards making it the most reliable antenna on the market.
2J Medusa 4G-5G Ultraband 617 to 5925 MHz is impact resistant, dust resistant and waterproof with full IP67, IP69 and IK09 certification making it ideal for external applications in harsh environmental conditions. Ground plane independence and reliable screw mount installation offer easy, permanent installations on a wide range of surfaces. 2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.
Product Features:
- The 2J7B86BGFa Multiband Antenna (2J Medusa) is a 5-in-1 combo antenna supporting 4G/5G MIMO, dual-band Wi-Fi MIMO, and active GNSS technologies.
- It operates across an ultra-wide frequency range from 617 to 5925 MHz, covering Sub-6 GHz 5G NR, 4G LTE, CBRS, FirstNet, LPWA, CAT-X/Mx/NBx, and NB-IoT bands.
- Equipped with high peak gains: 4.7 dBi for 5G NR and 5.3 dBi for Wi-Fi, offering enhanced signal strength and data transmission performance.
- Includes an active GNSS antenna with 24 dB gain and post-filter for accurate positioning and navigation, supporting GPS and GLONASS.
- Engineered with a rugged ASA UV-stable, impact-resistant housing and lightweight plastic Zamak base for long-term durability.
- Fully certified with IP67, IP69, and IK09 for waterproof, dustproof, and impact-resistant protection in harsh outdoor conditions.
- Ground plane independent design and anti-rotation screw mount simplify secure installation on various surfaces.
- Customizable cable lengths and connector options available to meet unique project requirements.
Application Areas:
- Designed for deployment in transportation fleets, agricultural machinery, emergency response vehicles, and industrial automation systems.
- Ideal for smart city infrastructure, M2M/IoT systems, real-time asset tracking, and rugged outdoor communication platforms.
- Perfect for medical response units requiring ultra-reliable low-latency communication (URLLC) and high-speed data transmission.
- Reliable performance in construction and mining industries where connectivity and GPS accuracy are critical in remote areas.
- Suitable for permanent installations on moving vehicles or stationary outdoor units exposed to extreme weather and physical impacts.
In the Box:
- 1 x 2J7B86BGFa Multiband Antenna (2J Medusa 5-Port Combo Stud Antenna)
Documents:
2J7B86BGFa IoT Antenna - Datasheet
