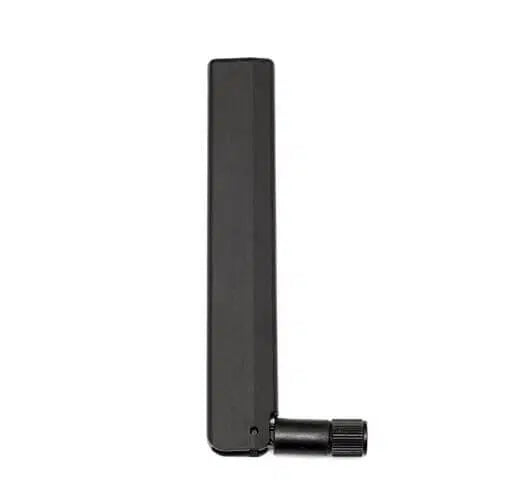

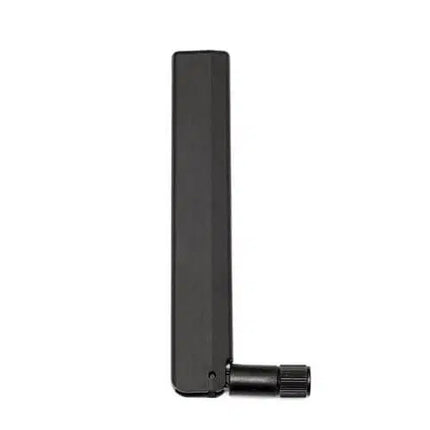

2J 2JW1183-C952B Blade 5G Ultraband Antenna, 617-5925 MHz, Hinged Swivel SMA-Male

2J 2JW1183-C952B Blade 5G Ultraband Antenna, 617-5925 MHz, Hinged Swivel SMA-Male

On backorder

Item ID:
165021930
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
2JW1183-C952B
Send Request for Quote (RFQ) Discount Offers
2J 2JW1183-C952B Cellular Antenna 4G-5G WiFi 617 to 5925 MHz Ultraband Hinged SMA Male; combines high performance with full bandwidth coverage.
Regular price $15.15
Regular price $0.00 Sale price $15.15
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The 2J 2JW1183-C952B is a high-performance ultraband hinged antenna designed to support 4G and 5G wireless technologies. Operating across the wide frequency spectrum of 617 to 5925 MHz, this antenna ensures consistent and reliable signal strength in various environments. It is housed in a UV-stable PC/ABS enclosure, making it highly resistant to environmental stressors such as extreme temperatures ranging from -40°C to +85°C. Its ground plane independent design allows for flexible installation on metal or plastic surfaces without compromising performance. The hinged SMA(M) connector enables optimal positioning in tight or constrained spaces, making it an ideal solution for compact and portable wireless systems.

Product Features:

  • This is a dipole antenna engineered for consistent high-frequency performance.
  • The antenna is ground plane independent, allowing it to be installed in a wide range of surfaces with minimal installation limitations.
  • Supports ultra-wideband operation across the 617 to 5925 MHz frequency range.
  • Designed to work across Sub-6 GHz bands for modern 4G LTE and 5G NR networks.
  • Fully backward compatible with 4G LTE networks to support legacy infrastructure.
  • Delivers a peak gain of 1.6 dBi on 5G NR bands for robust signal reception.
  • Hinged SMA Male connector provides flexibility for positioning and improves connectivity in constrained installation environments.
  • The radome is made from UV-stable PC/ABS plastic to withstand outdoor exposure and environmental wear.
  • The antenna is compliant with RoHS and REACH environmental standards, ensuring it is manufactured without hazardous materials.

Application Areas:

  • Ideal for integration with Cel-Fi SOLO for Vodafone and Optus networks.
  • Perfect for use in wireless IoT deployments, smart city infrastructure, and edge networking systems.
  • Recommended for outdoor gateways, routers, and signal boosters requiring 4G and 5G support.
  • Suitable for vehicular and portable communication systems needing flexible antenna orientation.

In the Box:

  • 1x 2J 2JW1183-C952B Hinged Blade Antenna
  • SMA(M) Connector

Documents:

2JW1183-C952B Cellular Antenna - Datasheet

Product Specifications

MPN 2JW1183-C952B
Antenna port connectors SMA (M)
Brands 2J Antennas
Coverage type Omni-directional
Height 1
Installation type Device mounting
Length 13.5
Low pim No
Max frequency mhz 5925
Max gain dbd dbi 1.6
Mimo support No
Min frequency mhz 617
Min gain dbd dbi -1.1
Mount supported Connector mount
Mount supported detailed Connector
No of antenna ports 1
Power w 25
Technologies supported 2G, 3G, 4G, 5G
Width 1.9
