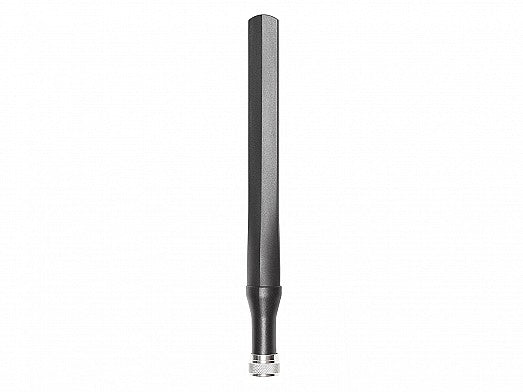

The 2J Dagger 2JW1483 Antenna is an ultra-slim, high-performance dipole antenna designed for robust and flexible 4G/5G cellular connectivity. Measuring just 192 x 20 x 18 mm, this antenna features an SMA-Male connector and supports direct mounting to any plastic or metal enclosure, including NEMA-rated housings. Engineered with UV-stable PC/ABS materials and certified to IP67 and IP69 standards, the 2JW1483 is built for long-term durability in harsh environments. Additionally, it complies with REACH and RoHS regulations, reflecting 2J Antennas' commitment to environmentally safe manufacturing practices.
Product Features:
- Dipole antenna design enables stable signal performance across a wide frequency range.
- Ground plane independent, allowing greater flexibility during installation.
- Ultra-wideband performance covering 617 MHz to 3800 MHz for full 5G Sub-6 GHz and 4G LTE compatibility.
- It provides backward compatibility with all existing 4G LTE bands.
- It delivers a peak gain of 0.6 dBi for 5G NR, ensuring high-quality connectivity.
- Encased in durable PC/ABS material with full IP67 and IP69 waterproof certification.
- Supplied with an SMA-Male connector for direct enclosure integration.
- REACH and RoHS compliant for environmentally responsible applications.
Application Areas:
- Ideal for M2M and IoT applications requiring reliable cellular communication across 4G and 5G bands.
- Suitable for use in industrial enclosures, smart meters, transportation systems, and outdoor wireless installations.
- Recommended for environments demanding waterproof, weather-resistant antenna solutions.
In the Box:
- 1x 2J Dagger 2JW1483 Antenna
Documents:
2JW1483 5G Antenna - Datasheet
