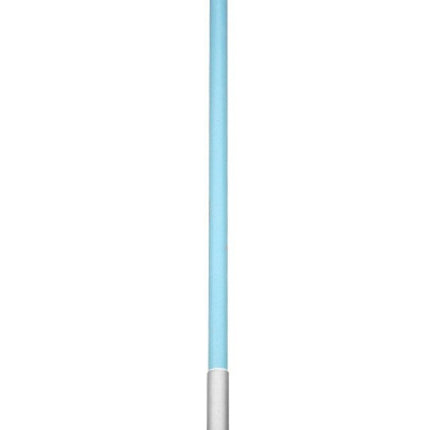

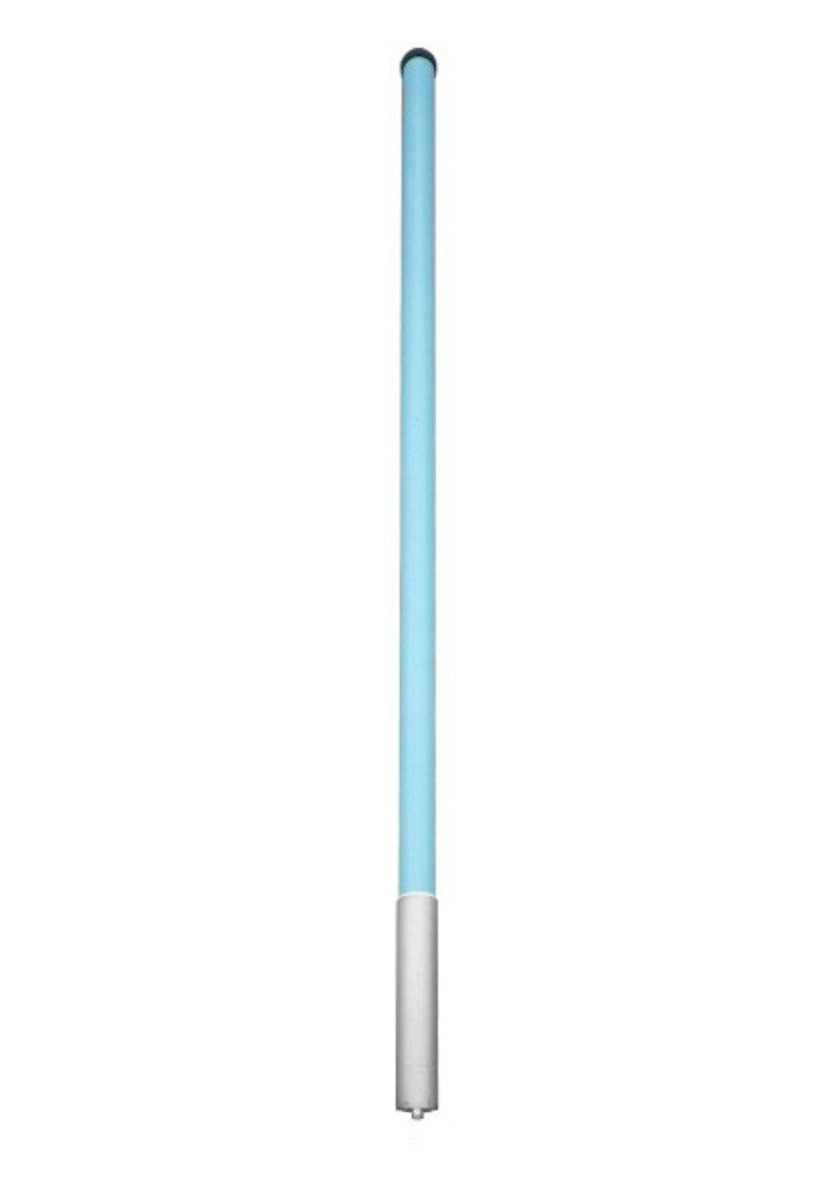

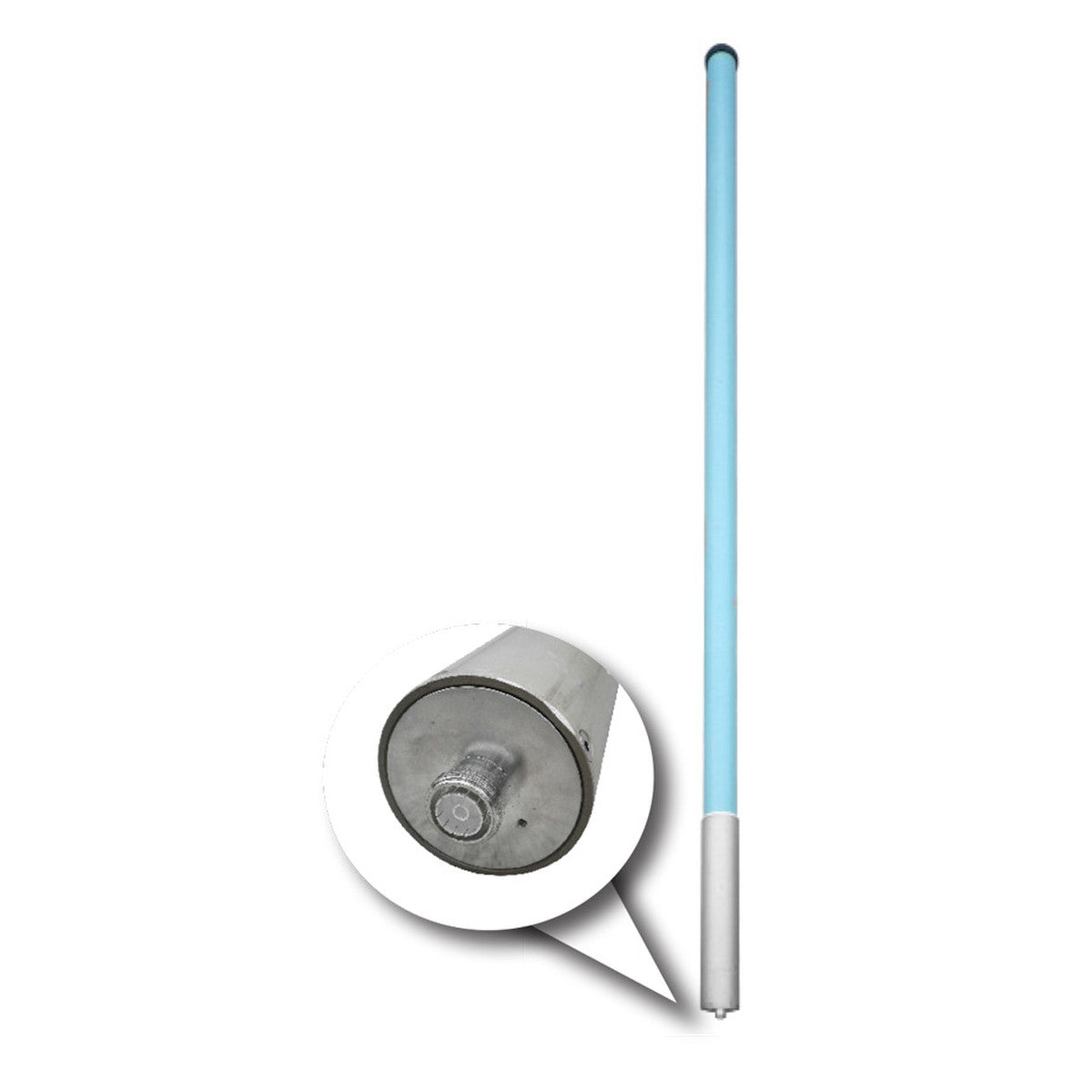

The true corporate feed of these arrays maintains total pattern integrity over a very broad operating bandwidth, similar to that previously available only in exposed dipole configurations. This is now achieved in the preferred from factor of a fully enclosed fiberglass radome. The corporate collinears employ a unique corporate phasing system enabling precision control of the element placements ensuring phase purity resulting in exceptional bandwidth and electrical performance. Gain is maximized and side lobes reduced dramatically. In a patented design approach the individual dipole elements including matching network are fabricated entirely of a flexible circuit board. The dipole elements are soldered to a brass support tube which is directly connected to the mounting tube and the lightning spike at the top of the antenna.
Features:
- 500W Continuous Power rating
- -150 dBc Passive Intermodulation (PIM) rating
- 25 kW Peak Instantaneous Power (PIP) rating
- Extraordinary bandwidth characteristics with superior pattern control
- DC grounding on all elements for the ultimate in lightning protection and dissipation of static noise
- Pre-set downtilt variations of 1, 3 and 5 degrees are available on CC807-08 & CC807-11 Models (see notes)
- An inverted 5 degree downtilt version is also available in the CC807-08 model
Documents:
RFI CC807 Collinear Antenna - Datasheet
RFI CC Series Antenna - Installation Guide
