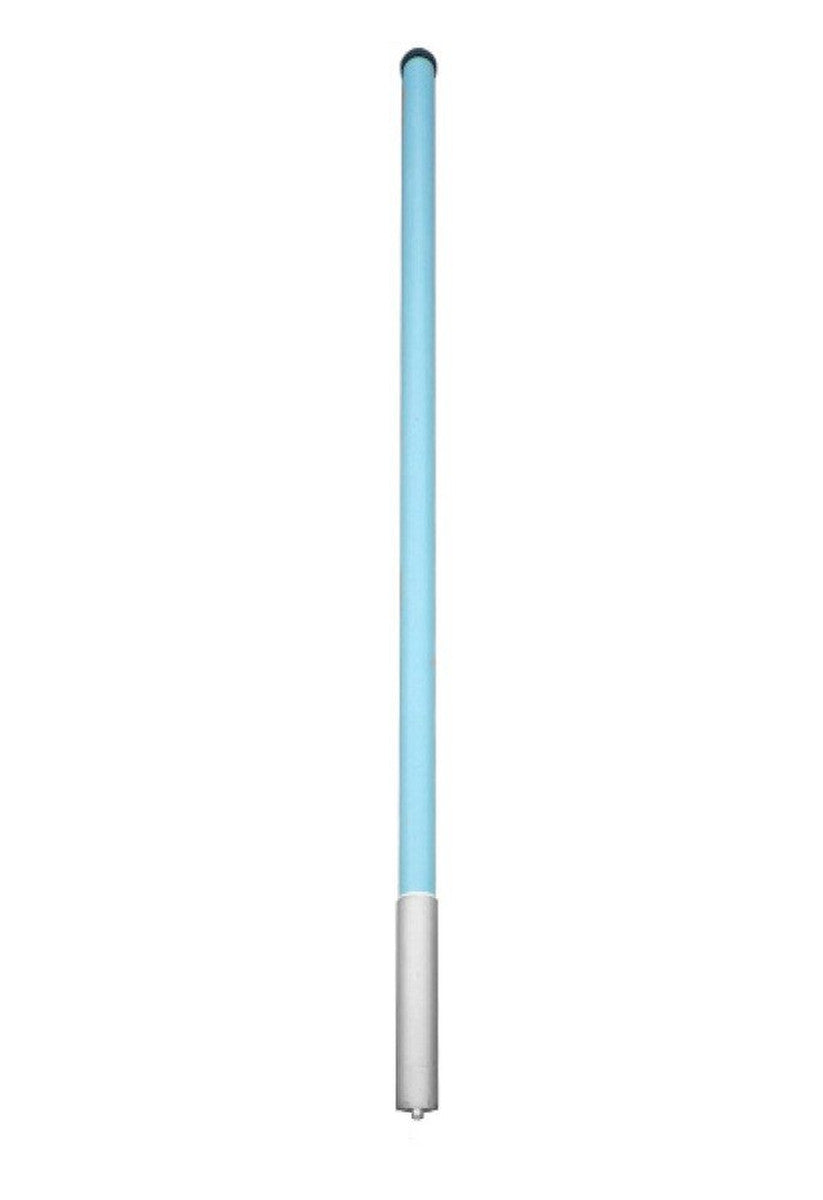

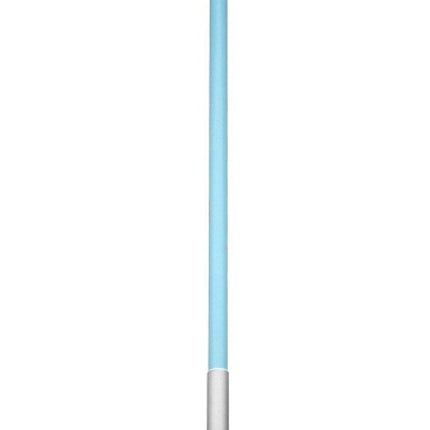

800 MHz Corporate Collinear Antenna 746-870 MHz - 9.0 dBd, is an industry-leading solution. It combines numerous communication services into a single, low-profile antenna, offering improved performance and reduced tower loading. The new CC807-12-P and CC807-09-P models provide higher gain within a compact design package to their CC807-08/CC807-11 counterpart.

Product Features:

• High Gain Performance: Boasting a 9.0 dBd gain, these corporate collinear antennas offer extraordinary bandwidth characteristics with superior pattern control and reduced tip deflection.
• Innovative Design: Unique corporate phasing system ensures precise control of element placements, resulting in exceptional bandwidth and electrical performance.
• Flexible Circuit Board Construction: Utilizing a patented design approach, dipole elements and matching network are fabricated entirely of a flexible circuit board, maximizing gain.
• Durable Construction: Dipole elements are soldered to a brass support tube directly connected to the mounting tube, enhancing structural integrity.
• Powerful Ratings: These antennas deliver robust performance with a 500W continuous power rating, -150 dBc Passive Intermodulation (PIM) rating, and 25 kW Peak Instantaneous Power (PIP) rating.
• Lightning Protection: DC grounding on all elements ensures the ultimate in lightning protection and static noise dissipation.
• Pre-set Downtilt Options: CC807-09 & CC807-12 models offer pre-set downtilt variations of 2 and 4 degrees for enhanced coverage.

Application Areas:

• Perfect for site operators combining multiple communication services into a single, efficient antenna solution.
• Ideal for scenarios requiring high gain, low profile, and exceptional bandwidth.

In the Box:

• RFI CC807-09-P Corporate Collinear Antenna

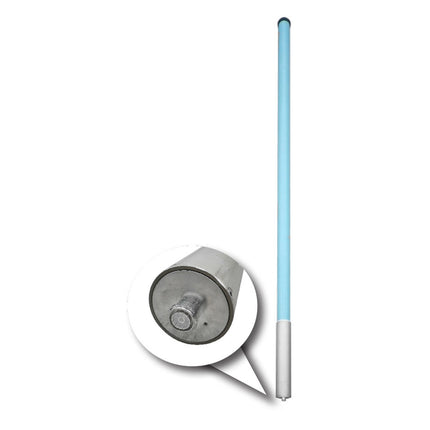

• 4.3-10-Female connector

Documents:

RFI CC807 Collinear Antenna - Datasheet RFI CC Series Antenna - Installation Guide
