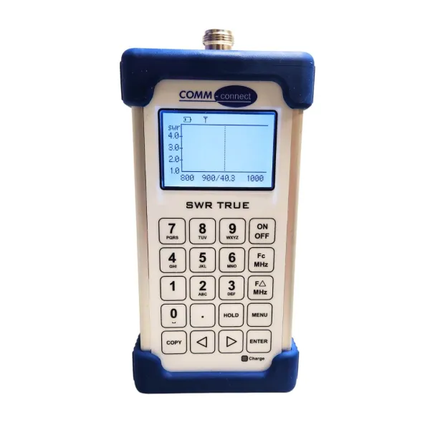

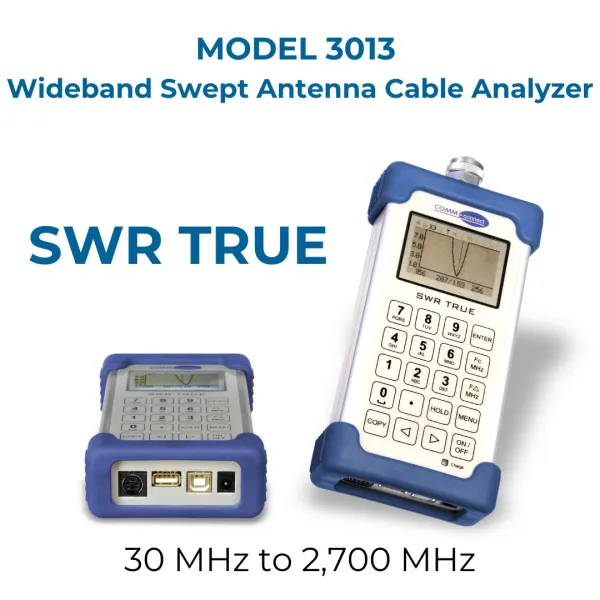

The COMM-Connect 3013 Antenna Analyzer is a compact and versatile instrument, designed for antenna and cable analysis across major communication bands from 30 MHz to 2700 MHz. This SWR True Analyzer goes beyond expectations, offering graphical representation of measurements in VSWR or Return Loss plots. With a built-in PLL synthesized generator, it ensures superior accuracy with a small step size.

Product Features:

• This analyzer covers all major communication bands from 30 MHz to 2700 MHz, providing comprehensive antenna and cable analysis.
• The device visualizes measurements with VSWR or Return Loss plots, making analysis quick and easy.
• It delivers superior accuracy with a small step size, ensuring reliable measurements.

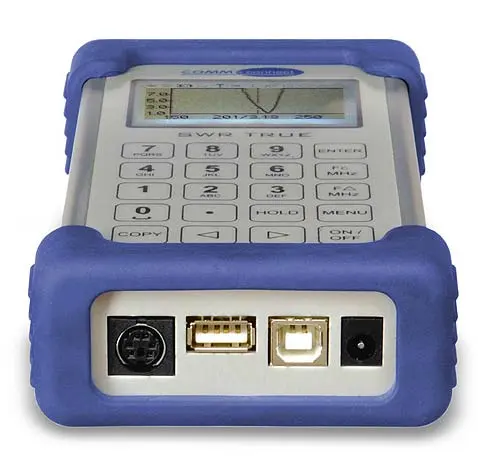

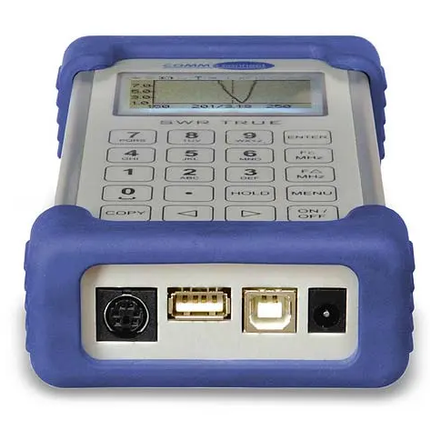

• This analyzer allows you to write plots to memory sticks or a connected PC, and operate the instrument using I/Os for command and data exchange.
• The integrated real-time clock facilitates documentation reference.
• This compact and lightweight device is powered by internal NiMh cells, offering over 6 hours of continuous operation.
• It features XML data handling and an application viewer for enhanced functionality.
• The analyzer comes with a soft carrying bag, car charger, and coax adapters for standard types.

Application Areas:

• This analyzer is ideal for comprehensive analysis in various communication bands.
• It is suitable for fieldwork due to its portability and battery operation.
• This device is perfect for both professional and hobbyist settings requiring precise measurements.

In the Box:

• 1x COMM-Connect 3013 Antenna Analyzer
• Soft carrying bag
• Car charger
• Coax adapters for standard types

Documents:

COMM-Connect 3013 SWR Analyzer - Datasheet COMM-Connect 3013 SWR Analyzer - Operators Manual
