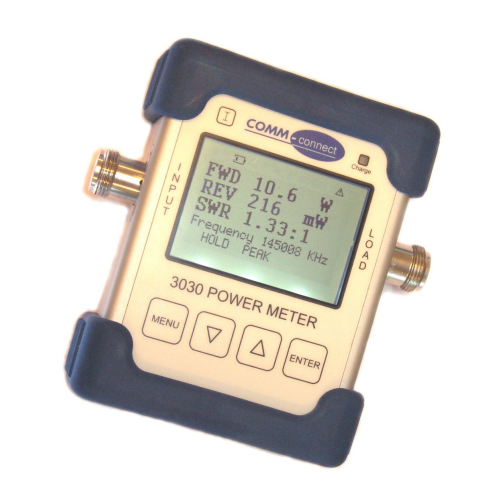

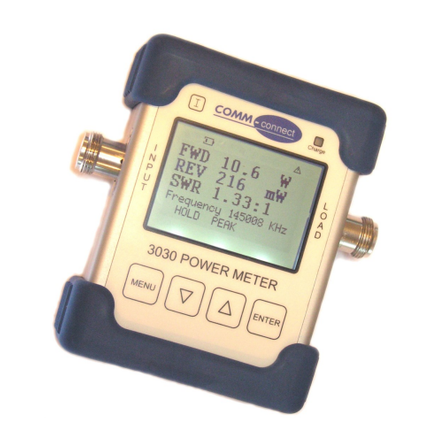

The COMM-Connect 3030-EXT Power Meter (Extended 30–1000 MHz) is a modernized and portable version of the traditional antenna wattmeter and VSWR analyzer. Designed for RF professionals and technicians, this advanced instrument measures forward and reflected power from 100 mW up to 100 W, while offering extended frequency coverage up to 1000 MHz. Built-in automation, rugged construction, and field-friendly features make it ideal for fast, accurate RF testing in both indoor and outdoor environments.
Product Features:
- The meter measures forward and reflected RF power from 100 mW to 100 W, making it suitable for various RF transmitter output levels.
- A built-in frequency counter automatically detects the transmit frequency and loads the corresponding calibration table for precise measurements.
- Manual frequency mode is available for use outside the counter’s detection range, offering a wider dynamic range and enhanced operational flexibility.
- The device calculates both Voltage Standing Wave Ratio (VSWR) and Return Loss, allowing users to identify mismatches in antenna systems and transmission lines.
- It supports four measurement modes: Normal, RMS, Peak, and Peak Hold, enabling in-depth signal behavior analysis across different RF scenarios.
- A transflective LCD screen ensures visibility under direct sunlight, while an integrated backlight allows operation in low-light conditions.
- The auto power-off feature helps conserve battery life during long field deployments, enhancing operational efficiency.

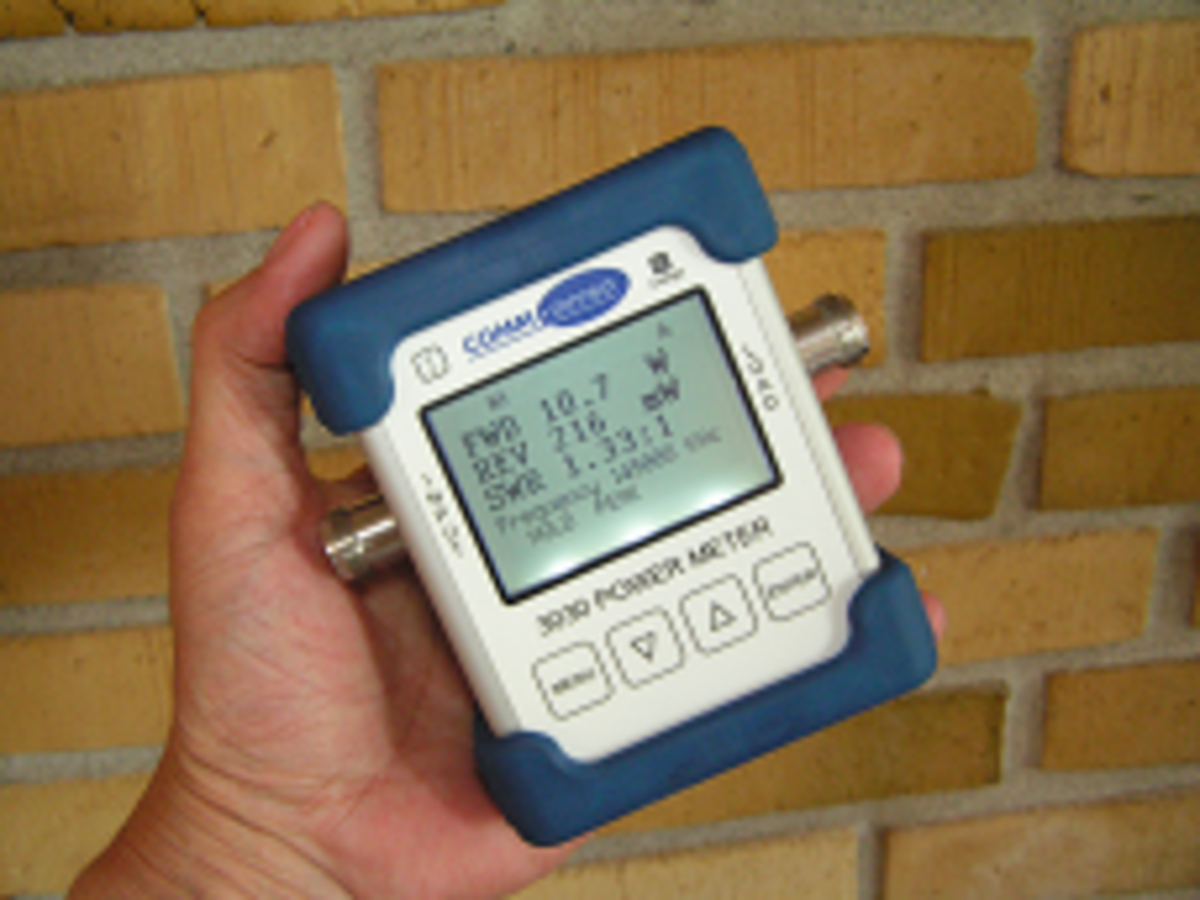

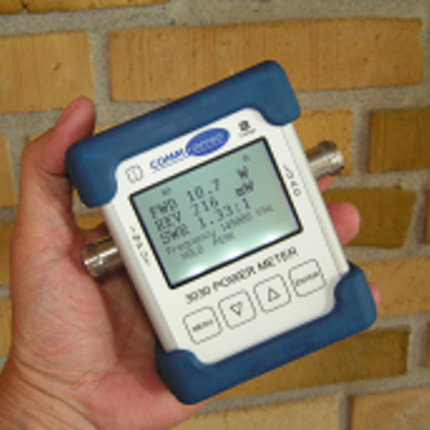

- Its lightweight, handheld design ensures portability without compromising durability, making it an excellent choice for on-the-go RF diagnostics.
Application Areas:
- Ideal for RF technicians and engineers conducting antenna testing and calibration.
- Used in VHF, UHF, and upper-band communication systems for performance verification.
- Perfect for two-way radio system maintenance and base station diagnostics.
- Supports quick field measurements in commercial, defense, emergency services, and amateur radio setups.
In the Box:
- 1 x COMM-Connect 3030-EXT Power Meter (Extended Model)
Documents:
COMM-Connect 3030 Power Meter – Datasheet
COMM-Connect 3030 Power Meter – User Manual
