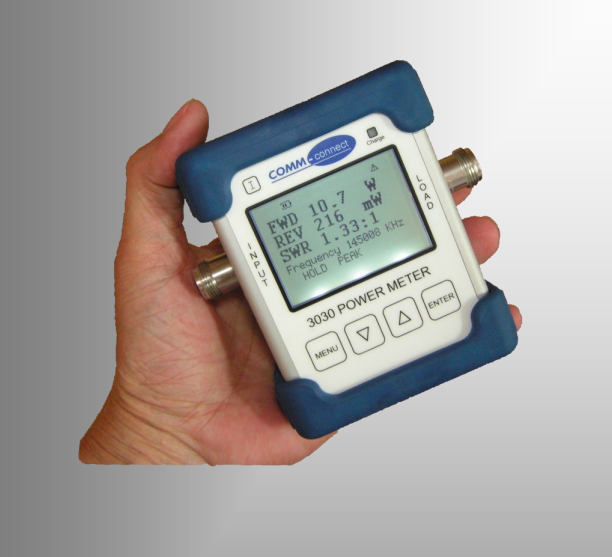

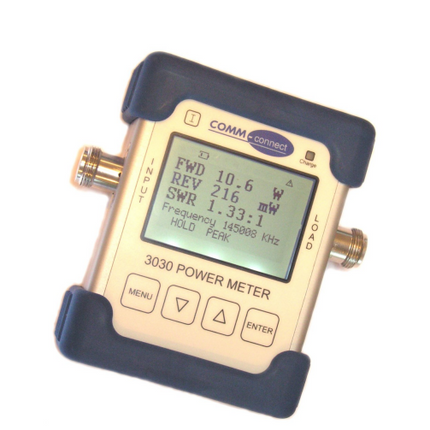

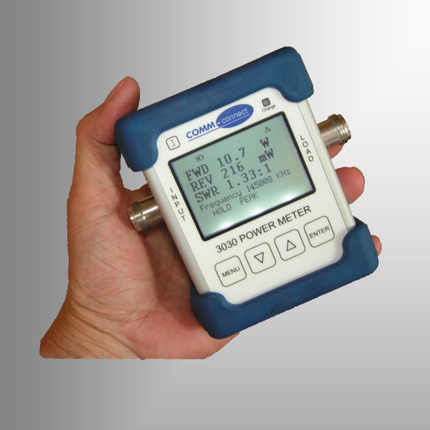

The COMM-Connect 3030 RF Directional Power Meter is a rugged and portable instrument designed to provide fast and accurate measurement of forward and reflected RF power between 30 MHz and 500 MHz. For 30 MHz to 1000 MHz support, please check COMM-Connect 3030-EXT Directional Power Meter, 30-1000 MHz. With a built-in frequency counter, VSWR/Return Loss calculator, and multiple power modes, it is the perfect solution for testing and documenting antenna performance in various RF environments.

Product Features:

• The meter accurately measures forward and reflected power from as low as 100 mW up to 100 W, ensuring suitability for a wide range of RF applications.
• It supports a frequency range from 30 MHz to 500 MHz, making it ideal for both VHF and UHF systems.
• A built-in frequency counter automatically detects the transmit frequency and applies the correct calibration for accurate readings.
• When operating outside the counter’s range, users can switch to manual mode to maintain a wider dynamic range and operational flexibility.
• The device calculates VSWR (Voltage Standing Wave Ratio) and Return Loss, providing essential metrics for antenna system evaluation.
• It includes selectable measurement modes such as Normal, RMS, Peak, and Peak Hold, allowing users to analyze various RF signal characteristics.
• A transflective LCD screen offers high visibility even under direct sunlight, while a backlight enables use in dim environments.
• The meter features a menu-based setup system for intuitive operation and includes an Auto Power Off function to extend battery life.

Application Areas:

• This power meter is ideal for use by field technicians and engineers performing antenna performance testing in outdoor installations.
• It is suitable for use in laboratory environments where accurate RF power and VSWR measurements are essential for component validation.
• The device can be used in maintenance and troubleshooting of communication systems, ensuring optimal performance and safety compliance.

In the Box:

• 1 x COMM-Connect 3030 RF Directional Power Meter unit
• 1 x Protective carrying case
• A set of coaxial adapters
• 1 x Vehicle power adapter

Documents:

COMM-Connect 3030 Power Meter – Datasheet COMM-Connect 3030 Power Meter – User Manual
