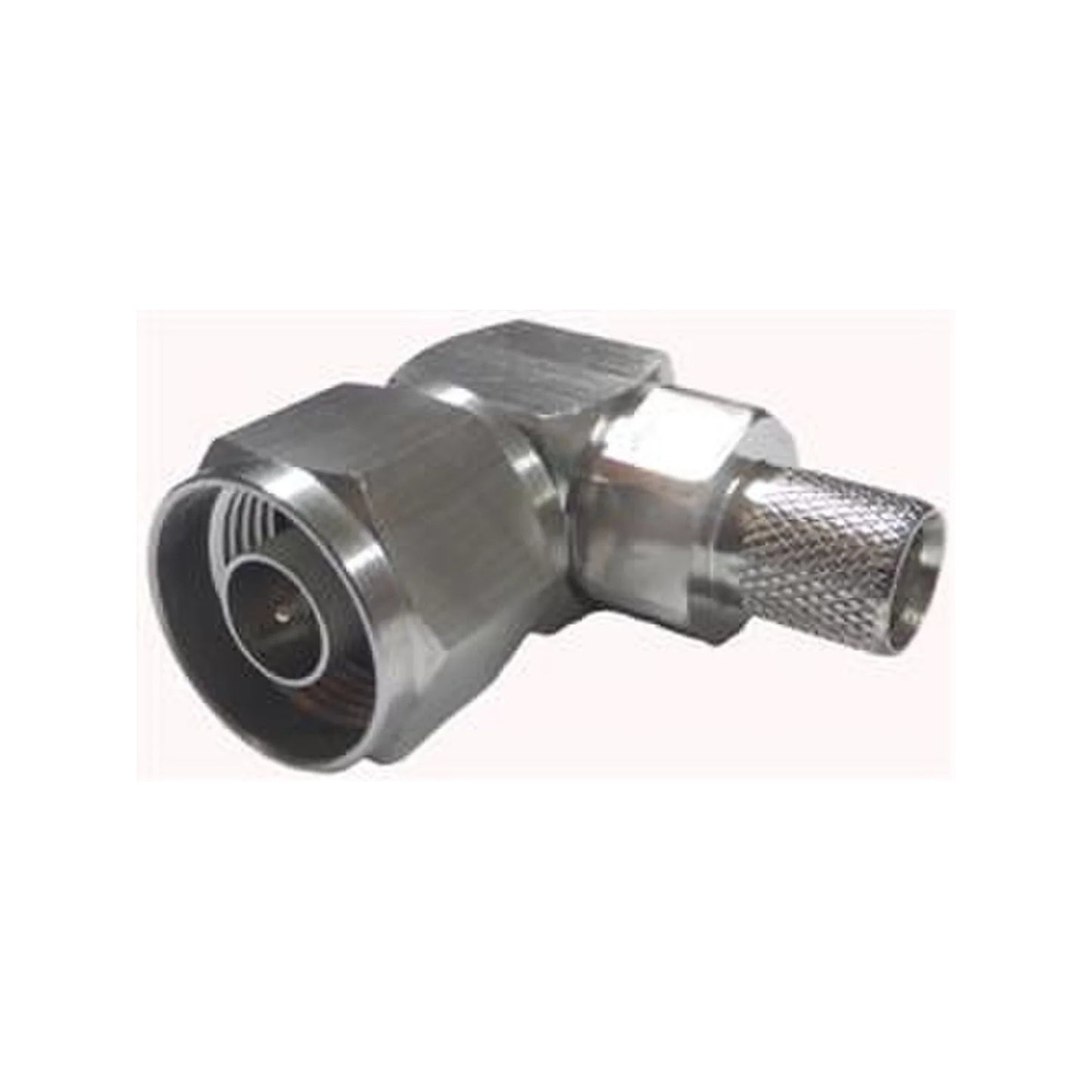

CommScope 400BPNR-C-CR Right Angle Type-N Male Connector for CNT-400 Braided Cable

CommScope 400BPNR-C-CR Right Angle Type-N Male Connector for CNT-400 Braided Cable

Available

Item ID:
168018573
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
400BPNR-C-CR
Send Request for Quote (RFQ)
The CommScope 400BPNR-C-CR is a high-quality Right-Angle Type-N Male Connector designed specifically for CNT-400 braided cable.
Regular price $22.85
Regular price $0.00 Sale price $22.85
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope 400BPNR-C-CR is a high-quality Right-Angle Type-N Male Connector designed specifically for CNT-400 braided cable. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the 400BPNR-C-CR connector guarantees dependable connectivity and signal integrity.

Product Features:

  • The inner contact is attached using a captivated method and has silver plating on the inner contact.
  • The outer contact is attached using a crimp method and trimetal plating on the outer contact.
  • The typical insertion loss is 0.05 dB and the cable impedance is 50 ohms.
  • The maximum inner contact resistance is 1 mOhm and minimum insulation resistance of 5000 MOhm.
  • This connector operates in the frequency band of 0 – 6000 MHz.
  • The maximum outer contact resistance is 0.25 mOhm and can handle a peak power of up to 10 kW.
  • The maximum RF operating voltage is 707 V (vrms).
  • The connector retention tensile force is 330 N and connector retention torque is 0.56 N-m.

Application Areas:

  • This connector is ideal for use in telecom networks and infrastructure.
  • It provides reliable signal transmission for broadcasting applications.
  • It is perfect for industrial environments where robust connectivity is crucial.
  • This connector ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope 400BPNR-C-CR Right Angle Type-N Male Connector

Documents:

CommScope 400BPNR-C-CR Connector - Datasheet CommScope 400BPNR-C-CR Connector - Installation Guide
