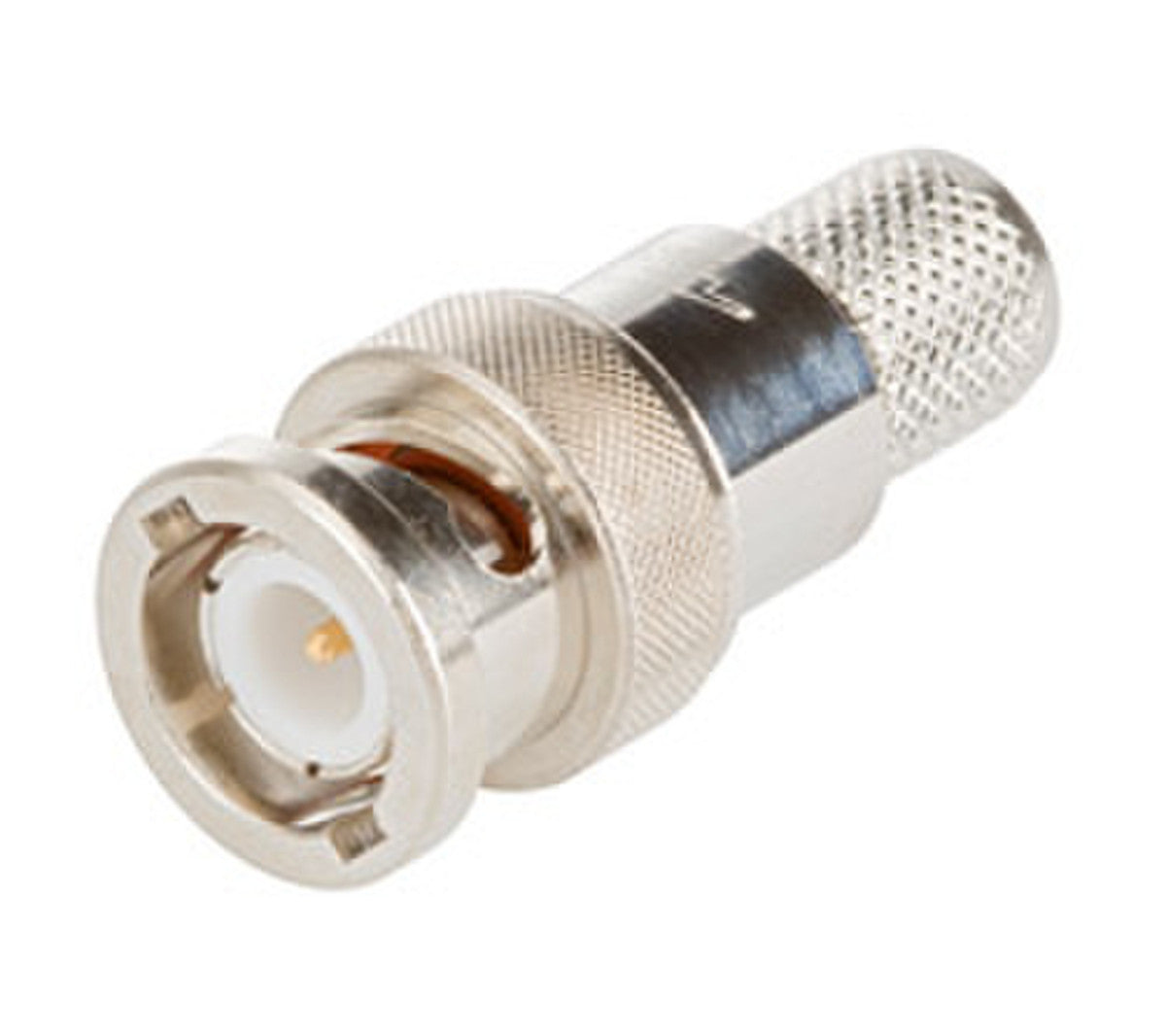

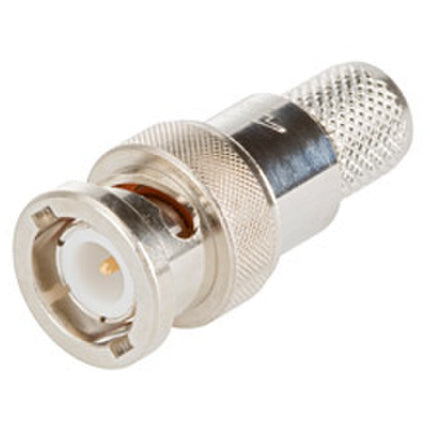

CommScope 400PBM-CR BNC-Male Connector for CNT-400 Braided Cable

CommScope 400PBM-CR BNC-Male Connector for CNT-400 Braided Cable

On backorder

Item ID:
168018277
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
400PBM-CR
Send Request for Quote (RFQ)
The CommScope 400PBM-CR is a high-quality BNC-Male Connector designed specifically for CNT-400 braided cable. It features straight body style with a BNC (M) interface.
Regular price $18.65
Regular price $0.00 Sale price $18.65
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope 400PBM-CR is a high-quality BNC-Male Connector designed specifically for CNT-400 braided cable. It features straight body style with a BNC (M) interface. The inner contact is attached by soldering and plated with gold. The outer contact is attached by crimping and plated with trimetal.

Product Features:

  • The connector is not pressurizable.
  • Both the cable and connector have an impedance of 50 ohms.
  • The average power at 900 MHz is 580.0 W, with a peak power of 5 kW.
  • The DC test voltage is 1500 V, with a maximum RF operating voltage of 500 V (vrms).
  • The maximum inner contact resistance is 2.5 mOhm, and the maximum outer contact resistance is 1 mOhm.
  • The minimum insulation resistance is 5000 MOhm and operating frequency band ranges from 0 to 6000 MHz.
  • The connector retention tensile force is 330 N, and the retention torque is 0.56 N-m or 0.75 N-m.
  • The coupling nut proof torque is 0.25 Nm and the retention force is 445 N.
  • The attenuation is measured at an ambient temperature of 20 °C, and the average power is measured at 40 °C.

Application Areas:

  • Ideal for use in telecom networks and infrastructure.
  • Suitable for broadcasting applications requiring reliable signal transmission.
  • Perfect for industrial environments where robust connectivity is crucial.
  • Ensures reliable connections in data center applications.

In the Box:

  • 1 x CommScope 400PBM-CR BNC-Male Connector for CNT-400 Braided Cable

Documents:

CommScope 400PBM-CR Connector - Datasheet CommScope 400PBM-CR Connector - Installation Guide

Product Specifications

MPN 400PBM-CR
Brands CommScope
Cable supported CNT-400
Cable type connectors CNT400
Centre conductor Solder
Component type Braided cable connector
Connector end a BNC (M)
Durability 500 cycles
Height 1.4
Impedance ohm 50
Inner attachment Other
Insertion loss db 0.05
GTIN/EAN 646444851589
Length 3.776
Max frequency mhz 6000
Min frequency mhz 0
Mounting angle Straight
Nominal size 0.405 in
Operating temperature c -40 to +85
Prep toolset CTBC
Pressurizable No
Torque nm 0.25
Width 1.4
