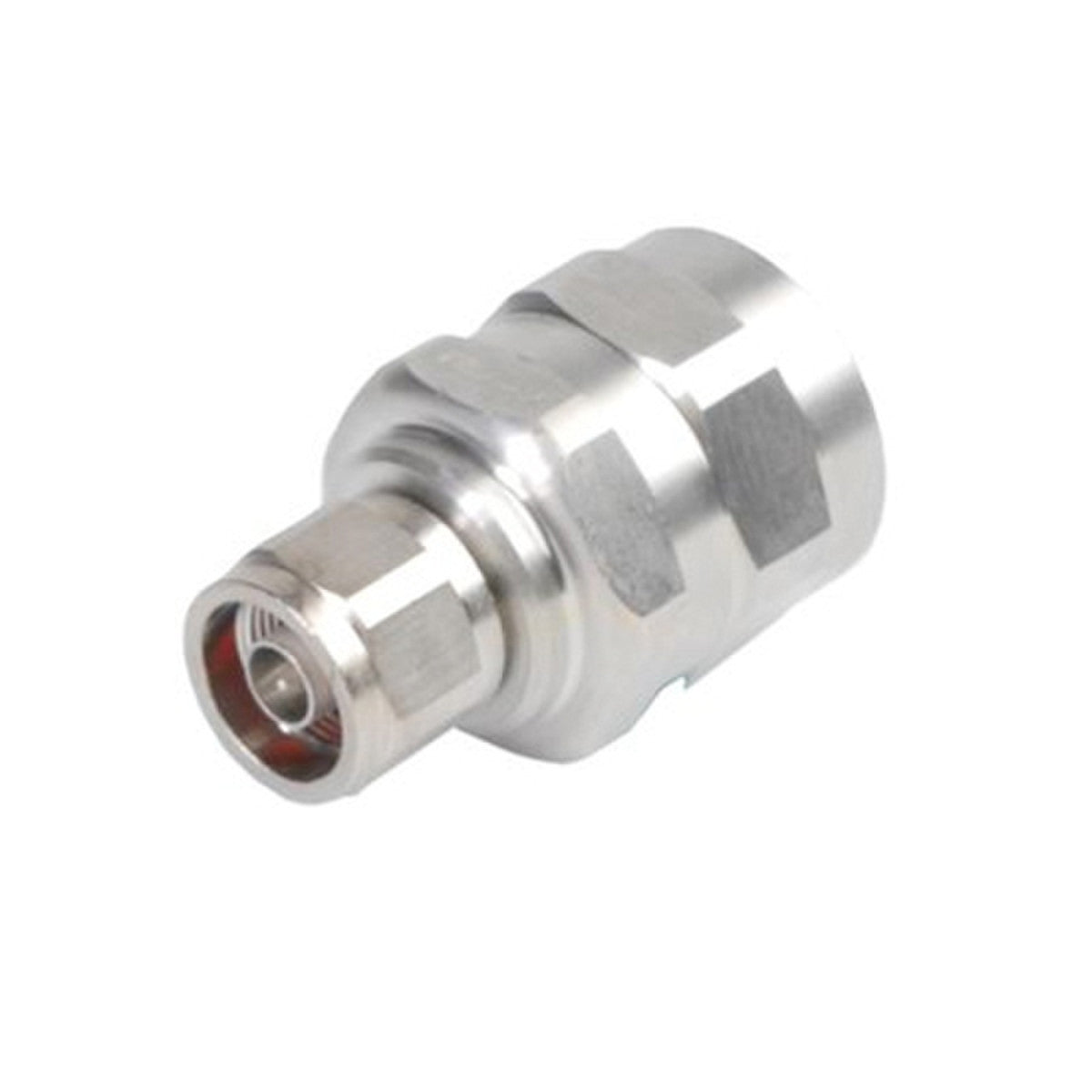

The CommScope 78EZNM is a high-quality Type-N Male Ezfit Connector designed specifically for 7/8'' FXL-780, AVA5-50, and AVA5-50FX cables. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the 78EZNM connector guarantees dependable connectivity and signal integrity.

Product Features:

• This connector has a straight body style and is designed for the AVA5-50, AVA5-50FX, and FXL-780 cable families.
• The inner contact is attached using a captivated method and has silver plating.
• It features an N Male interface with a straight mounting angle.
• The outer contact is attached using a clamp method and has trimetal plating.
• This connector is not pressurizable and has a typical insertion loss coefficient of 0.05.
• The cable and connector impedance are both 50 ohms.
• It can handle a peak power of up to 10 kW.
• The attachment durability is 25 cycles.

Application Areas:

• This connector is ideal for use in telecom networks and infrastructure.
• It provides reliable signal transmission for broadcasting applications.
• It is perfect for industrial environments where robust connectivity is crucial.
• This connector ensures reliable connections in data center applications.

In the Box:

• 1x CommScope 78EZNM Type-N Male Ezfit Connector

Documents:

CommScope 78EZNM Connector - Datasheet EZfit Series Connectors Installation Using Drill Tool EZfit Series Connectors Installation Using Hand Tool

Videos:

EZfit Series Connectors Installation Using Automated Drill Tool EZfit Series Connectors Installation Using Manual Tool
