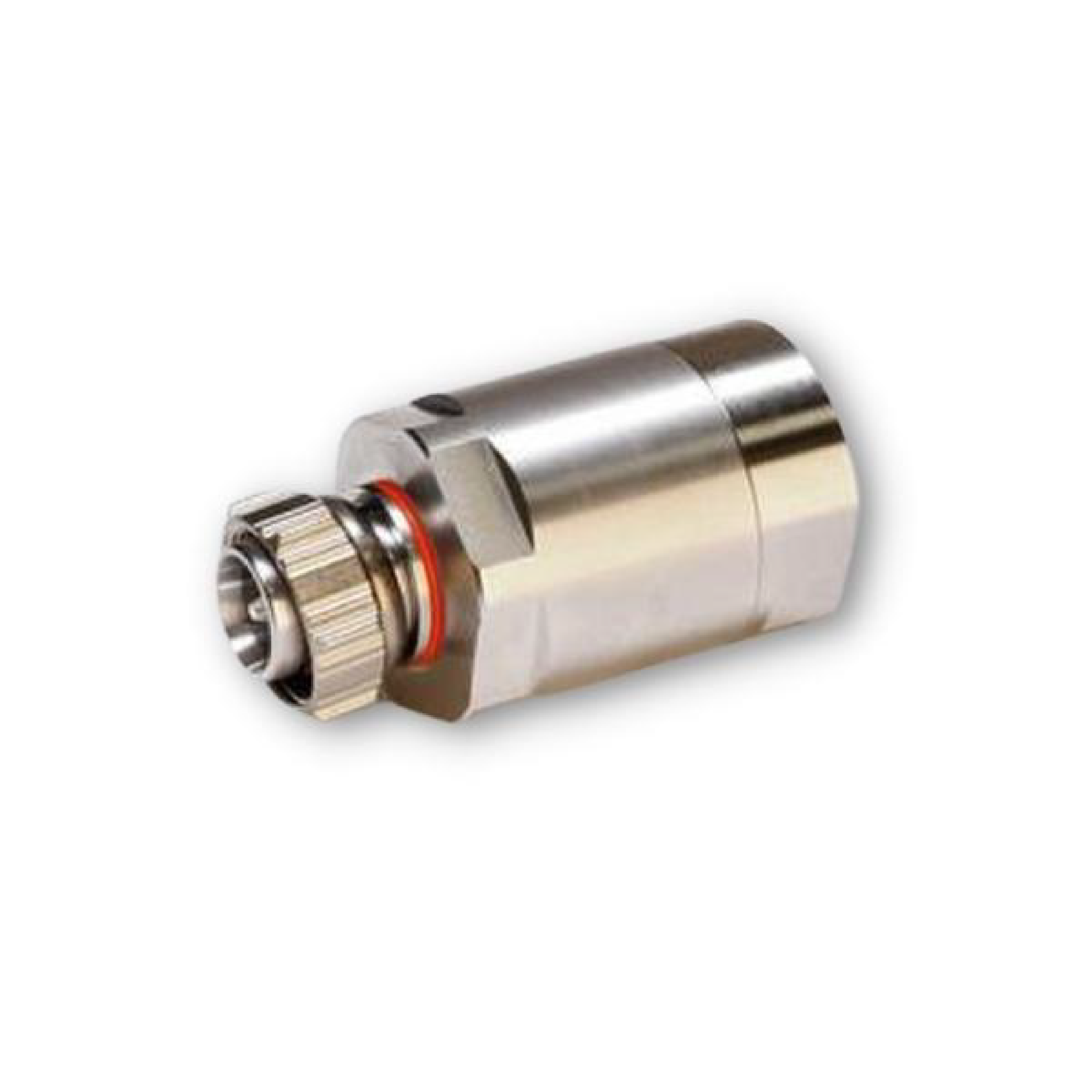

The CommScope A5HM-D is a high-quality 4.3-10 Male Connector designed specifically for 7/8'' AVA5-50 and AVA5-50FX cables. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the A5HM-D connector guarantees dependable connectivity and signal integrity.

Product Features:

• The connector has a straight body style and a straight mounting angle.
• It is designed for the AVA5-50 and AVA5-50FX cable families, with both the cable and connector having a 50-ohm impedance.
• The inner contact is captivated and has silver plating.
• This connector features a 4.3-10 Male interface.
• The outer contact is plated with trimetal.
• It is not pressurizable.
• This connector can handle a peak power of up to 40 kW.
• The attachment durability is 25 cycles.

Application Areas:

• This connector is ideal for use in telecom networks and infrastructure.
• It provides reliable signal transmission for broadcasting applications.
• It is perfect for industrial environments where robust connectivity is crucial.
• This connector ensures reliable connections in data center applications.

In the Box:

• 1x CommScope A5HM-D 4.3-10 Male Connector

Documents:

CommScope A5HM-D Connector - Datasheet CommScope D Connectors - Installation Guide

Videos:

CommScope A5HM-D D-Class 4.3-10 Connector - Installation Guide
