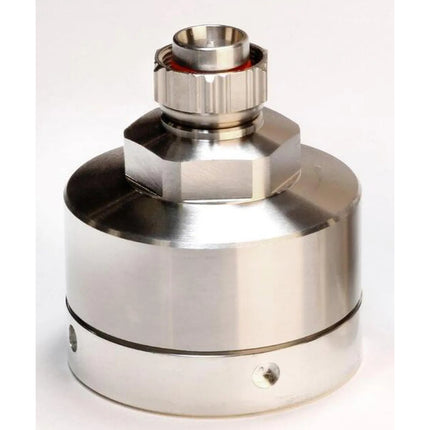

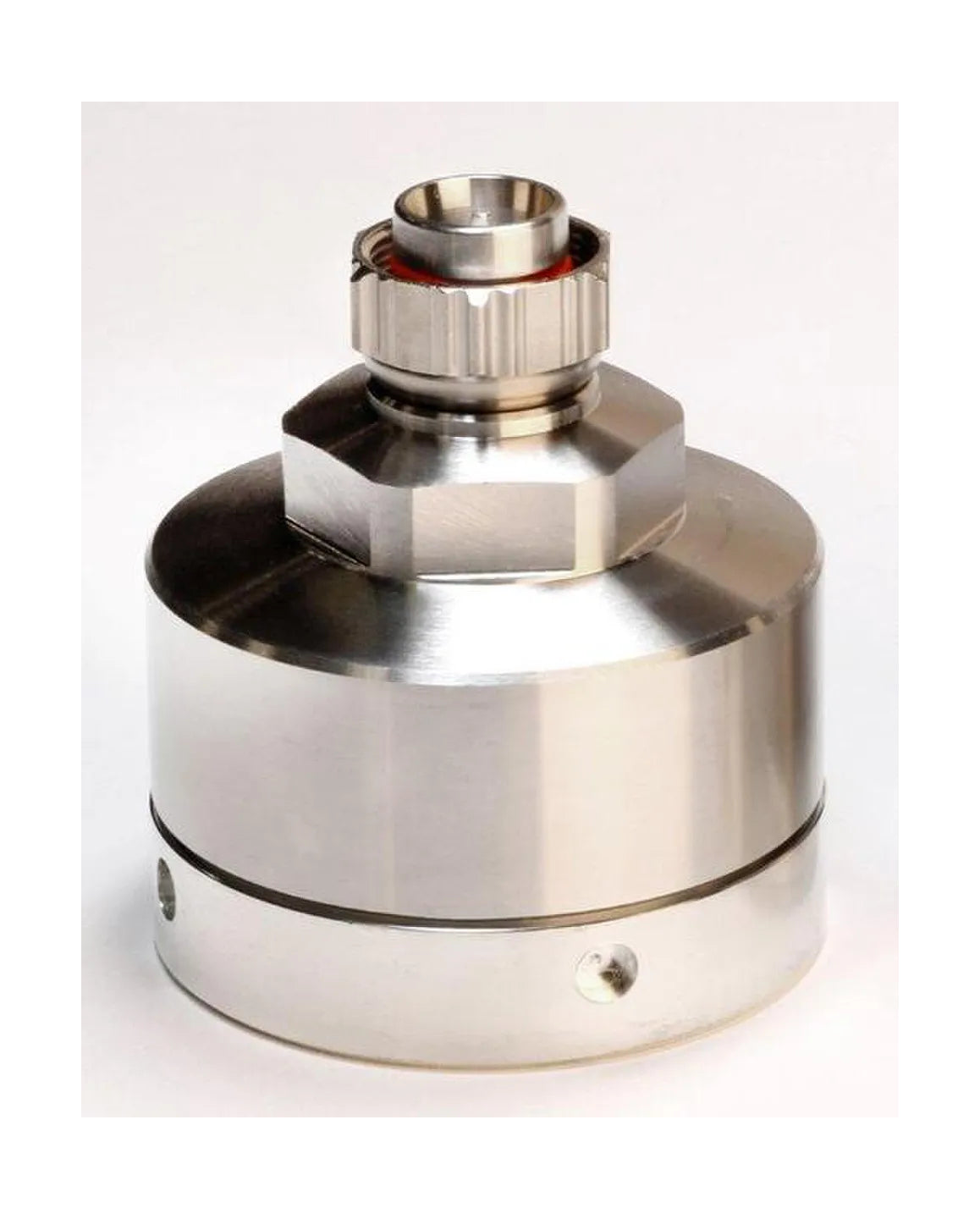

The CommScope A7HM-S 4.3-10 Male Connector is a high-quality connector designed for 1-5/8-inch AVA7-50 cable. The body style is straight, and the cable family is AVA7-50.

Product Features:

• The inner contact is captivated and plated with silver.
• The interface is a 4.3-10 Male connector with a straight mounting angle.
• The outer contact is attached by clamping and is plated with trimetal.
• The 3rd order IMD at 1800 MHz is -117 dBm, tested with two +43 dBm carriers.
• The typical insertion loss coefficient is 0.05, and the connector impedance is 50 ohms.
• The operating frequency band ranges from 0 to 2700 MHz.

Application Areas:

• Ideal for use in telecom networks and infrastructure.
• Suitable for broadcasting applications requiring reliable signal transmission.
• Perfect for industrial environments where robust connectivity is crucial.
• Ensures reliable connections in data center applications.

In the Box:

• 1 x CommScope A7HM-S 4.3-10 Male Connector

Documents:

CommScope A7HM-S Connector - Datasheet CommScope A7HM-S Connector - Installation Guide
