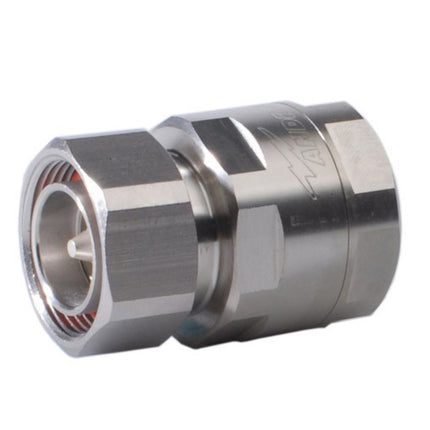

CommScope AL5DM-PSA 7-16 DIN-Male Positive Stop Connector for AL5-50 and AVA5-50 Cables

CommScope AL5DM-PSA 7-16 DIN-Male Positive Stop Connector for AL5-50 and AVA5-50 Cables

Available

Item ID:
168018504
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
AL5DM-PSA
Send Request for Quote (RFQ)
The CommScope AL5DM-PSA is a high-quality 7-16 DIN-Male Positive Stop Connector designed specifically for AL5-50 and AVA5-50 cables.
Regular price $18.55
Regular price $0.00 Sale price $18.55
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope AL5DM-PSA is a high-quality 7-16 DIN-Male Positive Stop Connector designed specifically for AL5-50 and AVA5-50 cables. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the AL5DM-PSA connector guarantees dependable connectivity and signal integrity.

Product Features:

  • This connector has a straight body style and is designed for the AL5-50 and AVA5-50 cable families.
  • The inner contact is captivated and has silver plating.
  • It features a 7-16 DIN Male interface with a straight mounting angle.
  • The outer contact is attached using a ring-flare method and has trimetal plating.
  • This connector is not pressurizable and provides an average power of 3.0 kW at 900 MHz.
  • The cable and connector impedance are both 50 ohms, and it can handle a DC test voltage of 4000 V.
  • The connector operates in the frequency band of 0 – 5200 MHz and can handle a peak power of up to 40 kW.
  • It provides shielding effectiveness of -130 dB, with a maximum RF operating voltage of 1415 V (vrms) and an attachment durability of 25 cycles.

Application Areas:

  • This connector is ideal for use in telecom networks and infrastructure.
  • It provides reliable signal transmission for broadcasting applications.
  • It is perfect for industrial environments where robust connectivity is crucial.
  • This connector ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope AL5DM-PSA 7-16 DIN-Male Positive Stop Connector

Documents:

CommScope AL5DM-PSA Connector - Datasheet CommScope 7/8 inch Positive Stop Connector - Installation Guide

Videos:

CommScope Positive Stop Connector - Installation Guide CommScope Positive Stop Connector Installation using the Auto Prep Tool
