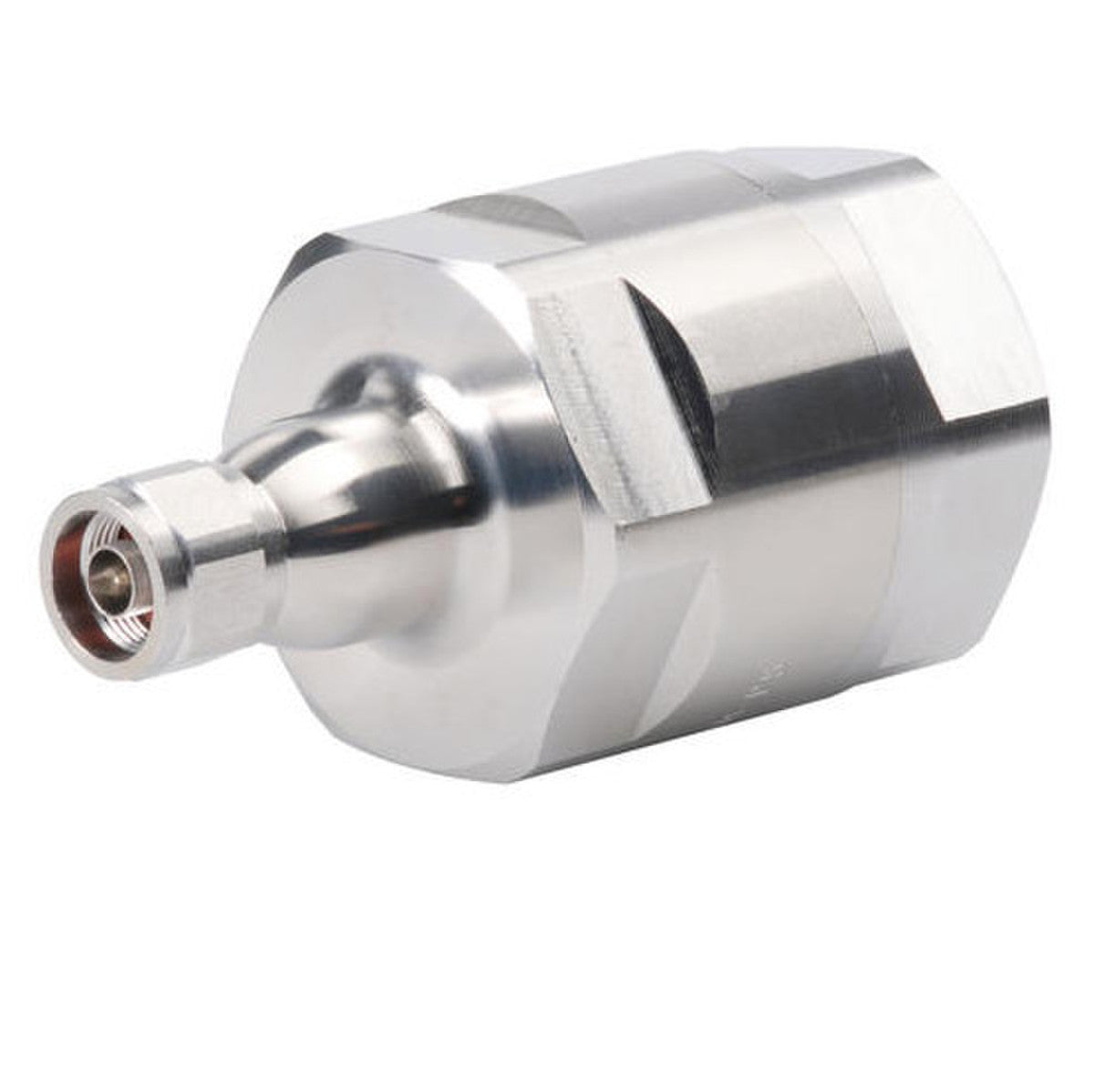

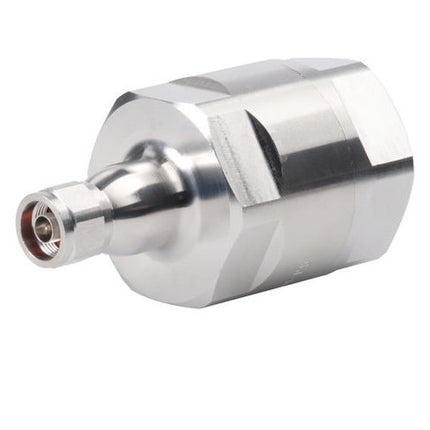

CommScope AL7NM-PSA Type-N Male Positive Stop Connector for 1-5/8'' Cable

CommScope AL7NM-PSA Type-N Male Positive Stop Connector for 1-5/8'' Cable

On backorder

Item ID:
168018509
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
AL7NM-PSA
Send Request for Quote (RFQ)
The CommScope AL7NM-PSA is a high-quality straight body style Type-N Male Positive Stop Connector designed specifically for 1-5/8'' cable.
Regular price $129.50
Regular price $0.00 Sale price $129.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope AL7NM-PSA is a high-quality Type-N Male Positive Stop Connector designed specifically for 1-5/8'' cable. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the AL7NM-PSA connector guarantees dependable connectivity and signal integrity.

Product Features:

  • The connector has a straight body style and a straight mounting angle.
  • It is designed for the 1-5/8'' cable family, with both the cable and connector having a 50-ohm impedance.
  • The inner contact is attached using a captivated method and has silver plating.
  • This connector features an N Male interface.
  • The outer contact is attached using a ring-flare method and has trimetal plating.
  • It is not pressurizable.
  • The attachment durability is 25 cycles.
  • The interface durability is 500 cycles.

Application Areas:

  • This connector is ideal for use in telecom networks and infrastructure.
  • It provides reliable signal transmission for broadcasting applications.
  • It is perfect for industrial environments where robust connectivity is crucial.
  • This connector ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope AL7NM-PSA Type-N Male Positive Stop Connector

Documents:

CommScope AL7NM-PSA Connector - Datasheet CommScope 1 5/8 Inch Positive Stop Connectors - Installation Guide

Product Specifications

MPN AL7NM-PSA
Brands CommScope
Cable supported AVA7-50
Cable type 1-5/8"
Cable type connectors AVA7-50
Centre conductor Captive, Spring finger
Component type Connector
Connector N(M)
Connector end a N (M)
Crimp set or tool CPTL7
Height 6.274
Impedance ohm 50
Inner attachment Other
GTIN/EAN 888063357152
Length 1.143
Max frequency mhz 2700
Min frequency mhz 0
Mounting angle Straight
Prep toolset CPT-158U, CPTL-7
Width 6.274
