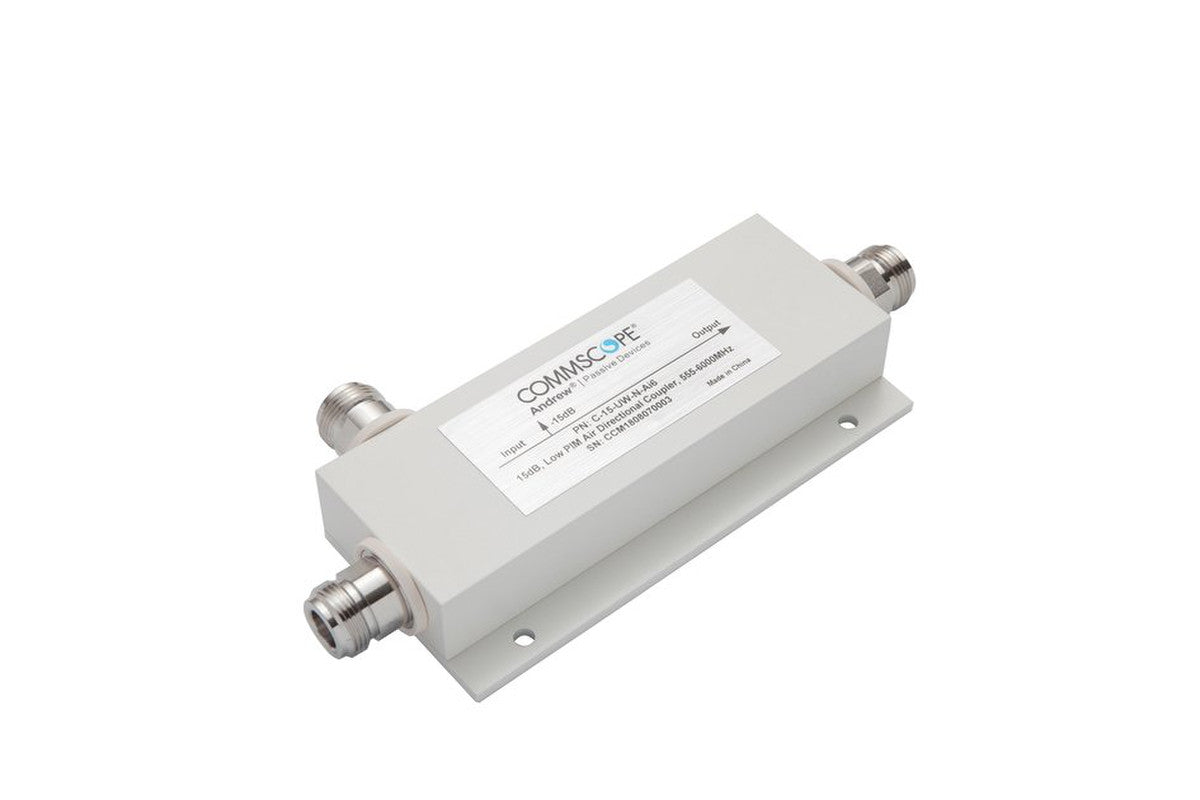

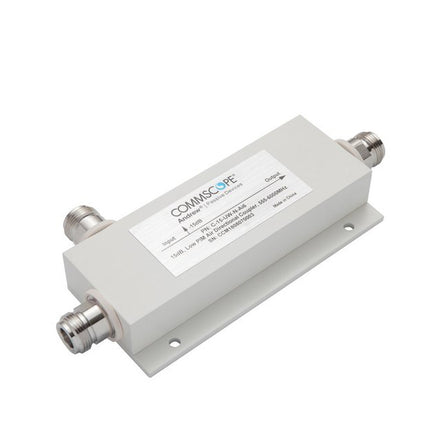

CommScope C-15-UW-N-AI6 Air Directional Coupler, 555-6000 MHz, 15 dB, N-Female

CommScope C-15-UW-N-AI6 Air Directional Coupler, 555-6000 MHz, 15 dB, N-Female

Sold out

Item ID:
168021483
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
C-15-UW-N-AI6
Discount Offers
CommScope C-15-UW-N-AI6 Air Directional Coupler is designed for efficient RF signal distribution across a broad frequency range of 555-6000 MHz with a 15 dB coupling value.
Price on application
Open Request for Quote (RFQ) Form View full details

Product Description

CommScope C-15-UW-N-AI6 Air Directional Coupler is designed for efficient RF signal distribution across a broad frequency range of 555-6000 MHz with a 15 dB coupling value.

Product Features:

  • Device Type: Air Directional Coupler for precise RF signal management.
  • Frequency Range: 555-6000 MHz for wideband RF applications.
  • Coupling Value: 15 dB for optimal signal attenuation.
  • Interface: N-Female connector for secure and stable connections.
  • Inner Contact Plating: Silver-plated for excellent conductivity.
  • Outer Contact Plating: Trimetal-plated for durability and corrosion resistance.
  • Color: White for a sleek and professional finish.

Application Areas:

  • Distributed Antenna Systems (DAS).
  • Cellular network applications, including LTE, 5G, and legacy networks.
  • Public safety and private wireless communication networks.
  • RF signal distribution in indoor and outdoor environments.

In the Box:

  • 1 × CommScope C-15-UW-N-AI6 Air Directional Coupler.

Documents:

CommScope Air Directional Coupler - Datasheet

Product Specifications

MPN C-15-UW-N-AI6
Brands CommScope
Colour White
Component type Coupler
Connector N(F)
Coupled loss db 15
Frequency band UHF, Cellular
Height 2.2
Impedance 50 Ohm
Inner contact plating Silver
GTIN/EAN 646444827461
Length 15.9
Outer contact plating Trimetal
Power w 200
Technology type 5G, 4G, UMTS
Torque nm 4.5
Vswr at frequency band 1.25:1 @ 2700–3800 MHz, 1.2:1 @ 555–2700 MHz, 1.3:1 @ 3800–6000 MHz
Width 7.2
