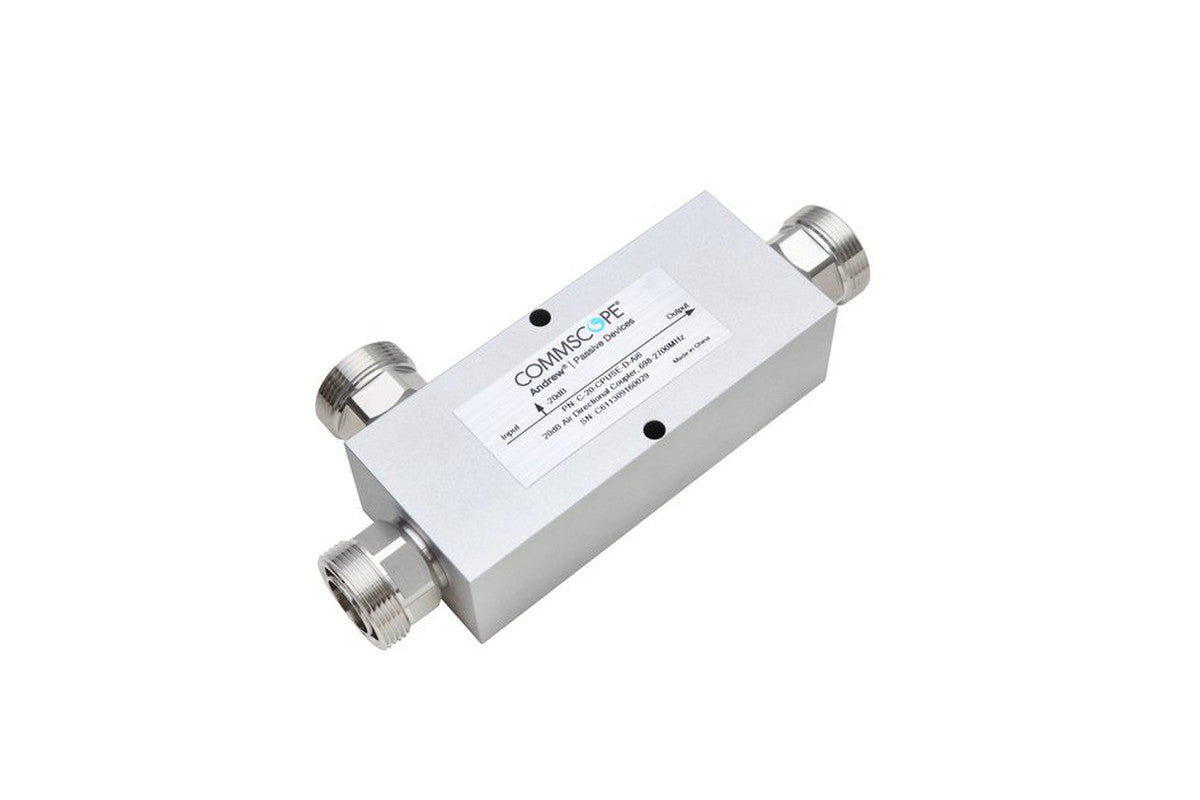

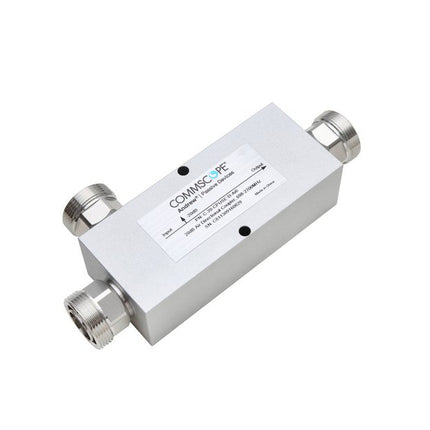

CommScope C-20-CPUSE-D-AI6 Air Directional Coupler, 555-2700 MHz, 20 dB, 7-16 DIN-Female

CommScope C-20-CPUSE-D-AI6 Air Directional Coupler, 555-2700 MHz, 20 dB, 7-16 DIN-Female

Sold out

Item ID:
168021482
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
C-20-CPUSE-D-AI6
Send Request for Quote (RFQ) Discount Offers
CommScope C-20-CPUSE-D-AI6 Air Directional Coupler is designed for efficient RF signal distribution across a broad frequency range of 555-2700 MHz with a 20 dB coupling value.
Regular price $566.00
Regular price $0.00 Sale price $566.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

CommScope C-20-CPUSE-D-AI6 Air Directional Coupler is designed for efficient RF signal distribution across a broad frequency range of 555-2700 MHz with a 20 dB coupling value.

Product Features:

  • Device Type: Air Directional Coupler for precise RF signal management.
  • Frequency Range: 555-2700 MHz for wideband RF applications.
  • Coupling Value: 20 dB for optimal signal attenuation.
  • Interface: 7-16 DIN Female connector for secure and stable connections.
  • Inner Contact Plating: Silver-plated for excellent conductivity.
  • Outer Contact Plating: Trimetal-plated for durability and corrosion resistance.
  • Color: Silver for a sleek and professional finish.

Application Areas:

  • Distributed Antenna Systems (DAS).
  • Cellular network applications, including LTE, 5G, and legacy networks.
  • Public safety and private wireless communication networks.
  • RF signal distribution in indoor and outdoor environments.

In the Box:

  • 1 × CommScope C-20-CPUSE-D-AI6 Air Directional Coupler.

Documents:

CommScope Air Directional Coupler - Datasheet

Product Specifications

MPN C-20-CPUSE-D-AI6
Brands CommScope
Colour Silver
Component type Coupler
Connector 7-16 DIN(F)
Coupled loss db 20
Frequency band UHF, Cellular
Height 3.6
Impedance 50 Ohm
Inner contact plating Silver
GTIN/EAN 646444690133
Length 16.9
Outer contact plating Trimetal
Power w 300
Return loss db 20.8
Technology type 5G, 4G, UMTS
Vswr 1.2
Width 7.45
