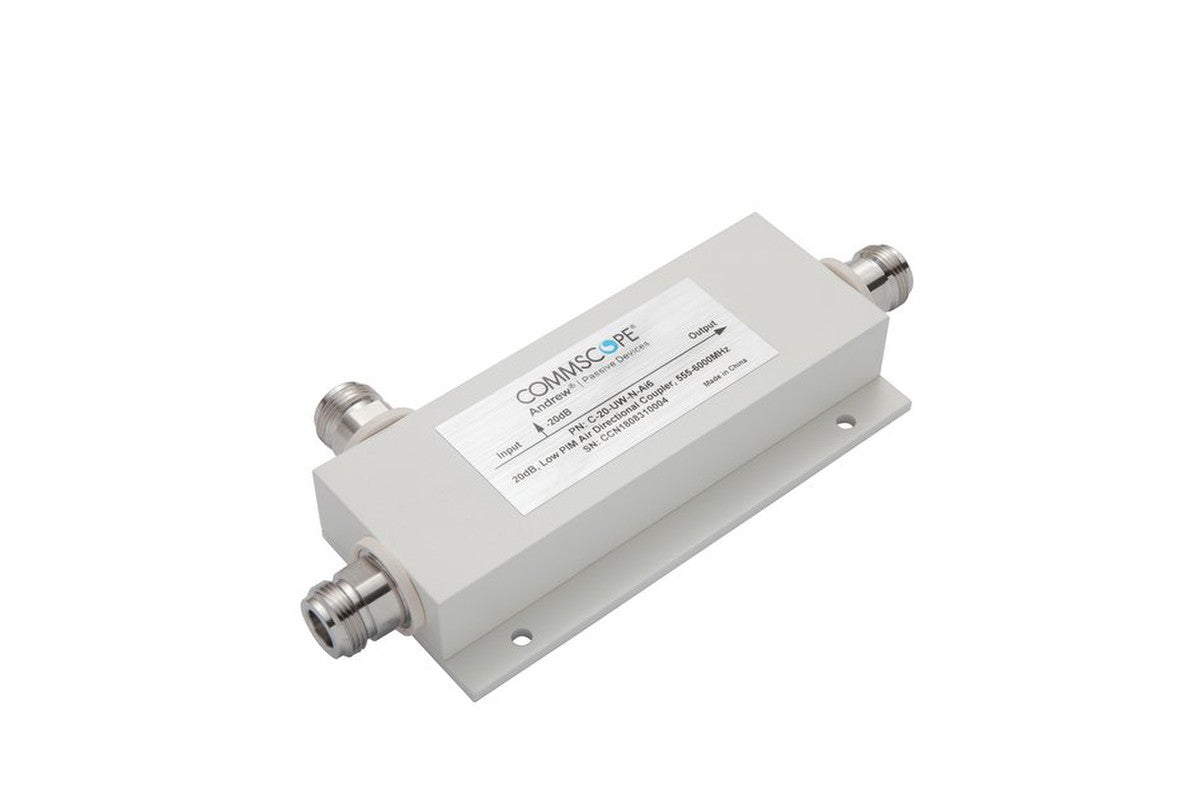

CommScope C-20-UW-N-AI6 Air Directional Coupler, 555-6000 MHz, 20 dB, N-Female

CommScope C-20-UW-N-AI6 Air Directional Coupler, 555-6000 MHz, 20 dB, N-Female

Sold out

Item ID:
168021479
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
C-20-UW-N-AI6
Discount Offers

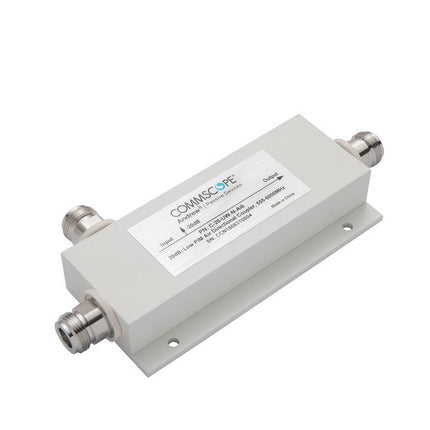

CommScope C-20-UW-N-AI6 Air Directional Coupler is a high-performance RF component designed for precise signal distribution across a 555-6000 MHz range.
Price on application
Open Request for Quote (RFQ) Form View full details

Product Description

CommScope C-20-UW-N-AI6 Air Directional Coupler is a high-performance RF component designed for precise signal distribution across a broad frequency range of 555-6000 MHz. With a 20 dB coupling value, this coupler ensures low insertion loss, high isolation, and consistent performance in both indoor and outdoor environments.

Product Features:

  • The CommScope Directional Coupler is designed for efficient signal splitting.
  • It delivers optimal performance across a 555–6000 MHz frequency range.
  • With a coupling value of 20 dB, it provides precise signal attenuation and balanced distribution.
  • The device features a N Female connector for secure, stable, and reliable connections.
  • The inner contact is silver-plated, while the outer contact is trimetal-plated.
  • Finished in white, it presents a clean, professional design suitable for high-performance installations.

Application Areas:

  • Distributed Antenna Systems (DAS).
  • Cellular network applications, including LTE, 5G, and legacy networks.
  • Public safety and private wireless communication networks.
  • Indoor and outdoor RF signal distribution systems.

In the Box:

  • 1 × CommScope C-20-UW-N-AI6 Air Directional Coupler.

Documents:

CommScope Air Directional Coupler - Datasheet

Product Specifications

MPN C-20-UW-N-AI6
Brands CommScope
Colour White
Component type Directional Coupler
Connector N (F)
Coupled loss db 20
Frequency band UHF, Cellular
Height 2.2
Impedance ohm 50
Inner contact plating Silver
GTIN/EAN 888063871788
Length 15.9
Operating temperature c -35 to +85
Outer contact plating Trimetal
Power w 200
Technology type 5G, 4G, UMTS
Torque nm 4.5
Vswr at frequency band 1.25:1 @ 2700–3800 MHz, 1.2:1 @ 555–2700 MHz, 1.3:1 @ 3800–6000 MHz
Width 7.2
