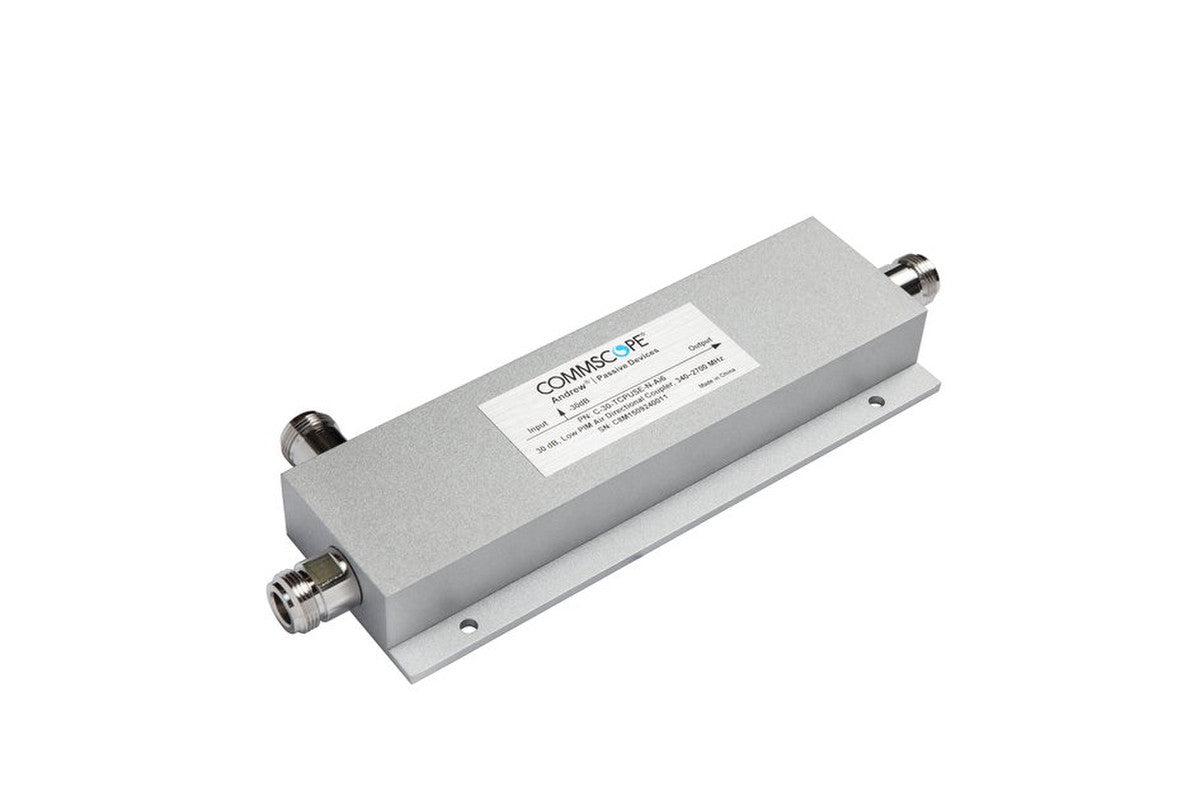

CommScope C-30-TCPUSE-N-AI6 Low PIM Directional Coupler, 340-2700 MHz, 30 dB, N-Female

CommScope C-30-TCPUSE-N-AI6 Low PIM Directional Coupler, 340-2700 MHz, 30 dB, N-Female

Sold out

Item ID:
168021478
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
C-30-TCPUSE-N-AI6
Send Request for Quote (RFQ) Discount Offers

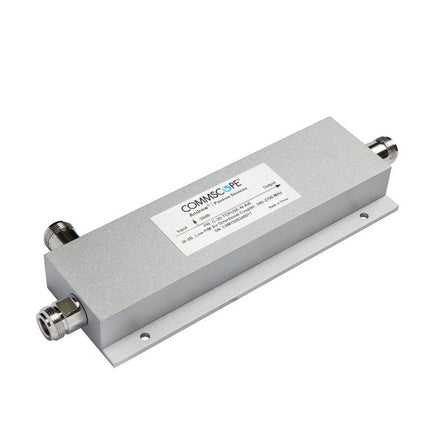

CommScope C-30-TCPUSE-N-AI6 Directional Coupler is a high-performance RF component designed for accurate signal distribution across a 340-2700 MHz range.
Regular price $184.50
Regular price $0.00 Sale price $184.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

CommScope C-30-TCPUSE-N-AI6 Low PIM Directional Coupler is a high-performance RF component designed for accurate signal distribution across a wide frequency range of 340-2700 MHz. With a 30 dB coupling value, this coupler ensures low insertion loss, high isolation, and consistent performance for indoor and outdoor RF applications.

Product Features:

  • The CommScope Directional Coupler is designed for efficient signal distribution.
  • It delivers optimal performance across a 340–2700 MHz frequency range.
  • With a coupling value of 30 dB, it provides precise signal attenuation and balanced distribution.
  • The device features a N Female connector for secure, stable, and reliable connections.
  • The inner contact is silver-plated, while the outer contact is trimetal-plated.
  • Finished in silver, it presents a clean, professional design suitable for high-performance installations.

Application Areas:

  • Distributed Antenna Systems (DAS) and in-building wireless solutions.
  • Cellular network coverage enhancement (LTE, 5G, and legacy systems).
  • Public safety and private network communication infrastructure.
  • Indoor and outdoor RF signal distribution.

In the Box:

  • 1 × CommScope C-30-TCPUSE-N-AI6 Low PIM Directional Coupler.

Documents:

CommScope Directional Coupler - Datasheet

Product Specifications

MPN C-30-TCPUSE-N-AI6
Brands CommScope
Colour Silver
Component type Directional Coupler
Connector N (F)
Coupled loss db 30
Height 4.5
Impedance ohm 50
Inner contact plating Silver
Length 18
Operating temperature c -25 to +85
Outer contact plating Trimetal
Power w 200
Return loss db 20.8
Technology type 5G, 4G, UMTS
Vswr 1.2
Width 9.8
