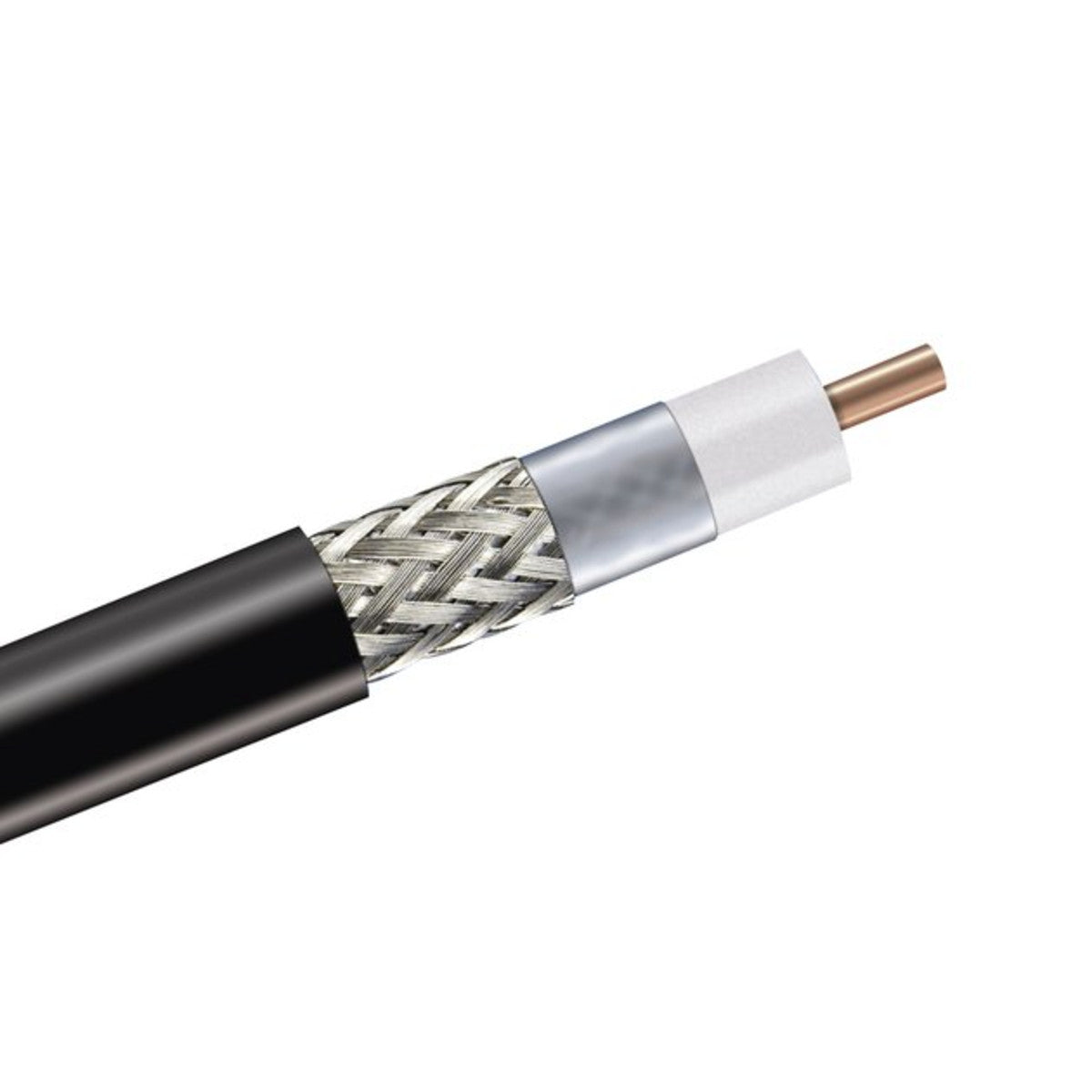

CommScope CNT-400 Coaxial Cable, 50 Ohm, 30-6000 MHz - Per meter

CommScope CNT-400 Coaxial Cable, 50 Ohm, 30-6000 MHz - Per meter

Available

Item ID:
168021415
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CNT-400
Send Request for Quote (RFQ)
CommScope CNT-400 is a top-rated cable supporting wide frequency range of 30 MHz to 6000 MHz, making it ideal for 4G & 5G-sub 6 GHz  applications. This cable is very popular for it's flexibility which makes installation easy, for example using with indoor repeaters like Nextivity Cel-Fi GO G51. Available in 50m, 100m and 500m lengths.
Regular price $6.75
Regular price $0.00 Sale price $6.75
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

CommScope CNT-400 is a top-rated cable supporting wide frequency range of 30 MHz to 6000 MHz, making it ideal for 4G & 5G-sub 6 GHz applications. This cable is very popular for its flexibility which makes installation easy, for example using with indoor repeaters like Nextivity Cel-Fi GO G51.

Product Features:

  • The braid coverage is 90% and the cable type is CNT-400 with a black jacket.
  • The nominal size is 0.400 in and the cable impedance is 50 ohm.
  • The cable can handle a DC test voltage of 2500 V and the jacket spark test voltage is 4000 V.
  • The maximum frequency is 16.2 GHz and the operating frequency band is 30 – 6000 MHz.
  • The peak power is 16 kW and the shielding effectiveness is 90 dB.
  • The braid material is tinned copper, and the dielectric material is foam PE.
  • The jacket material is non-halogenated, fire-retardant polyolefin.
  • The inner conductor is made of copper-clad aluminum wire, and the shield tape material is aluminum.

Application Areas:

  • This cable is ideal for use in telecom networks and infrastructure.
  • It provides reliable signal transmission for broadcasting applications.
  • It is perfect for industrial environments where robust connectivity is crucial.
  • This cable ensures reliable connections in data center applications.

In the Box:

  • CommScope CNT-400 Coaxial Cable - Custom length

Documents:

CommScope CNT-400 Cable - Datasheet
