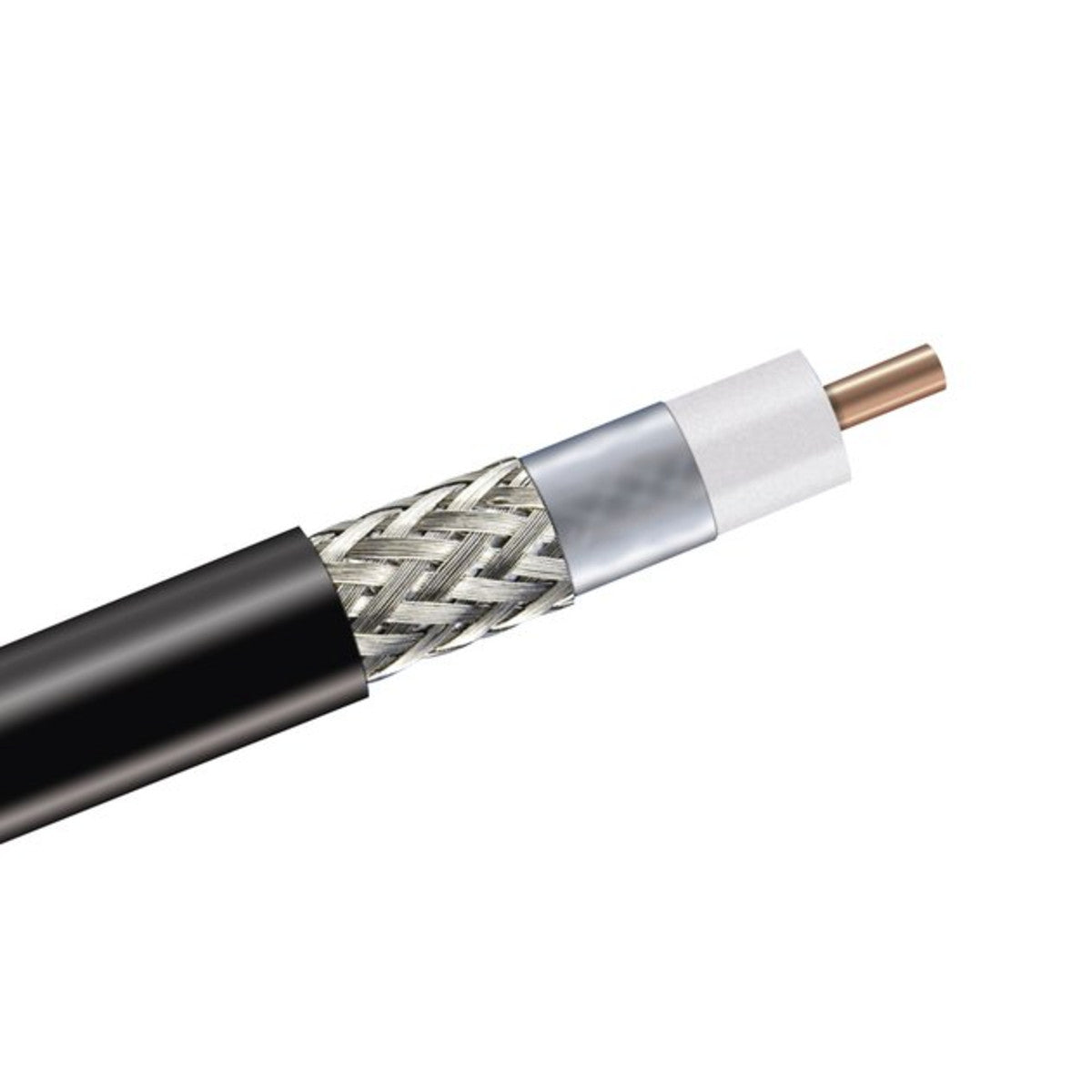

CommScope CNT-400 Coaxial Cable Reel, 50 Ohm, 30-6000 MHz - 50m

CommScope CNT-400 Coaxial Cable Reel, 50 Ohm, 30-6000 MHz - 50m

Available

Item ID:
168028571
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CNT-400
Send Request for Quote (RFQ)
CommScope CNT-400 is a top-rated cable supporting wide frequency range of 30 MHz to 6000 MHz, making it ideal for 4G & 5G-sub 6 GHz  applications. This cable is very popular for it's flexibility which makes installation easy, for example using with indoor repeaters like Nextivity Cel-Fi GO G51. Available in 50m, 100m and 500m lengths.
Regular price $234.50
Regular price $0.00 Sale price $234.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

CommScope CNT-400 is a top-rated cable supporting wide frequency range of 30 MHz to 6000 MHz, making it ideal for 4G & 5G-sub 6 GHz applications. This cable is very popular for its flexibility which makes installation easy, for example using with indoor repeaters like Nextivity Cel-Fi GO G51.

Product Features:

  • The braid coverage is 90% and the cable type is CNT-400.
  • This cable has a black jacket with a diameter over the dielectric of 7.24 mm and a diameter over the jacket of 10.29 mm.
  • The inner conductor outer diameter is 2.74 mm and the outer conductor outer diameter is 8.08 mm.
  • The nominal size is 0.400 in and the cable impedance is 50 ohms.
  • The jacket spark test voltage (rms) is 4000 V and the maximum frequency is 16.2 GHz.
  • The operating frequency band ranges from 30 to 6000 MHz and the peak power handling capacity is 16 kW.
  • The shielding effectiveness is 90 dB and the velocity is 85%.
  • The attenuation ranges from 2.49 dB/100m at 30 MHz to 36.42 dB/100m at 6000 MHz.

Application Areas:

  • The cable is ideal for use in telecom networks and infrastructure.
  • This product is suitable for broadcasting applications requiring high-quality signal transmission.
  • It is perfect for industrial environments where robust connectivity is crucial.
  • The cable ensures reliable connections in data center applications.
  • This product is applicable in outdoor installations where durable and efficient cable performance is essential.

In the Box:

  • 50m CommScope CNT-400 Coaxial Cable Reel, 50 Ohm, 30-6000 MHz

Documents:

CommScope CNT-400 Cable - Datasheet
