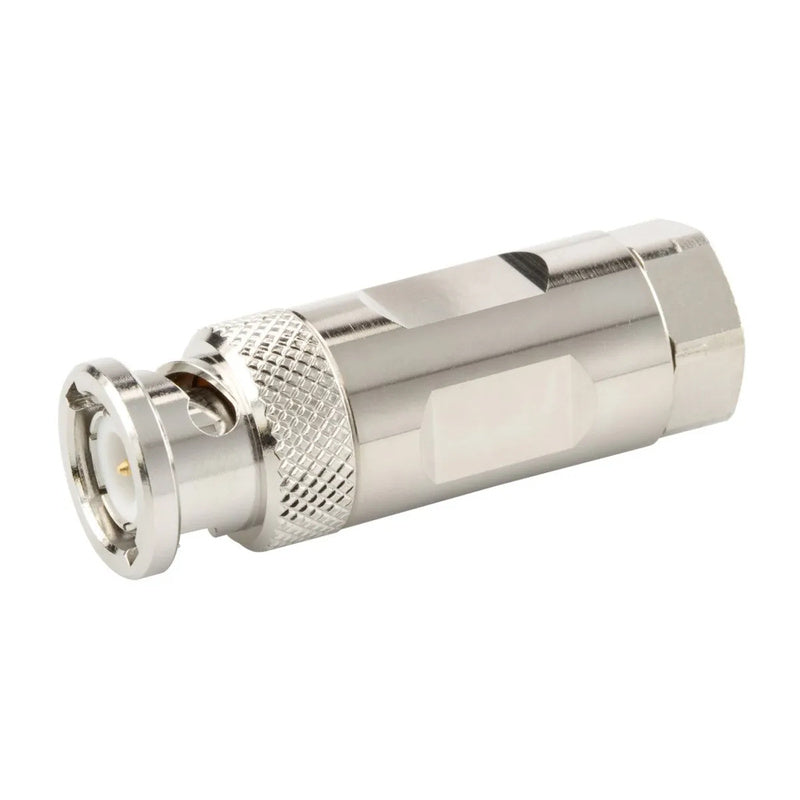

CommScope F1TBM-C BNC-Male Connector for 1/4'' FSJ1-50A Cable

CommScope F1TBM-C BNC-Male Connector for 1/4'' FSJ1-50A Cable

Available

Item ID:
168018434
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
F1TBM-C
Send Request for Quote (RFQ)
CommScope F1TBM-C is a high-quality BNC-Male Connector designed for 1/4'' FSJ1-50A cable. This connector ensures reliable and efficient performance.
Regular price $34.70
Regular price $0.00 Sale price $34.70
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope F1TBM-C is a high-quality straight BNC-Male Connector designed specifically for 1/4'' FSJ1-50A cable.  The inner contact is captivated and plated with gold, while the outer contact is attached by self-clamping and plated with trimetal. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers.

Product Features:

  • The interface is a BNC Male connector with a straight mounting angle, and it is not pressurizable.
  • The average power at 900 MHz is 0.4 kW, with a peak power of 5 kW.
  • Both the cable and connector have an impedance of 50 ohms.
  • The DC test voltage is 1500 V, with a maximum RF operating voltage of 500 V (vrms).
  • The maximum inner contact resistance is 2.5 mOhm, and the maximum outer contact resistance is 1 mOhm.
  • The minimum insulation resistance is 5000 MOhm.
  • The operating frequency band ranges from 0 to 4000 MHz and shielding effectiveness is -110 dB.
  • The connector retention tensile force is 449.27 N (101 lbf).
  • The coupling nut proof torque is 0.6 Nm and the retention force is 445 N.

Application Areas:

  • Ideal for use in telecom networks and infrastructure.
  • Suitable for broadcasting applications requiring reliable signal transmission.
  • Perfect for industrial environments where robust connectivity is crucial.
  • Ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope F1TBM-C BNC-Male Connector

Documents:

CommScope F1TBM-C Connector - Datasheet CommScope F1TBM-C Connector - Installation Guide

Videos:

CommScope F1TBM BNC Male Connector - Installation Guide

Product Specifications

MPN F1TBM-C
Brands CommScope
Cable supported FSJ1-50A
Cable type FSJ1-50A
Cable type connectors FSJ1-50
Centre conductor Captive
Component type Connector
Connector BNC(M)
Connector end a BNC (M)
Crimp set or tool MCPT-1412
Height 1.448
Impedance ohm 50
Inner attachment Other
GTIN/EAN 646444617253
Length 4.343
Max frequency mhz 4000
Min frequency mhz 0
Mounting angle Straight
Prep toolset MCPT-1412
Width 1.448
