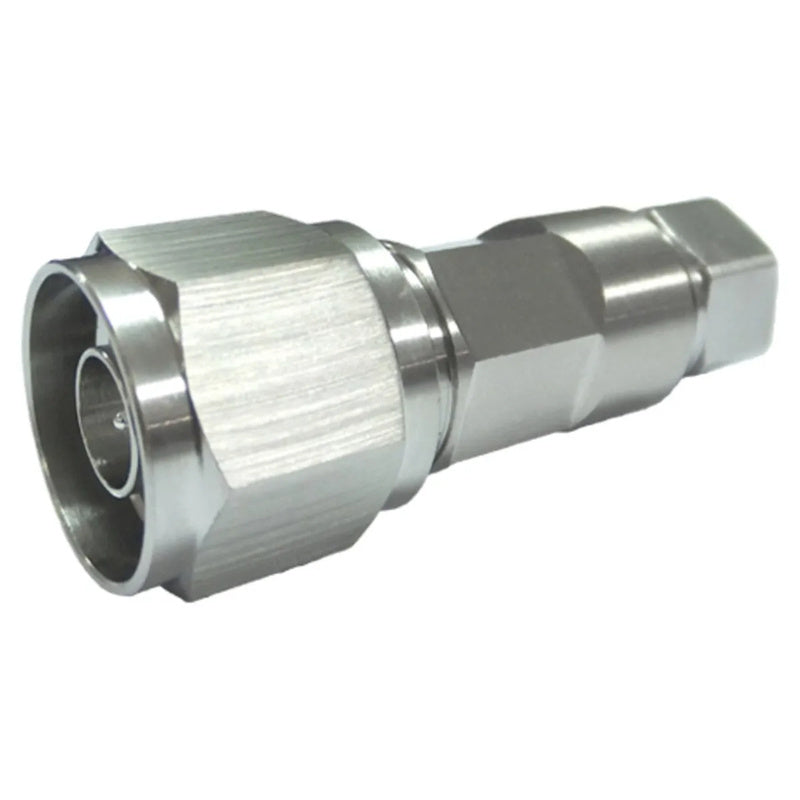

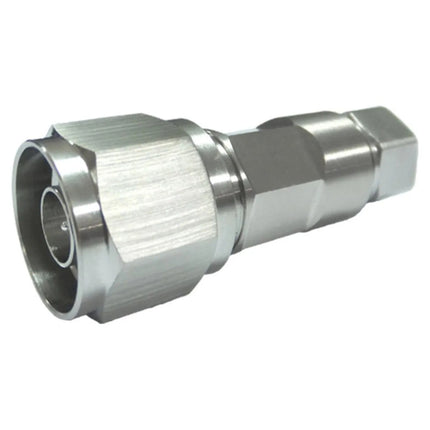

CommScope F1TNM-HC N-Male Connector for 1/4'' FSJ1-50A Cable

CommScope F1TNM-HC N-Male Connector for 1/4'' FSJ1-50A Cable

Available

Item ID:
168018436
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
F1TNM-HC
Send Request for Quote (RFQ)
CommScope F1TNM-HC is a high-quality N-Male Connector designed for 1/4'' FSJ1-50A cable. This connector ensures reliable and efficient performance.
Regular price $32.55
Regular price $0.00 Sale price $32.55
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope F1TNM-HC is a high-quality straight N-Male Connector designed specifically for 1/4'' FSJ1-50A cable. The inner contact is captivated and plated with silver, while the outer contact is attached by self-clamping and plated with trimetal. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the F1TNM-HC connector guarantees dependable connectivity and signal integrity.

Product Features:

  • The interface is an N Male connector with a straight mounting angle, and it is not pressurizable.
  • The 3rd order IMD at 910 MHz is -116 dBm, tested with two +43 dBm carriers.
  • The average power at 900 MHz is 0.4 kW, with a peak power of 6.4 kW.
  • Both the cable and connector have an impedance of 50 ohms.
  • The DC test voltage is 1600 V, with a maximum RF operating voltage of 565 V (vrms).
  • The maximum inner contact resistance is 1 mOhm, and the maximum outer contact resistance is 0.25 mOhm.
  • The minimum insulation resistance is 5000 MOhm.
  • The operating frequency band ranges from 0 to 6000 MHz and the shielding effectiveness is -110 dB.
  • The immersion depth is 1 m, and the test is conducted while mated, following IEC 60529:2001, IP68.

Application Areas:

  • Ideal for use in telecom networks and infrastructure.
  • Suitable for broadcasting applications requiring reliable signal transmission.
  • Perfect for industrial environments where robust connectivity is crucial.
  • Ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope F1TNM-HC N-Male Connector

Documents:

CommScope F1TNM-HC Connector - Datasheet CommScope F1TNM-HC Connector - Installation Guide

Videos:

CommScope F1TNM-HC N Male Connector - Installation Guide
