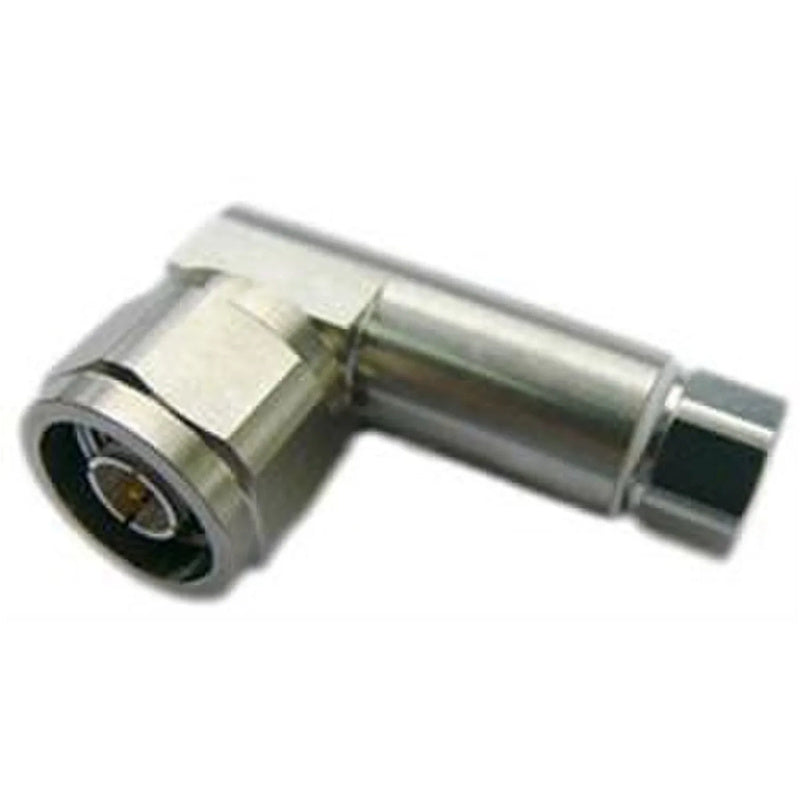

The CommScope F1TNR-HC is a high-quality Right-Angle N-Male Connector designed specifically for 1/4" FSJ1-50A cable. The inner contact is captivated and plated with gold, while the outer contact is attached by self-clamping and plated with trimetal. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers.

Product Features:

• The interface is an N Male connector with a right-angle mounting, and it is not pressurizable.
• The 3rd order IMD at 910 MHz is -112 dBm, tested with two +43 dBm carriers.
• The average power at 900 MHz is 0.4 kW, with a peak power of 6.4 kW.
• Both the cable and connector have an impedance of 50 ohms.
• The DC test voltage is 1600 V, with a maximum RF operating voltage of 565 V (vrms).
• The maximum inner contact resistance is 1 mOhm, and the maximum outer contact resistance is 0.25 mOhm.
• The minimum insulation resistance is 5000 MOhm.
• The operating frequency band ranges from 0 to 6000 MHz and the shielding effectiveness is -110 dB.
• The immersion depth is 1 m, and the test is conducted while mated.

Application Areas:

• Ideal for use in telecom networks and infrastructure.
• Suitable for broadcasting applications requiring reliable signal transmission.
• Perfect for industrial environments where robust connectivity is crucial.
• Ensures reliable connections in data center applications.

In the Box:

• 1x CommScope F1TNR-HC Right Angle N-Male Connector

Documents:

CommScope F1TNR-HC Connector - Datasheet CommScope F1TNR-HC Connector - Installation Guide

Videos:

CommScope F1TNM-HC N Male Connector - Installation Guide
