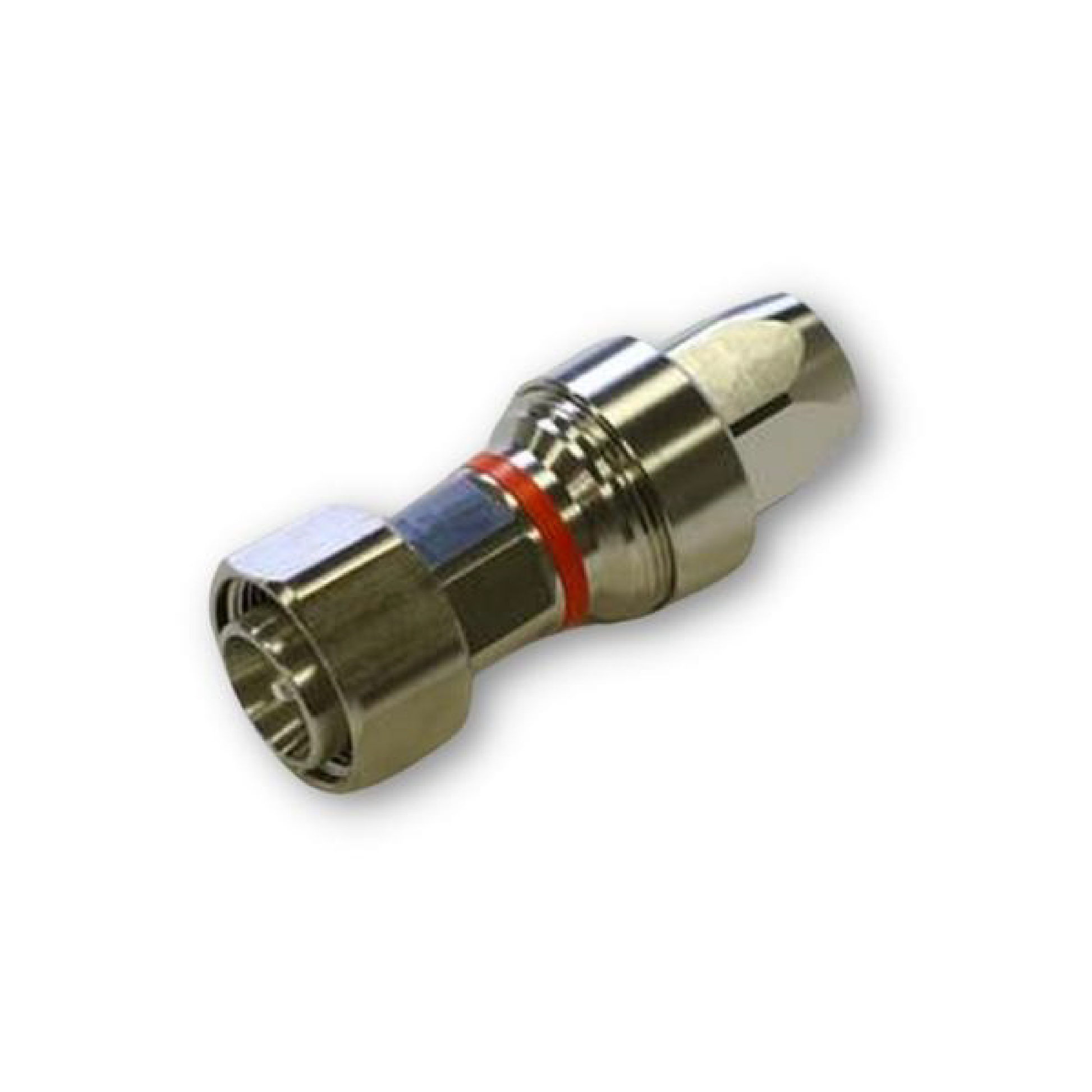

The CommScope F4HM-D is a high-quality straight 4.3-10 Male Connector designed specifically for 1/2'' FSJ4-50B cable. The inner contact is captivated, and it has silver plating on the inner contact while the outer contact is attached using a crush-flare method and has trimetal plating on the outer contact. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the F4HM-D connector guarantees dependable connectivity and signal integrity.

Product Features:

• This connector provides a 3rd order IMD at frequency of -116 dBm at 910 MHz.
• It has a typical insertion loss coefficient of 0.05 and it provides an average power of 600.0 W at 900 MHz.
• The cable impedance is 50 ohms and can handle a DC test voltage of 2500 V.
• The maximum inner contact resistance is 0.8 mOhm and minimum insulation resistance of 5000 MOhm.
• This connector operates in the frequency band of 0 - 7500 MHz and maximum RF operating voltage is 884 V (vrms).
• The maximum outer contact resistance is 1.5 mOhm. and it can handle a peak power of up to 22.5 kW.
• It provides shielding effectiveness of -110 dB and attachment durability is 25 cycles.
• The connector retention tensile force is 889.64 N and connector retention torque is 5.42 N-m.
• It has an immersion depth of 1 m and test is conducted with the connector mated.

Application Areas:

• This connector is ideal for use in telecom networks and infrastructure.
• It provides reliable signal transmission for broadcasting applications.
• It is perfect for industrial environments where robust connectivity is crucial.
• This connector ensures reliable connections in data center applications.

In the Box:

• 1x CommScope F4HM-D 4.3-10 Male Connector

Documents:

CommScope F4HM-D Connector - Datasheet CommScope F4HM-D Connector - Installation Guide

Videos:

FSJ4-50B Series Version 2 Connector Installation using an Auto Prep Tool FSJ4-50B Series Version 2 Connector Installation using a Manual Prep Tool
