CommScope F4NR-HC Right Angle N-Male Connector for 1/2'' FSJ4-50B Cable

CommScope F4NR-HC Right Angle N-Male Connector for 1/2'' FSJ4-50B Cable

Available

Item ID:
168018443
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
F4NR-HC
Send Request for Quote (RFQ)

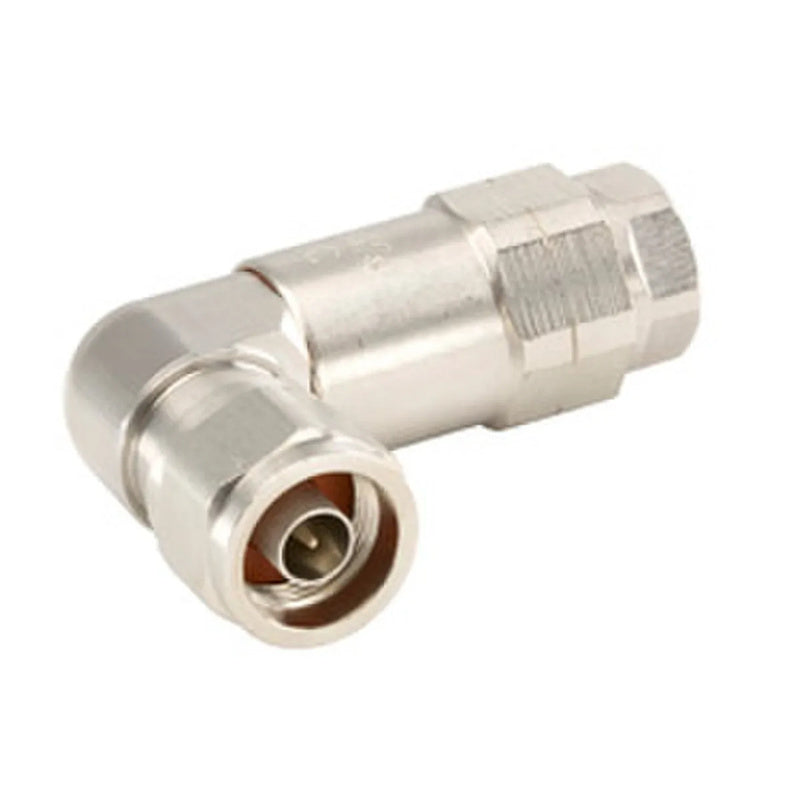

The CommScope F4NR-HC is a high-quality right-angle N-Male not pressurizable Connector designed specifically for 1/2'' FSJ4-50B cable.
Regular price $48.85
Regular price $0.00 Sale price $48.85
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope F4NR-HC is a high-quality right-angle N-Male Connector designed specifically for 1/2'' FSJ4-50B cable. The inner contact is captivated, and it has gold and silver plating on the inner contact while the outer contact is attached using a self-flare method and has trimetal plating on the outer contact. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the F4NR-HC connector guarantees dependable connectivity and signal integrity.

Product Features:

  • This connector is not pressurizable and provides a 3rd order IMD at frequency of -116 dBm at 910 MHz.
  • It has a typical insertion loss coefficient of 0.05 and it provides an average power of 0.6 kW at 900 MHz.
  • The cable impedance is 50 ohms and can handle a DC test voltage of 2000 V.
  • The maximum inner contact resistance is 2 mOhm and minimum insulation resistance of 5000 MOhm.
  • This connector operates in the frequency band of 0 – 10200 MHz.
  • The maximum outer contact resistance is 0.3 mOhm and it can handle a peak power of up to 10 kW.
  • The maximum RF operating voltage is 707 V (vrms) and it provides shielding effectiveness of -110 dB.
  • The connector retention tensile force is 444.82 N and connector retention torque is 5.42 N-m.
  • It has an immersion depth of 1 m and test is conducted with the connector unmated.

Application Areas:

  • This connector is ideal for use in telecom networks and infrastructure.
  • It provides reliable signal transmission for broadcasting applications.
  • It is perfect for industrial environments where robust connectivity is crucial.
  • This connector ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope F4NR-HC Right Angle N-Male Connector

Documents:

CommScope F4NR-HC Connector - Datasheet CommScope F4NR-HC Connector - Installation Guide

Videos:

FSJ4-50B Series Version 2 Connector Installation using an Auto Prep Tool FSJ4-50B Series Version 2 Connector Installation using a Manual Prep Tool

Product Specifications

MPN F4NR-HC
Brands CommScope
Cable supported FSJ4-50B
Cable type FSJ4-50B
Cable type connectors FXL780
Centre conductor Captive
Component type Connector
Connector N(M)
Connector end a N (M)
Height 4.65
Impedance ohm 50
Inner attachment Other
GTIN/EAN 888063641657
Length 6.38
Max frequency mhz 10200
Min frequency mhz 0
Mounting angle Right Angle
Prep toolset MCPT-1412, CPT-F4B
Width 2.44
