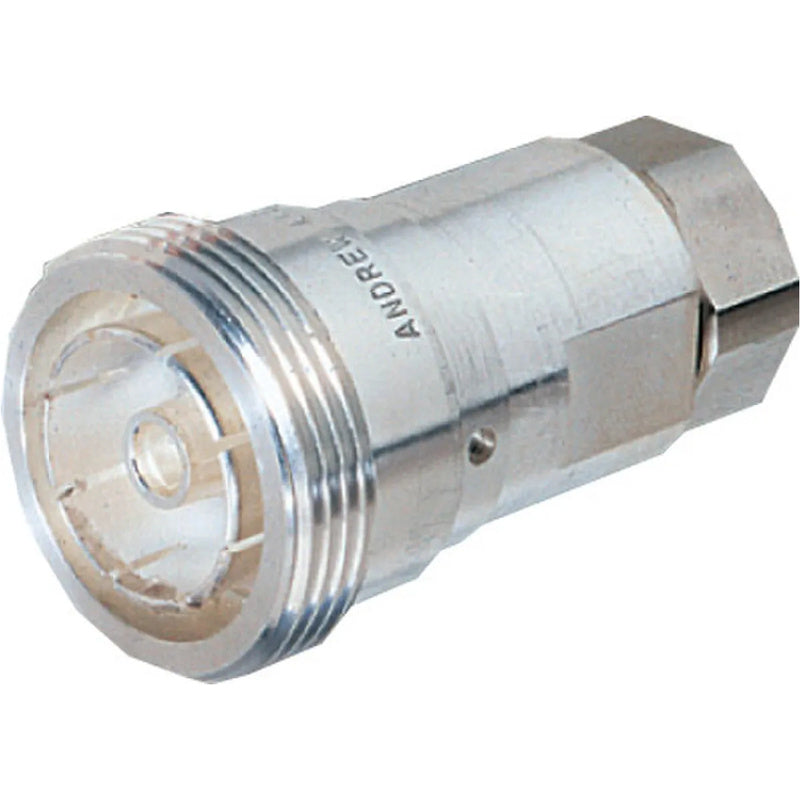

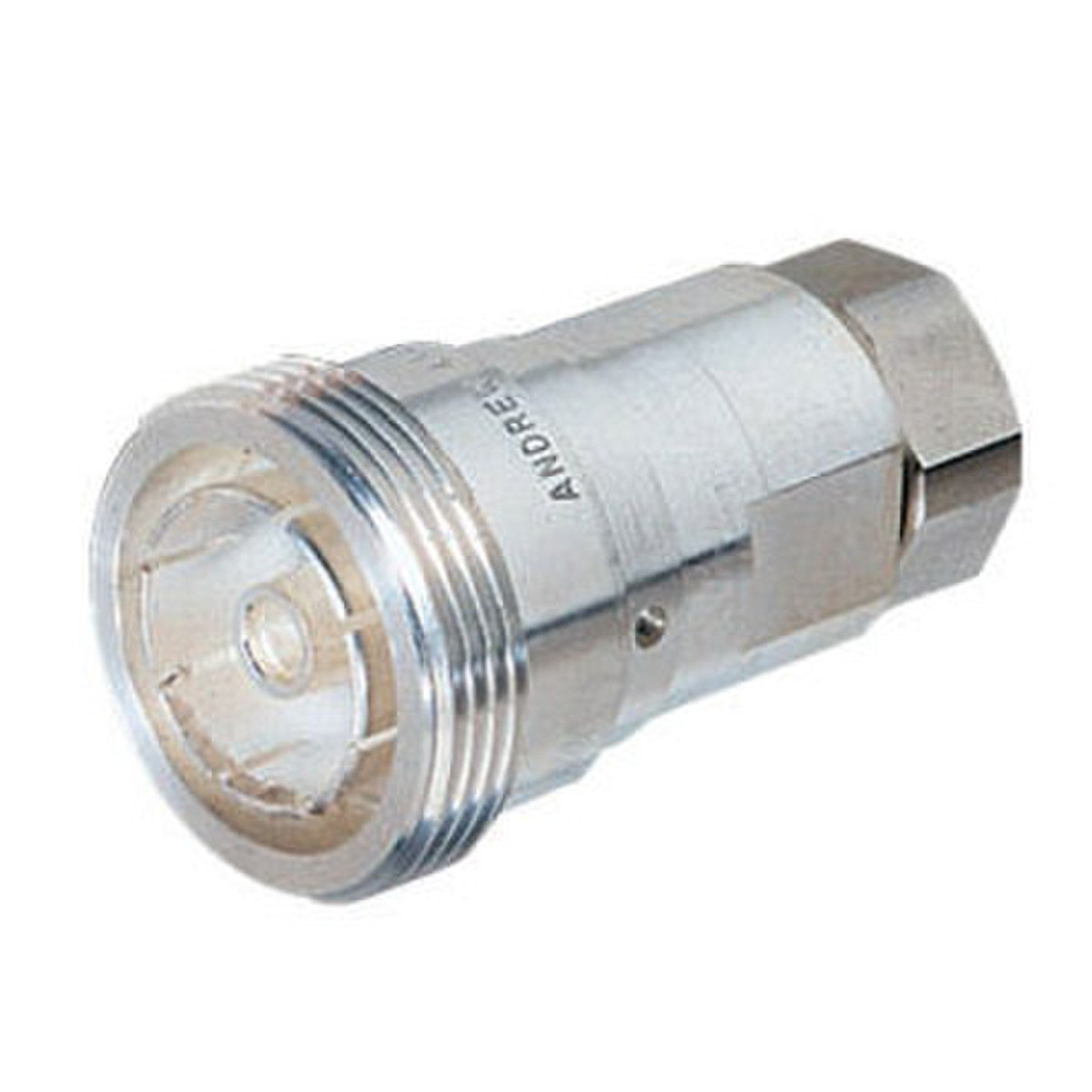

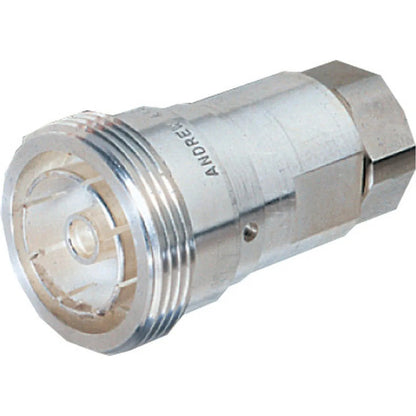

The CommScope F4PDF-C is a high-quality, straight body style 7-16 DIN Female Connector designed specifically for 1/2'' FSJ4-50B cable. The inner contact is captivated and has silver plating on the inner contact while the outer contact is attached using a self-flare method and has trimetal plating on the outer contact. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the F4PDF-C connector guarantees dependable connectivity and signal integrity.
Product Features:
- This connector is not pressurizable and provides a 3rd order IMD at frequency of -120 dBm at 910 MHz.
- It has a typical insertion loss coefficient of 0.05 and provides an average power of 1.0 kW at 900 MHz.
- The cable impedance is 50 ohms and can handle a DC test voltage of 2500 V.
- The maximum inner contact resistance is 0.8 mOhm.
- This connector operates in the frequency band of 0 – 7500 MHz.
- The maximum outer contact resistance is 1.5 mOhm and it can handle a peak power of up to 15.6 kW.
- The maximum RF operating voltage is 884 V (vrms).
- The attachment durability is 25 cycles and has an interface durability of 500 cycles.
- It has an immersion depth of 1 m and immersion test is conducted with the connector mated.
Application Areas:
- This connector is ideal for use in telecom networks and infrastructure.
- It provides reliable signal transmission for broadcasting applications.
- It is perfect for industrial environments where robust connectivity is crucial.
- This connector ensures reliable connections in data center applications.
In the Box:
- 1x CommScope F4PDF-C 7-16 DIN Female Connector
