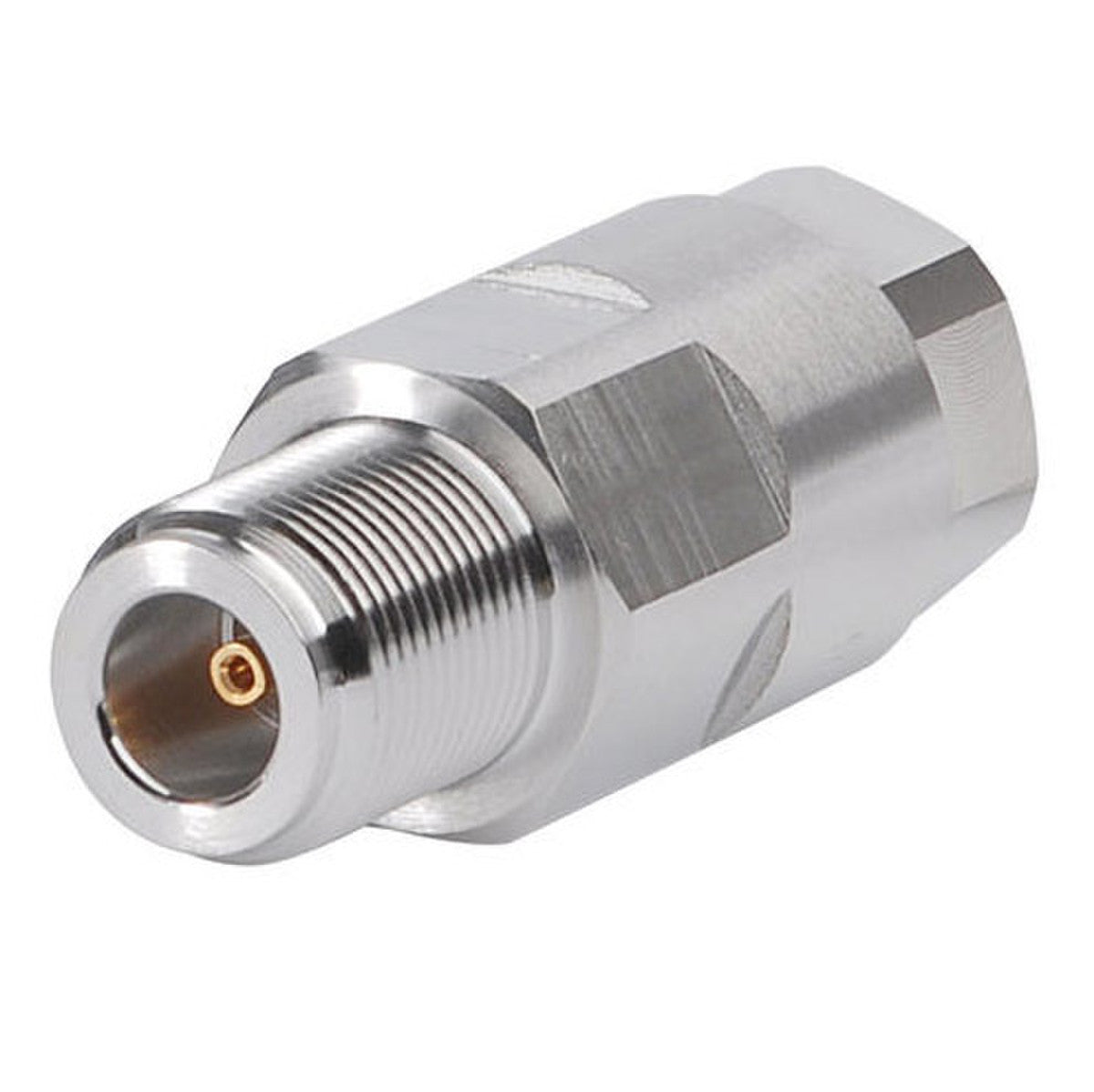

The CommScope F4PNF-C is a high-quality, straight body style N-Female Connector designed specifically for 1/2'' FSJ4-50B cable. The inner contact is captivated and has gold plating on the inner contact while the outer contact is attached using a self-flare method and has trimetal plating on the outer contact. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the F4PNF-C connector guarantees dependable connectivity and signal integrity.

Product Features:

• This connector is not pressurizable and provides a 3rd order IMD at frequency of -120 dBm at 910 MHz.
• It has a typical insertion loss coefficient of 0.05 and provides an average power of 0.6 kW at 900 MHz.
• The cable impedance is 50 ohms and it can handle a DC test voltage of 2000 V.
• The maximum inner contact resistance is 2 mOhm and minimum insulation resistance of 5000 MOhm.
• This connector operates in the frequency band of 0 - 12000 MHz.
• The maximum outer contact resistance is 0.3 mOhm.
• It can handle a peak power of up to 10 kW and maximum RF operating voltage is 707 V (vrms).
• It provides shielding effectiveness of -110 dB and attachment durability is 25 cycles.
• It has an immersion depth of 1 m.

Application Areas:

• This connector is ideal for use in telecom networks and infrastructure.
• It provides reliable signal transmission for broadcasting applications.
• It is perfect for industrial environments where robust connectivity is crucial.
• This connector ensures reliable connections in data center applications.

In the Box:

• 1x CommScope F4PNF-C N-Female Connector

Documents:

CommScope F4PNF-C Connector - Datasheet CommScope F4PNF-C Connector - Installation Guide

Videos:

CommScope F4PNF-C Connector - Installation Guide
