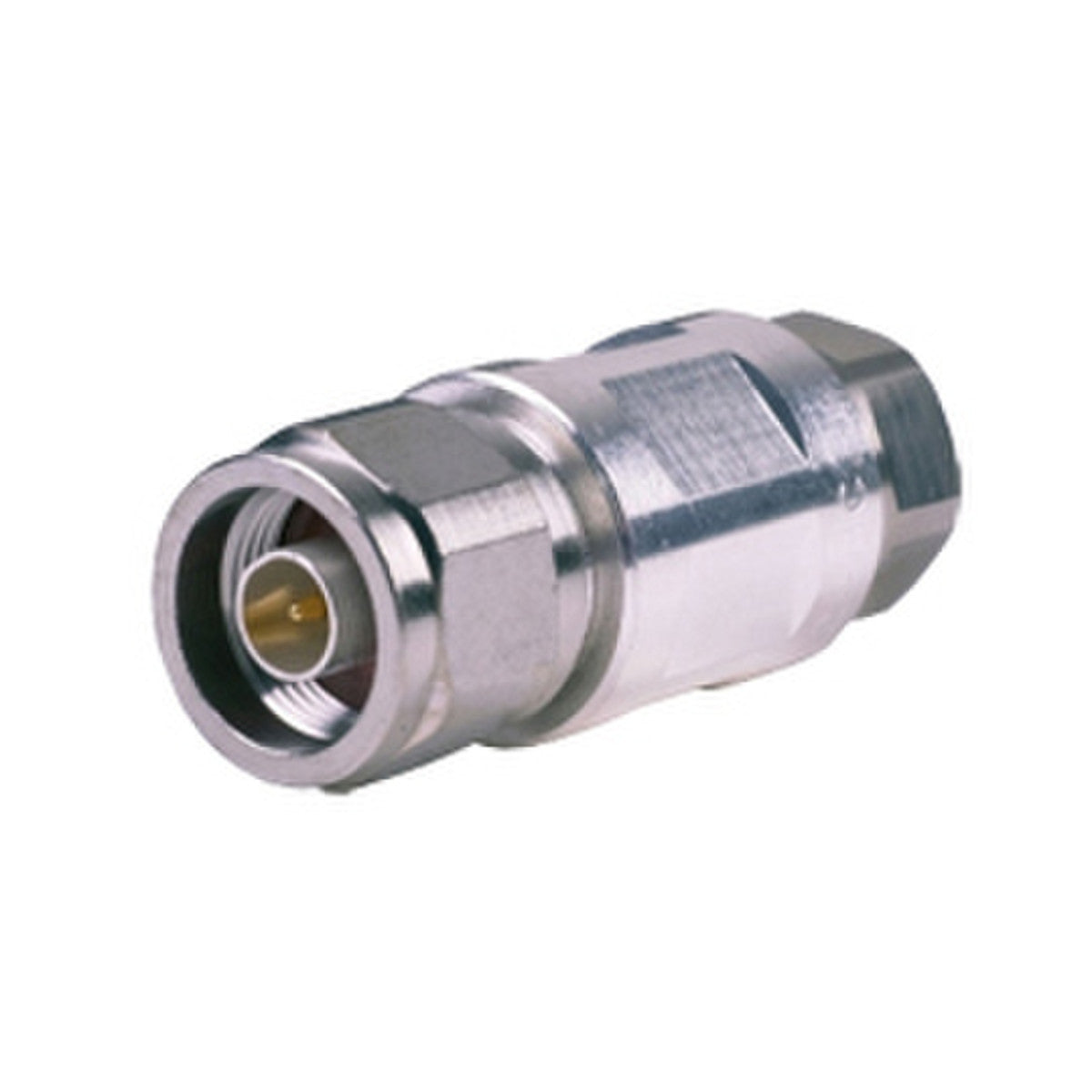

The CommScope F4PNMV2-HC is a high-quality, straight body style N-Male Connector designed specifically for 1/2'' FSJ4-50B cable. The inner contact is captivated and has gold plating on the inner contact while the outer contact is attached using a crush-flare method and trimetal plating on the outer contact. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the F4PNMV2-HC connector guarantees dependable connectivity and signal integrity.
Product Features:
- This connector is not pressurizable and provides a 3rd order IMD at frequency of -120 dBm at 910 MHz.
- It has a typical insertion loss coefficient of 0.05 and provides an average power of 0.6 kW at 900 MHz.
- The cable impedance is 50 ohms and can handle a DC test voltage of 2000 V.
- The maximum inner contact resistance is 2 mOhm and minimum insulation resistance of 5000 MOhm.
- This connector operates in the frequency band of 0 – 12000 MHz.
- The maximum outer contact resistance is 0.3 mOhm and handle a peak power of up to 10 kW.
- It provides shielding effectiveness of -110 dB and attachment durability is 25 cycles.
- It has an immersion depth of 1 m and test is conducted with the connector mated.
Application Areas:
- This connector is ideal for use in telecom networks and infrastructure.
- It provides reliable signal transmission for broadcasting applications.
- It is perfect for industrial environments where robust connectivity is crucial.
- This connector ensures reliable connections in data center applications.
In the Box:
- 1x CommScope F4PNMV2-HC N-Male Connector
Documents:
CommScope F4PNMV2-HC Connector - Datasheet
CommScope F4PNMV2-HC Connector - Installation Guide
Videos:
FSJ4-50B Series Version 2 Connector Installation using an Auto Prep Tool
FSJ4-50B Series Version 2 Connector Installation using a Manual Prep Tool
