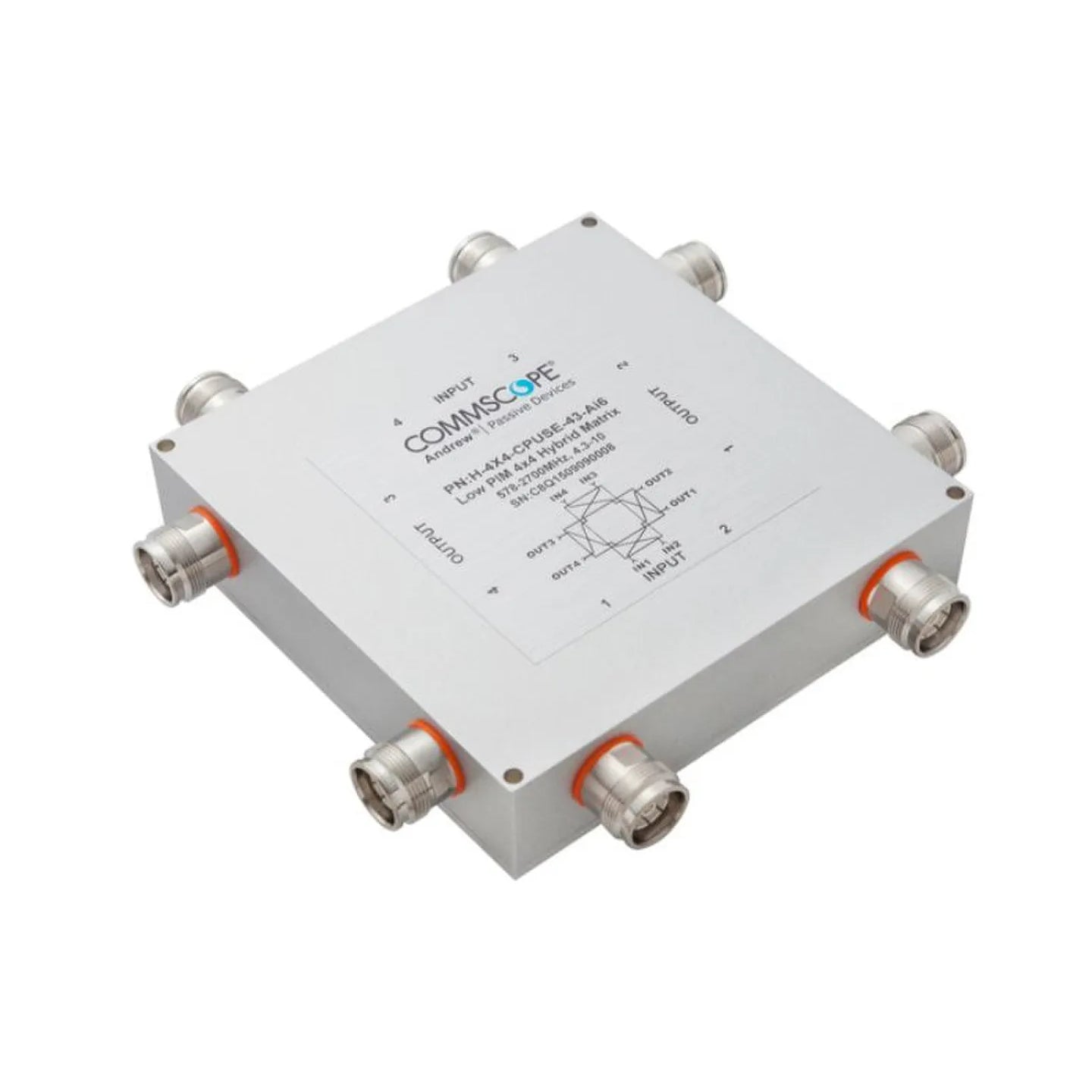

The CommScope H-4X4-CPUSE-43-AI6 Hybrid Matrix is a high-performance RF component designed to combine or distribute RF signals across a wide frequency range of 555 to 2700 MHz. Engineered for both indoor and outdoor applications, this hybrid matrix supports multiple input and output configurations in network optimization, antenna sharing, and in-building wireless systems.

Product Features:

• Supports wideband operation from 555 MHz to 2700 MHz for flexible system integration.
• 4x4 hybrid matrix design enables signal combining and splitting with minimal loss.
• Robust construction suitable for both indoor and outdoor deployments.
• Silver-plated inner contacts and trimetal-plated outer contacts for optimal conductivity and corrosion resistance.
• 4.3-10-Female interface connectors provide secure and standard RF connectivity.
• Dimensions: Height 34 mm | 1.339 in, Width: 180 mm | 7.087 in, Length: 180 mm | 7.087 in

Application Areas:

• In-building distributed antenna systems (DAS).
• Base station signal combining and splitting.
• Multi-operator or multi-band antenna deployments.
• RF testing and network optimization environments.

In the Box:

• 1 x CommScope 4x4 Hybrid Matrix, 4.3-10-Female

Documents:

CommScope H-4X4-CPUSE-43-AI6 - Datasheet
