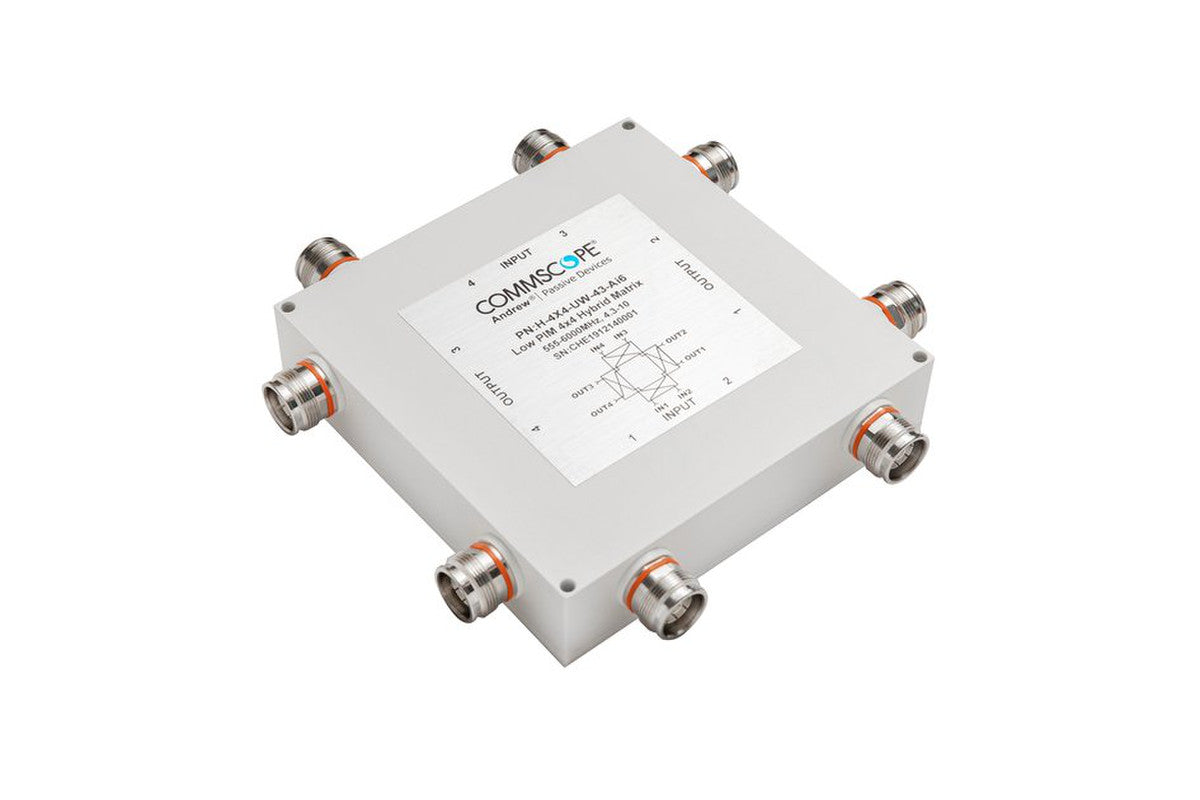

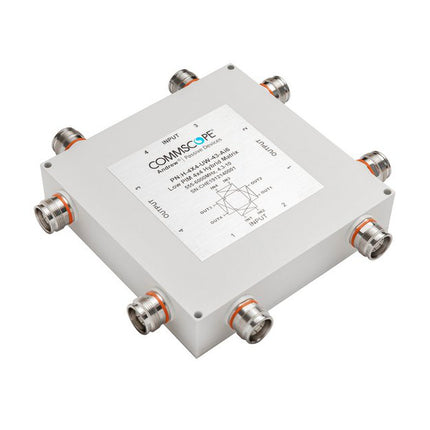

CommScope H-4X4-UW-43-AI6 Hybrid Matrix, 555-6000 MHz, 4.3-10-Female

CommScope H-4X4-UW-43-AI6 Hybrid Matrix, 555-6000 MHz, 4.3-10-Female

On backorder

Item ID:
168021452
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
H-4X4-UW-43-AI6
Send Request for Quote (RFQ) Discount Offers
The CommScope H-4X4-UW-43-AI6 Hybrid Matrix is a low PIM, high power hybrid matrix designed for a wide frequency range of 555–6000 MHz.
Regular price $1,530.00
Regular price $0.00 Sale price $1,530.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope H-4X4-UW-43-AI6 Hybrid Matrix is a low PIM; high power hybrid matrix designed for a wide frequency range of 555–6000 MHz. This device is suitable for both indoor and outdoor applications, ensuring reliable performance in various environments.

Product Features:

  • The inner contact is plated with silver.
  • The outer contact is plated with trimetal.
  • The operating temperature range is from -35 °C to +85 °C.
  • It can handle relative humidity up to 100%.
  • The device can handle an average power of up to 100 W.
  • It has a coupling value of 6.2 dB.
  • The impedance is 50 ohms.
  • The operating frequency band ranges from 555 to 6000 MHz.
  • The peak power handling capacity is 1 kW.

Application Areas:

  • This hybrid matrix is ideal for use in telecom networks and infrastructure.
  • It is suitable for broadcasting applications that require low PIM and high-power handling.
  • The device is perfect for industrial environments where robust connectivity is crucial.
  • It ensures reliable connections in data center applications.
  • It is applicable in outdoor installations where environmental protection is essential.

In the Box:

  • 1x CommScope H-4X4-UW-43-AI6 Hybrid Matrix, 555-6000 MHz, 4.3-10 Female

Documents:

CommScope 4x4 Hybrid Matrix - Datasheet

Product Specifications

MPN H-4X4-UW-43-AI6
Brands CommScope
Component type Hybrid Matrix
Connector 4.3-10 (F)
Coupled loss db 6
Frequency band UHF, Cellular
Height 3.23
GTIN/EAN 888063958724
Length 18.26
Technology type 5G, 4G, UMTS
Width 18.26
