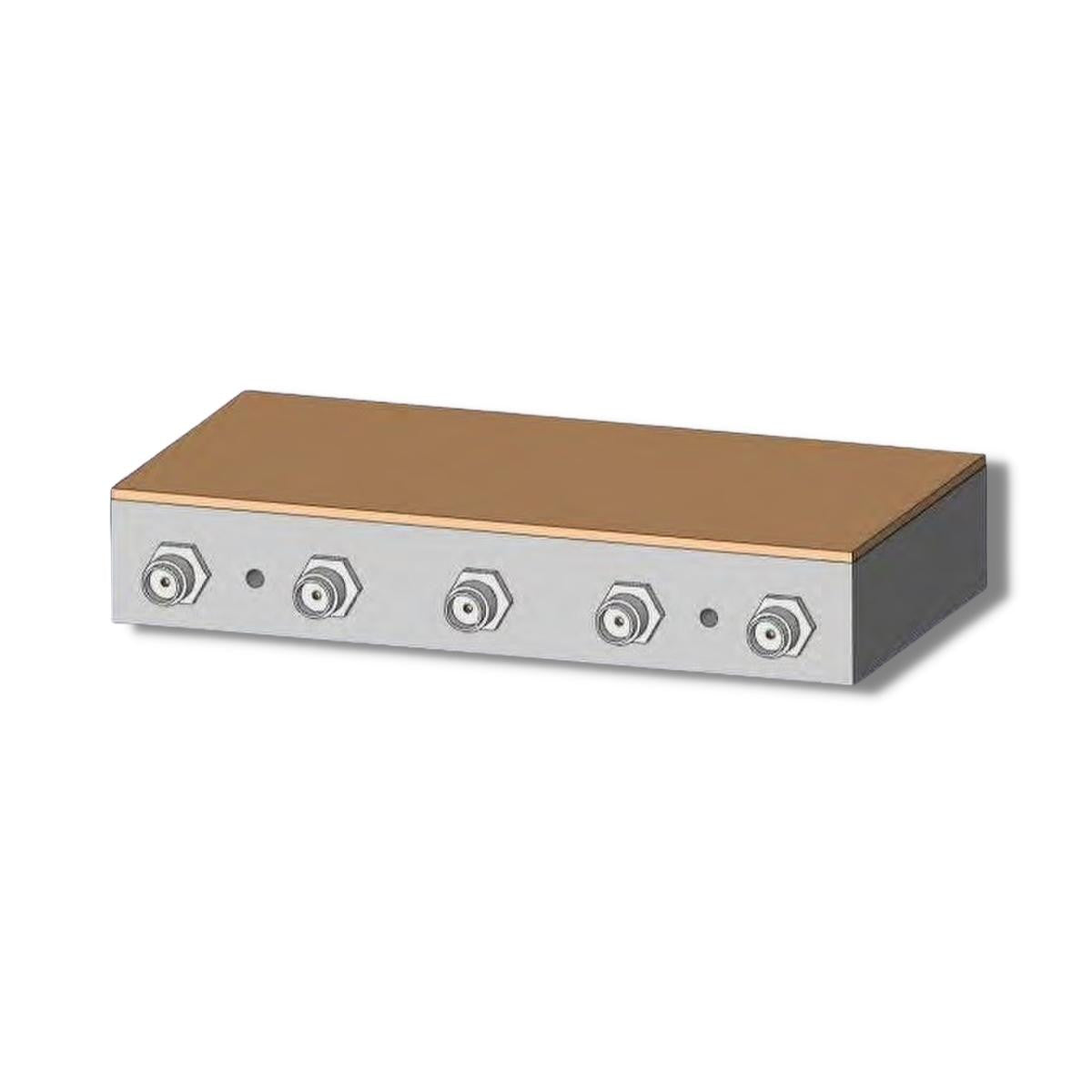

The CommScope 4-Way Combiner is a high-performance RF component designed to function as either a combiner or splitter within the 1920-2700 MHz frequency range. Engineered for use in CommScope ION-M active DAS systems, it provides reliable signal distribution with low insertion loss and high interport isolation.

Product Features:

• This versatile RF device operates as both a combiner and a splitter.
• Designed for optimal performance, it covers a frequency range of 1920-2700 MHz.
• With a low insertion loss of 6.4 dB, the device ensures strong and efficient signal transmission.
• Its high interport isolation of 18 dB minimum effectively minimizes interference.
• In splitter mode, the unit supports up to 20 Watts of power.
• In combiner mode (without a heatsink), it can handle 1 Watt per channel.
• Built for efficient rack integration, the device features a compact 3U x 4HP form factor.
• Equipped with SMA female connectors to secure and reliable connections.

Application Areas:

• CommScope ION-M Active DAS Systems.
• Cellular signal distribution and network optimization.
• RF signal management in buildings, tunnels, and large venues.
• Wireless communication and industrial RF applications.

In the Box:

• 1 x CommScope ION-M 4-Way High Band Combiner.
