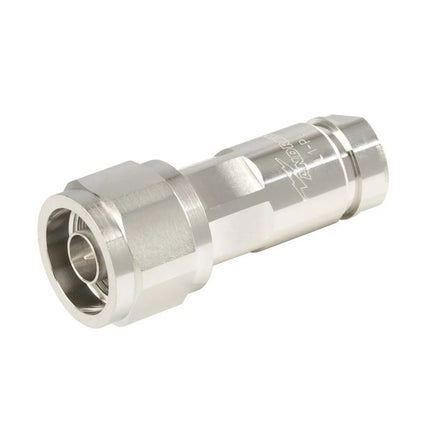

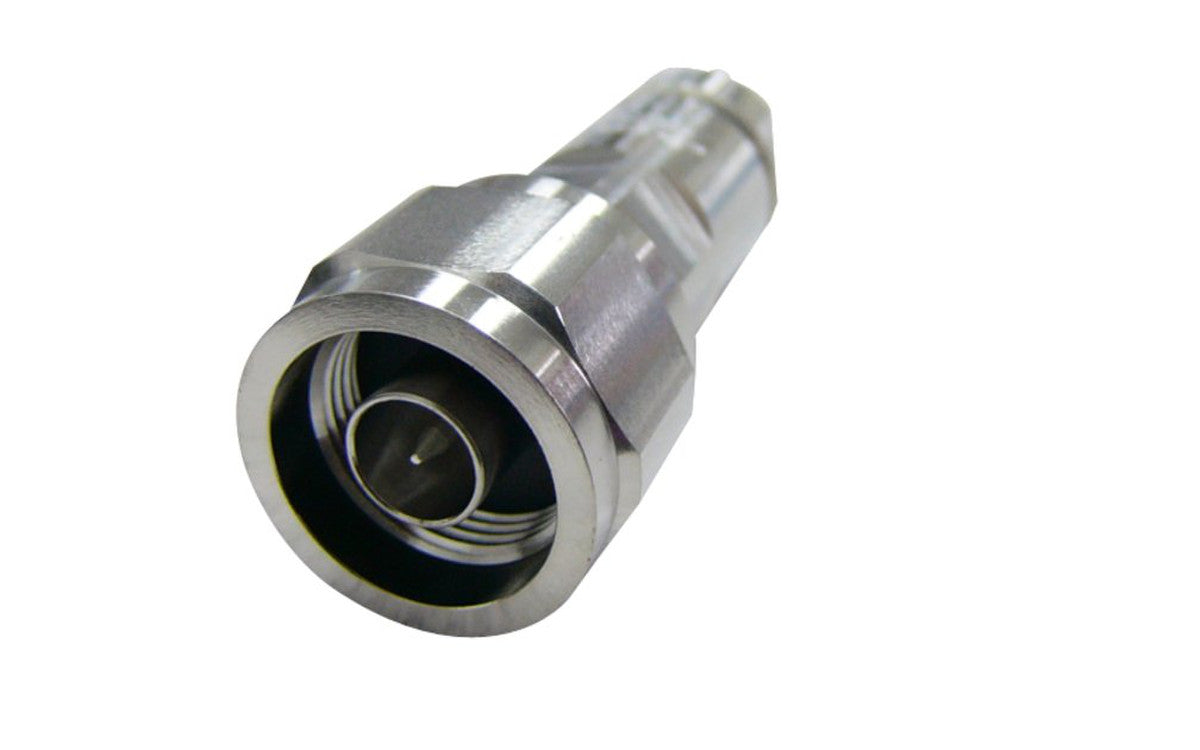

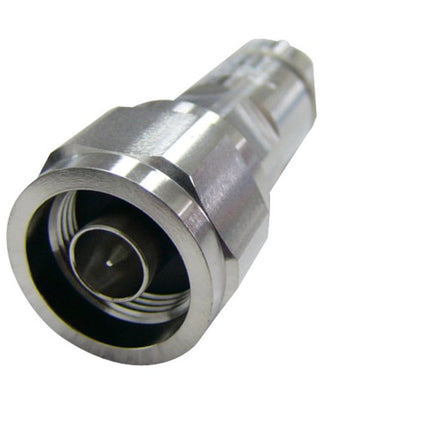

The CommScope L1TNM-PL is a high-quality, straight body style Type-N Male Positive Lock Connector designed specifically for 1/4'' LDF1-50 cable. The inner contact is captivated and silver plating on the inner contact while the outer contact is attached using a self-flare method and trimetal plating on the outer contact. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the L1TNM-PL connector guarantees dependable connectivity and signal integrity.

Product Features:

• This connector is not pressurizable and it provides a 3rd order IMD at frequency of -107 dBm at 910 MHz.
• It has a typical insertion loss coefficient of 0.05 and provides an average power of 0.6 kW at 900 MHz.
• The cable impedance is 50 ohms and can handle a DC test voltage of 2200 V.
• The maximum inner contact resistance is 1 mOhm and minimum insulation resistance of 5000 MOhm.
• This connector operates in the frequency band of 0 – 12000 MHz.
• The maximum outer contact resistance is 0.25 mOhm and it can handle a peak power of up to 10 kW.
• The maximum RF operating voltage is 707 V.
• The connector retention tensile force is 449.27 N and coupling nut proof torque is 1.7 N-m.
• It has an immersion depth of 1 m and this test is conducted with the connector mated.

Application Areas:

• This connector is ideal for use in telecom networks and infrastructure.
• It provides reliable signal transmission for broadcasting applications.
• It is perfect for industrial environments where robust connectivity is crucial.
• This connector ensures reliable connections in data center applications.

In the Box:

• 1x CommScope L1TNM-PL Type-N Male Positive Lock Connector
