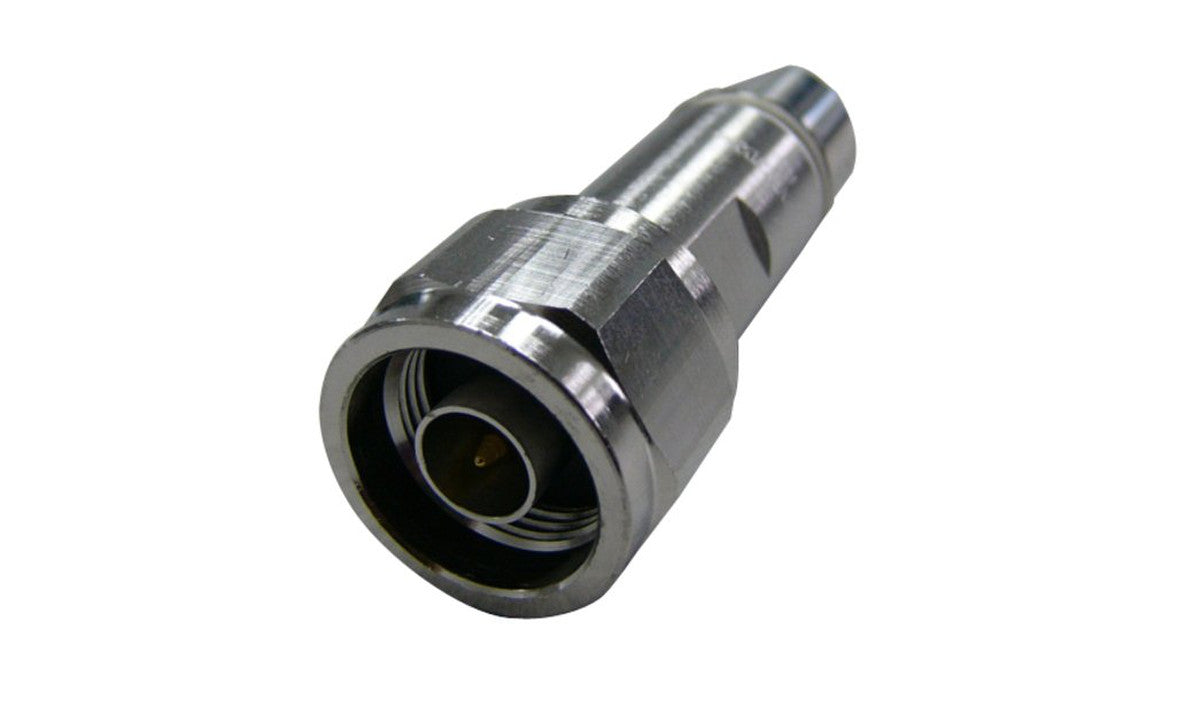

CommScope L2TNM-PL Type N-Male Positive Lock Connector for 3/8'' LDF2-50 Cable

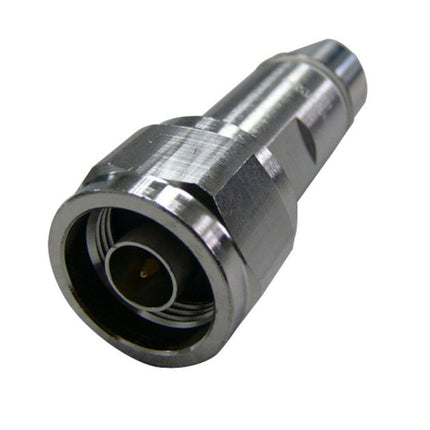

CommScope L2TNM-PL Type N-Male Positive Lock Connector for 3/8'' LDF2-50 Cable

On backorder

Item ID:
168018456
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
L2TNM-PL
Send Request for Quote (RFQ)
The Commscope L2TNM-PL is a high-quality Type N-Male Positive Lock Connector designed specifically for 3/8'' LDF2-50 cable.
Regular price $31.55
Regular price $0.00 Sale price $31.55
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope L2TNM-PL is a high-quality straight body Type N-Male Positive Lock Connector designed specifically for 3/8'' LDF2-50 cable. The inner contact is captivated and silver plating on the inner contact while the outer contact is attached using a ring-flare method and trimetal plating on the outer contact. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the L2TNM-PL connector guarantees dependable connectivity and signal integrity.

Product Features:

  • This connector is not pressurizable and it provides a 3rd order IMD at frequency of -107 dBm at 910 MHz.
  • It has a typical insertion loss coefficient of 0.05 and provides an average power of 0.7 kW at 900 MHz.
  • The cable impedance is 50 ohms and can handle a DC test voltage of 2500 V.
  • The maximum inner contact resistance is 1 mOhm and minimum insulation resistance of 5000 MOhm.
  • This connector operates in the frequency band of 0 – 12000 MHz.
  • The maximum outer contact resistance is 0.25 mOhm and it can handle a peak power of up to 10 kW.
  • The maximum RF operating voltage is 707 V.
  • The connector retention tensile force is 671.68 N and coupling nut proof torque is 2.7 N-m.
  • It has an immersion depth of 1 m and this test is conducted with the connector mated.

Application Areas:

  • This connector is ideal for use in telecom networks and infrastructure.
  • It provides reliable signal transmission for broadcasting applications.
  • It is perfect for industrial environments where robust connectivity is crucial.
  • This connector ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope L2TNM-PL Type N-Male Positive Lock Connector

Documents:

CommScope L2TNM-PL Connector - Datasheet CommScope L2TNM-PL Connector - Installation Guide

Product Specifications

MPN L2TNM-PL
Brands CommScope
Cable supported LDF2-50
Cable type LDF4-50A
Component type Connector
Connector N(M)
Connector end a N (M)
Height 2.235
Impedance ohm 50
Inner attachment Other
GTIN/EAN 888063242854
Length 5.334
Max frequency mhz 12000
Min frequency mhz 0
Mounting angle Straight
Prep toolset CPT-E2L2N
Width 2.235
