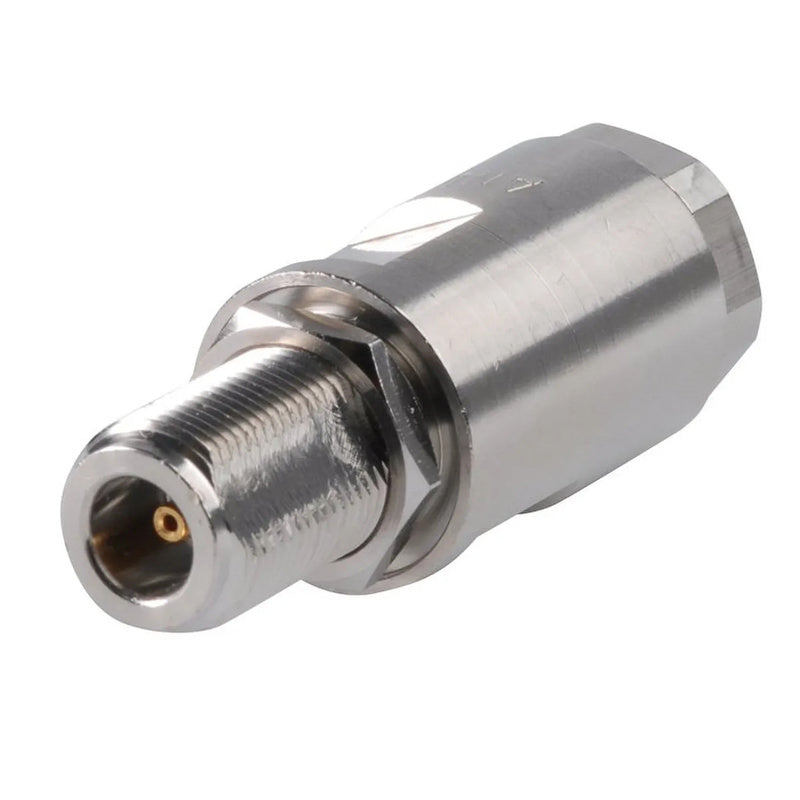

CommScope L4PNF-BH Type-N Female Bulkhead Connector for 1/2'' LDF4-50A Cable

CommScope L4PNF-BH Type-N Female Bulkhead Connector for 1/2'' LDF4-50A Cable

On backorder

Item ID:
168018459
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
L4PNF-BH
Send Request for Quote (RFQ)
The Commscope L4PNF-BH is a high-quality Type-N Female Bulkhead Connector designed specifically for 1/2'' LDF4-50A cable.
Regular price $46.60
Regular price $0.00 Sale price $46.60
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope L4PNF-BH is a high-quality, straight body style Type-N Female Bulkhead Connector designed specifically for 1/2'' LDF4-50A cable. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the L4PNF-BH connector guarantees dependable connectivity and signal integrity.

Product Features:

  • It has a typical insertion loss coefficient of 0.05 and provides an average power of 0.6 kW at 900 MHz.
  • The cable impedance is 50 ohms and can handle a DC test voltage of 2000 V.
  • The maximum inner contact resistance is 2 mOhm and minimum insulation resistance of 5000 MOhm.
  • This connector operates in the frequency band of 0 – 8800 MHz.
  • The maximum outer contact resistance is 1 mOhm and it can handle a peak power of up to 10 kW.
  • The maximum RF operating voltage is 707 V.
  • The connector retention tensile force is889.64 N and coupling nut proof torque is 5.42 N-m.
  • It has an immersion depth of 1 m and this test is conducted with the connector mated.

Application Areas:

  • This connector is ideal for use in telecom networks and infrastructure.
  • It provides reliable signal transmission for broadcasting applications.
  • It is perfect for industrial environments where robust connectivity is crucial.
  • This connector ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope L4PNF-BH Type-N Female Bulkhead Connector

Documents:

CommScope L4PNF-BH Connector - Datasheet CommScope L4PNF-BH Connector - Installation Guide

Videos:

L4 Connector installation for HELIAX LDF4 50A cable

Product Specifications

MPN L4PNF-BH
Brands CommScope
Cable supported LDF4-50A
Cable type LDF4-50A
Component type Connector
Connector N(F)
Connector end a N (F)
Height 2.54
Impedance ohm 50
Inner attachment Other
GTIN/EAN 646444141949
Length 6.604
Max frequency mhz 8800
Min frequency mhz 0
Mounting angle Straight
Prep toolset MCPT-L4, CPT-L4ARC1
Width 2.54
