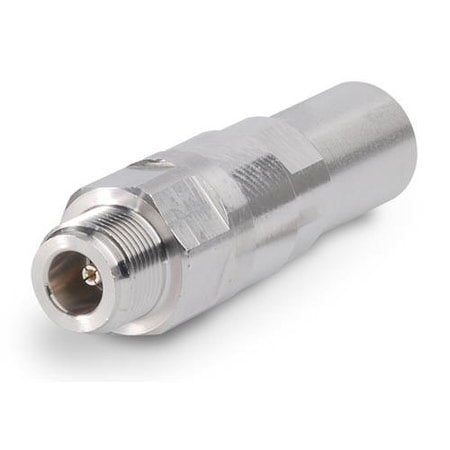

CommScope L4TNF-PSA Type-N Female Positive Lock Connector for 1/2" AL4RPV-50, LDF4-50A and HL4RPV-50 Cables

CommScope L4TNF-PSA Type-N Female Positive Lock Connector for 1/2" AL4RPV-50, LDF4-50A and HL4RPV-50 Cables

Available

Item ID:
168018462
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
L4TNF-PSA
Send Request for Quote (RFQ)
The CommScope L4TNF-PSA is a high-quality Type-N Female Positive Lock Connector designed specifically for 1/2" AL4RPV-50, LDF4-50A, and HL4RPV-50 cables.
Regular price $22.90
Regular price $0.00 Sale price $22.90
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope L4TNF-PSA is a high-quality Type-N Female Positive Lock Connector designed specifically for 1/2" AL4RPV-50, LDF4-50A, and HL4RPV-50 cables. This connector ensures reliable and efficient performance across a wide range of applications, making it an ideal choice for telecom networks, broadcasting, industrial environments, and data centers. With its robust construction and superior electrical properties, the L4TNF-PSA connector guarantees dependable connectivity and signal integrity.

Product Features:

  • The connector has a straight body style and a straight mounting angle.
  • It is designed for the AL4-50 cable family, with both the cable and connector having a 50-ohm impedance.
  • The inner contact is captivated and has silver plating.
  • This connector features an N Female interface.
  • The outer contact is attached using a ring-flare method and has trimetal plating.
  • It is not pressurizable.
  • This connector can handle a peak power of up to 10 kW.
  • It has an interface durability of 500 cycles.

Application Areas:

  • This connector is ideal for use in telecom networks and infrastructure.
  • It provides reliable signal transmission for broadcasting applications.
  • It is perfect for industrial environments where robust connectivity is crucial.
  • This connector ensures reliable connections in data center applications.

In the Box:

  • 1x CommScope L4TNF-PSA Type-N Female Positive Lock Connector

Documents:

CommScope L4TNF-PSA Connector - Datasheet CommScope L4TNF-PSA Connector - Installation Guide

Videos:

L4 Connector installation for HELIAX LDF4 50A cable CommScope Positive Stop Series Connectors - Installation by using an Automated Cable Preparation Tool CommScope Positive Stop Series Connectors - Installation by using a Manual Cable Preparation Tool

Product Specifications

MPN L4TNF-PSA
Brands CommScope
Cable supported LDF4-50A, AL4RPV-50, HL4RPV-50
Cable type LDF4-50A
Centre conductor Captivated, Silver
Component type Connector
Connector N(F)
Connector end a N (F)
Crimp set or tool EASIAX? Plus
Height 10
Impedance ohm 50
Inner attachment Other
GTIN/EAN 888063079412
Length 7.37
Max frequency mhz 8800
Min frequency mhz 0
Mounting angle Straight
Prep toolset CPT-12U, CT-7812
Width 2.24
