CommScope LDF4-50A Heliax 1/2'' Corrugated Coaxial Cable, Black - Per Meter

CommScope LDF4-50A Heliax 1/2'' Corrugated Coaxial Cable, Black - Per Meter

Available

Item ID:
168017894
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
LDF4-50A
Send Request for Quote (RFQ)
CommScope LDF4-50A HELIAX 1/2-inch coaxial cable features a corrugated copper outer conductor, 50-ohm impedance, and a frequency range of 1–8800 MHz. Note: This cable is sold per meter. If you need to buy in bulk, please contact us for a Quote.
Regular price $8.00
Regular price $0.00 Sale price $8.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

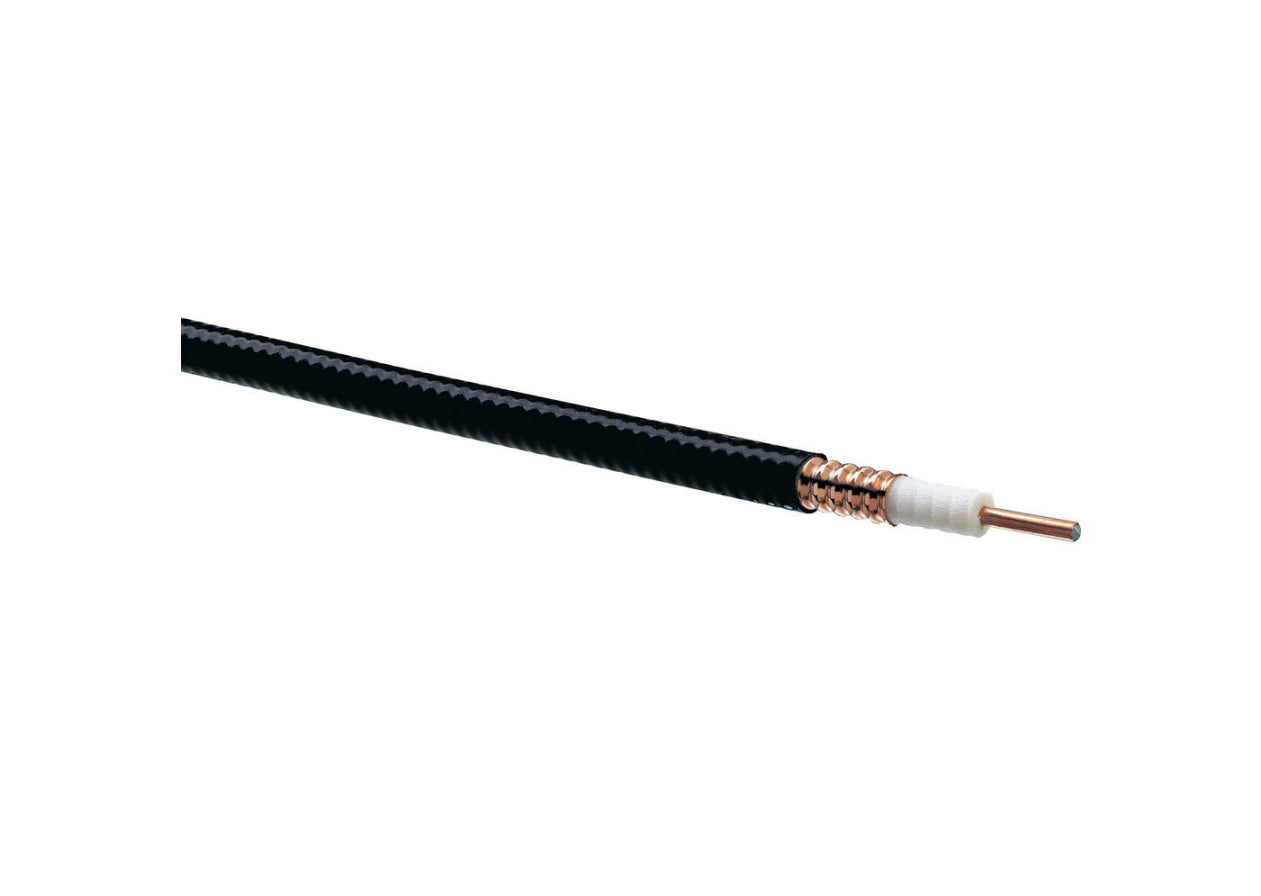

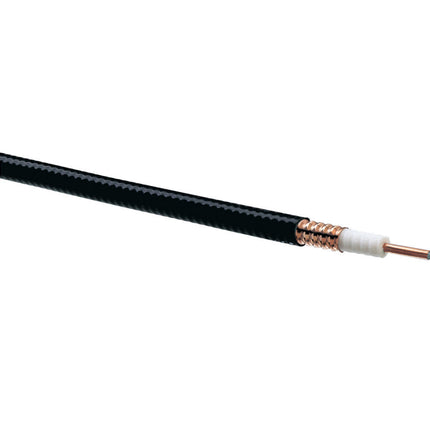

CommScope LDF4-50A HELIAX Low Density Foam Coaxial Cable is a high-performance 1/2-inch coaxial cable designed for reliable signal transmission in outdoor applications. Featuring a corrugated copper outer conductor and a durable black PE jacket, this LDF4-50A cable offers excellent flexibility, low attenuation, and superior RF shielding. With a 50-ohm impedance, it supports a wide frequency range of 1–8800 MHz, making it ideal for wireless communication, broadcast, and RF applications.

Product Features:

  • The diameter is 12.954 mm for the dielectric and 15.875 mm for the jacket.
  • The inner conductor has an outer diameter of 4.826 mm, while the outer conductor has an outer diameter of 13.97 mm.
  • The nominal size is 1/2" and the cable impedance is 50 ohms ±1 ohm.
  • The capacitance is 75.8 pF/m or 23.104 pF/ft.
  • The insulation resistance is 100000 MOhms-km.
  • The jacket spark test voltage (RMS) is 8000 V.
  • It covers an operating frequency band of 1 – 8800 MHz.
  • The peak power is 40 kW and the velocity is 88%.

Application Areas:

  • This product is ideal for wireless communication systems.
  • It is suitable for radio and television broadcasting.
  • It can be used in satellite communication.
  • It is perfect for antenna feeder systems.
  • It is designed for outdoor installations.

In the Box:

  • CommScope LDF4-50A Heliax 1/2'' Corrugated Coaxial Cable - Custom Length

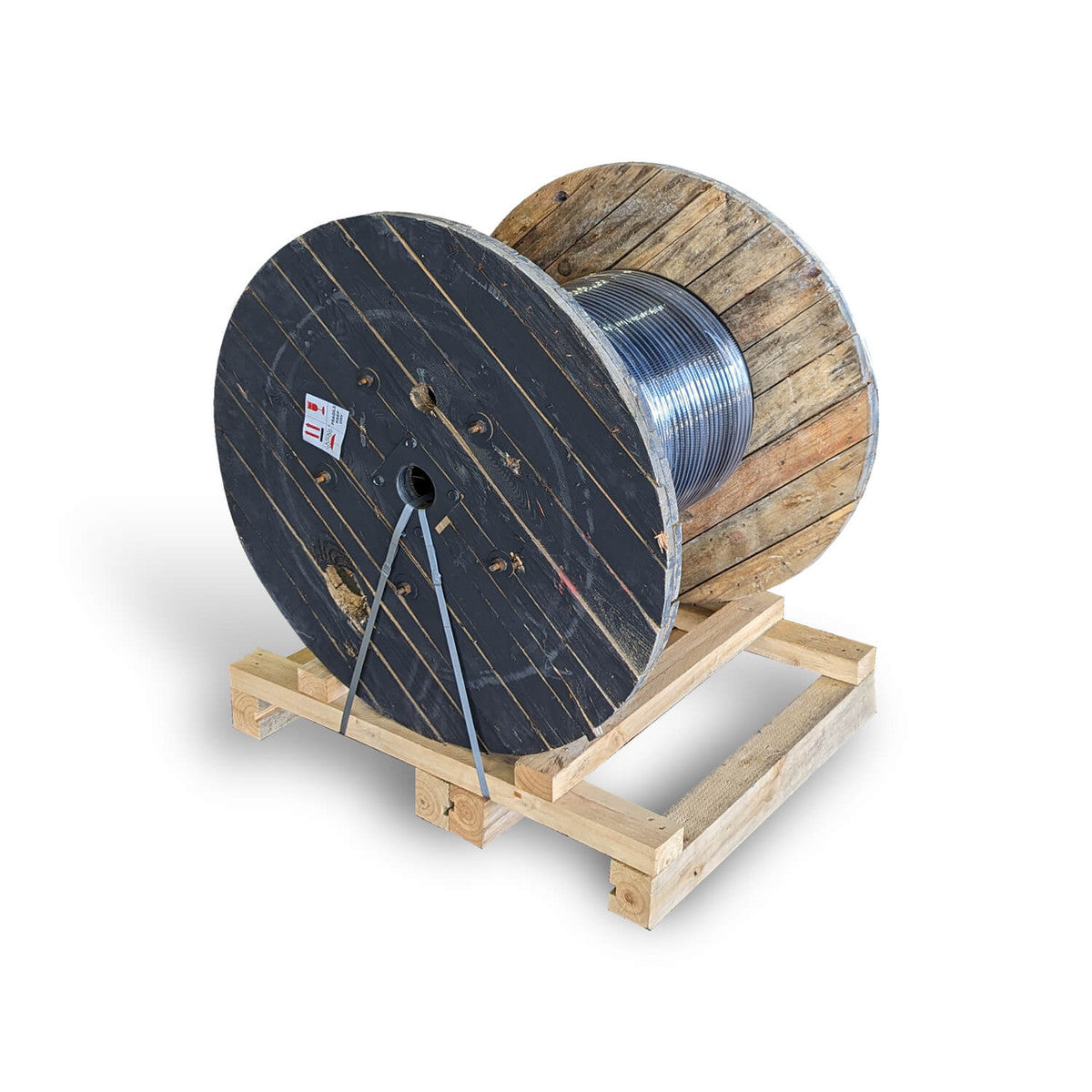

Note: This cable is supplied in a cable box for up to 100m of length. For 500m length, the cable is despatched wrapped on a drum and tied to a pallet. If you need to order bulk quantity, please contact us for a quote.

Documents:

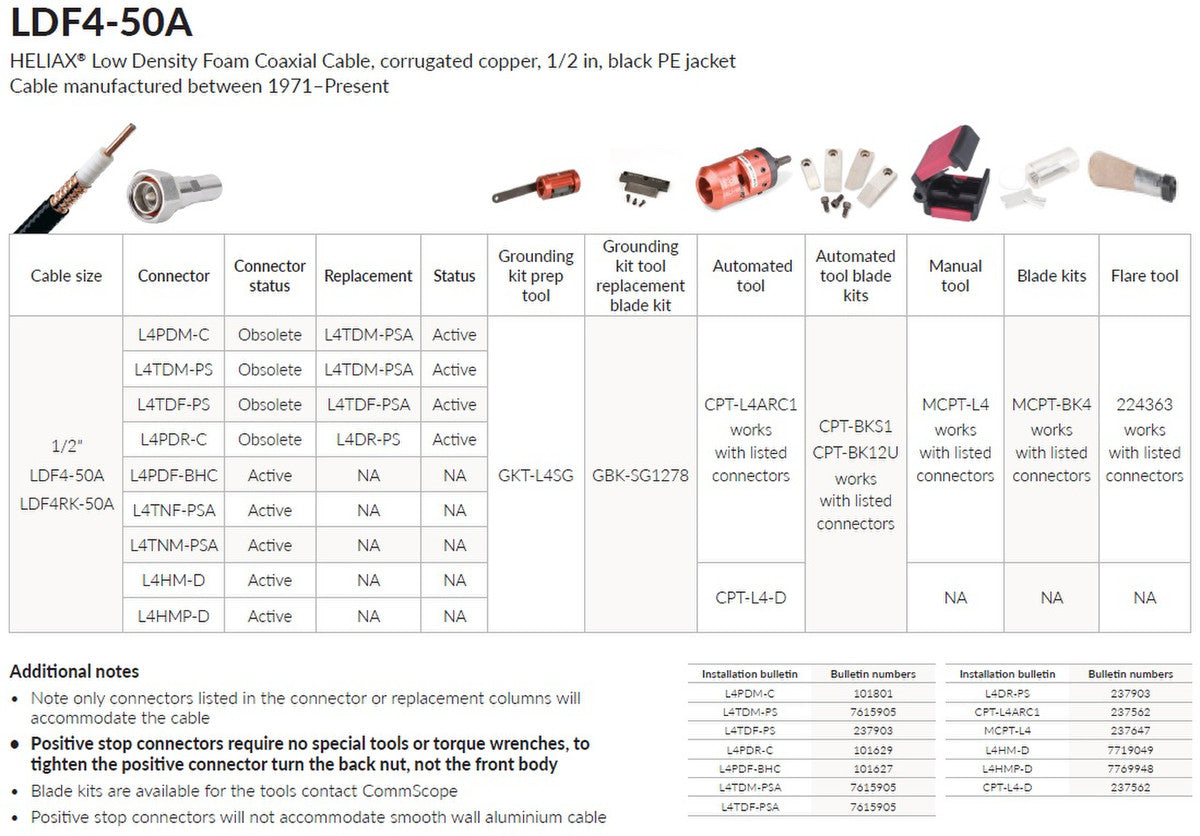

CommScope LDF4-50A Coaxial Cable - Datasheet
