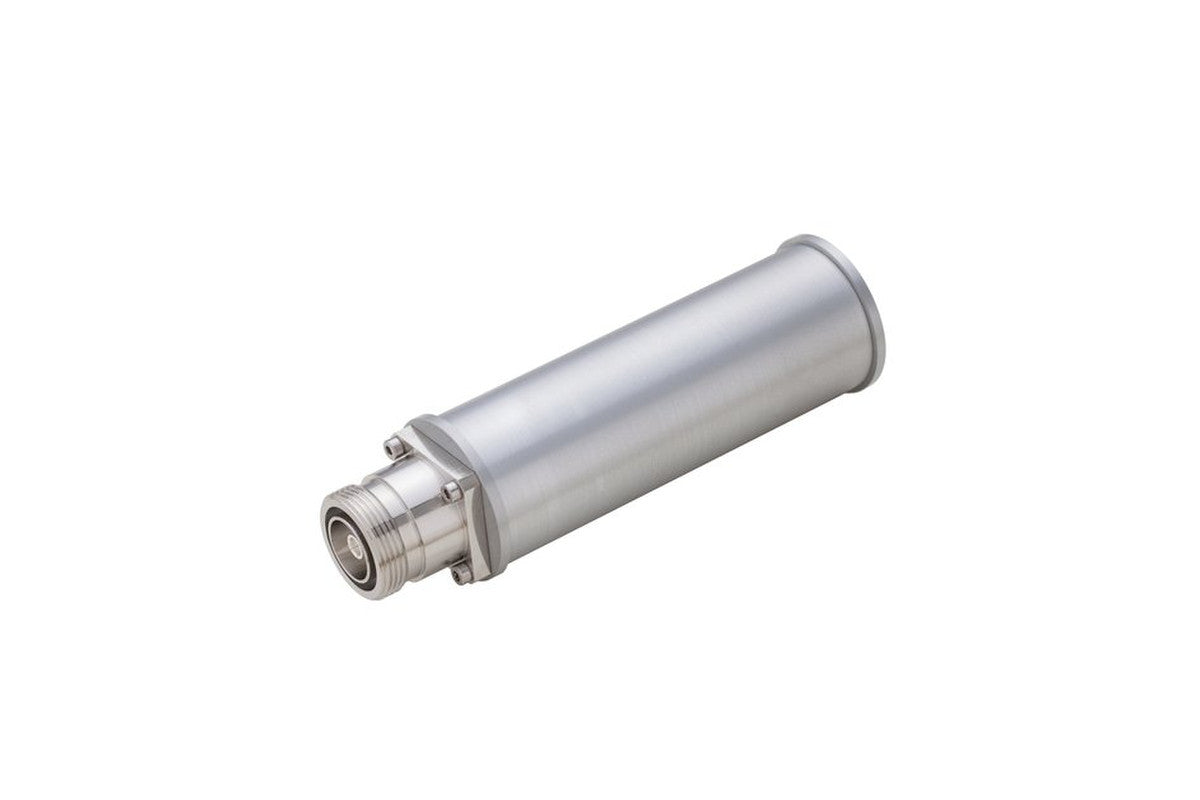

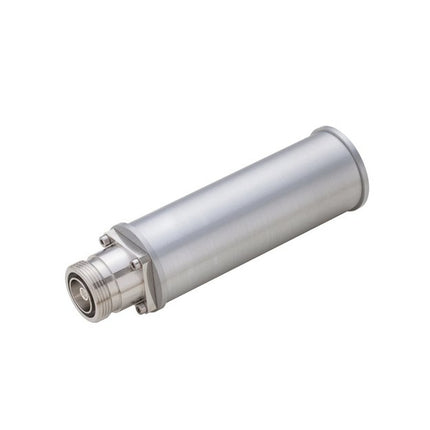

CommScope T10 Termination Load, 555-2700 MHz, 10W, 7-16 DIN-Female

    CommScope T10 Termination Load, 555-2700 MHz, 10W, 7-16 DIN-Female

      Product form
      Item ID:
      168019009
      Export:
      Accepted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      T-10-DFi6

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      CommScope T10 Termination Load is a high-performance termination device designed for RF applications within the 555-2700 MHz frequency range.

      Sold-out/Backorder

      $863.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The CommScope T10 Termination Load is a high-performance termination device designed for RF applications within the 555-2700 MHz frequency range. It supports up to 10 watts of power and ensures low passive intermodulation (PIM) where signal integrity is crucial.

        Product Features:

        • It operates across 555 MHz to 2700 MHz, supporting a variety of RF systems.
        • Low PIM Performance maintains signal integrity by minimizing passive intermodulation.
        • CommScope T10 termination load features a robust silver finish with silver-plated inner contacts and trimetal-plated outer contacts.
        • Reliable Power Handling rated for 10 watts of continuous power dissipation.
        • Standard Connector equipped with a 7-16 DIN Female interface for secure and stable connections.

        Application Areas:

        • Indoor RF system testing and termination.
        • DAS requiring low PIM performance.
        • Base station and wireless communication equipment.
        • Signal load balancing and network maintenance setups.

        In the Box:

        • 1 x CommScope T-10-DFI6 Low PIM Termination Load (7-16 DIN Female)

        Product Specifications

        MPN T-10-DFi6
        Brands CommScope
        Component type Load
        Connector 7-16 DIN(F)
        Frequency band UHF, Cellular
        Height 6.5
        Length 20
        Technology type 5G, 4G, UMTS
        Width 8.5
