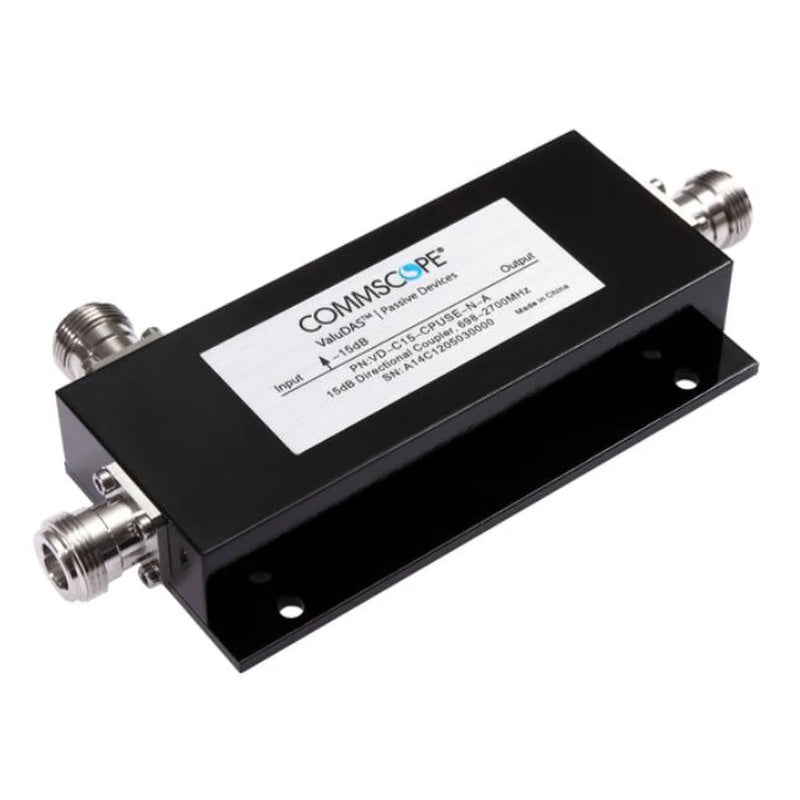

CommScope ValuDAS Directional Coupler, 698-2700 MHz, 15 dB, N-Female

CommScope ValuDAS Directional Coupler, 698-2700 MHz, 15 dB, N-Female

Sold out

Item ID:
168021596
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
VD-C15-CPUSE-N-A
Send Request for Quote (RFQ) Discount Offers
CommScope VD-C15-CPUSE-N-A ValuDAS Air Directional Coupler is a high-performance RF coupler designed for indoor DAS and wireless signal distribution. This device comes with a 15 dB N(F) connector.
Regular price $101.50
Regular price $0.00 Sale price $101.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The CommScope VD-C15-CPUSE-N-A ValuDAS Air Directional Coupler is a reliable RF component designed to distribute wireless signals in indoor DAS applications. Operating over a broad frequency range of 698 to 2700 MHz, this coupler supports 3G, 4G LTE, and 5G networks. With a coupling value of 15 dB, it provides accurate signal sampling while maintaining system efficiency. Its compact, durable design and N-Female interface make it ideal for use in professional RF installations.

Product Features:

  • Supports a frequency range of 698 MHz to 2700 MHz, making it compatible with LTE, 5G, and legacy systems.
  • Delivers a 15 dB coupling value to allow efficient signal sampling without significant signal loss.
  • Maintains low insertion loss to preserve signal integrity and minimize power loss.
  • Offers high isolation between ports to reduce interference in multi-band environments.
  • Constructed from robust materials to withstand professional installation conditions.
  • Compact and lightweight form factor enables flexible integration into various RF setups.
  • Inner contacts are silver-plated to ensure superior conductivity and signal performance.
  • Outer contacts feature a trimetal-plated finish for enhanced corrosion resistance and longevity.

Application Areas:

  • Indoor Distributed Antenna Systems (DAS) for commercial and enterprise buildings.
  • Wireless network signal distribution for 3G, 4G LTE, and 5G coverage solutions.
  • Public safety networks and private communication infrastructure.
  • Multi-band RF systems requiring precise coupling values and high performance.

In the Box:

  • 1 x CommScope VD-C15-CPUSE-N-A Directional Coupler
  • N-Female connectors

Documents:

CommScope ValuDAS Directional Coupler - Datasheet

Product Specifications

MPN VD-C15-CPUSE-N-A
Band 698-2700
Brands CommScope
Colour Black
Component type Directional Coupler
Connector N(F)
Coupled loss db 15
Height 3.8
Inner contact plating Silver
Length 17.8
Outer contact plating Trimetal
Return loss db 20.8
Technology type 5G, 4G, UMTS
Vswr 1.2
Width 8.8
