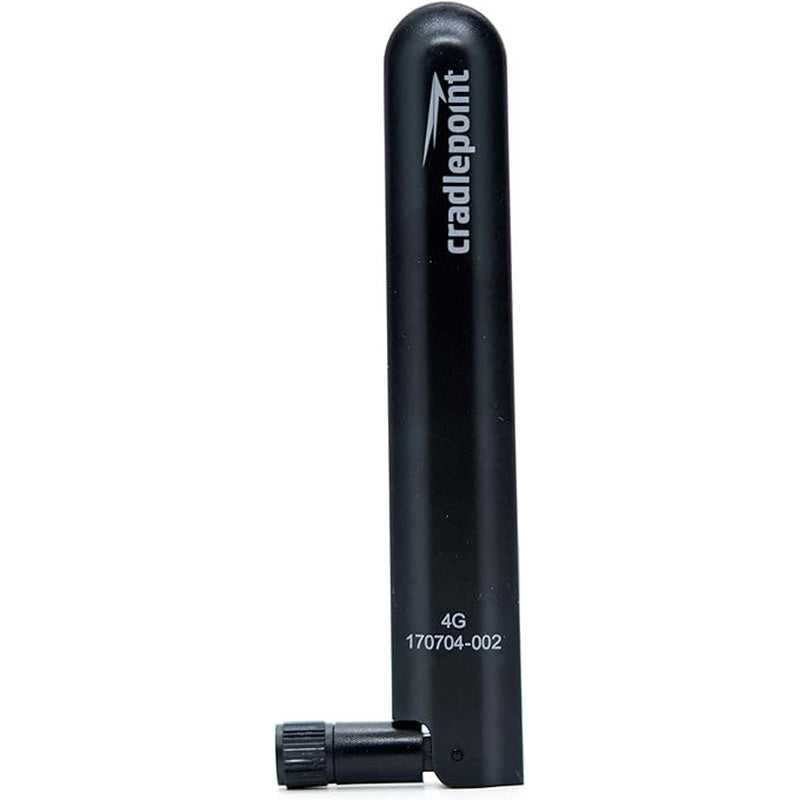

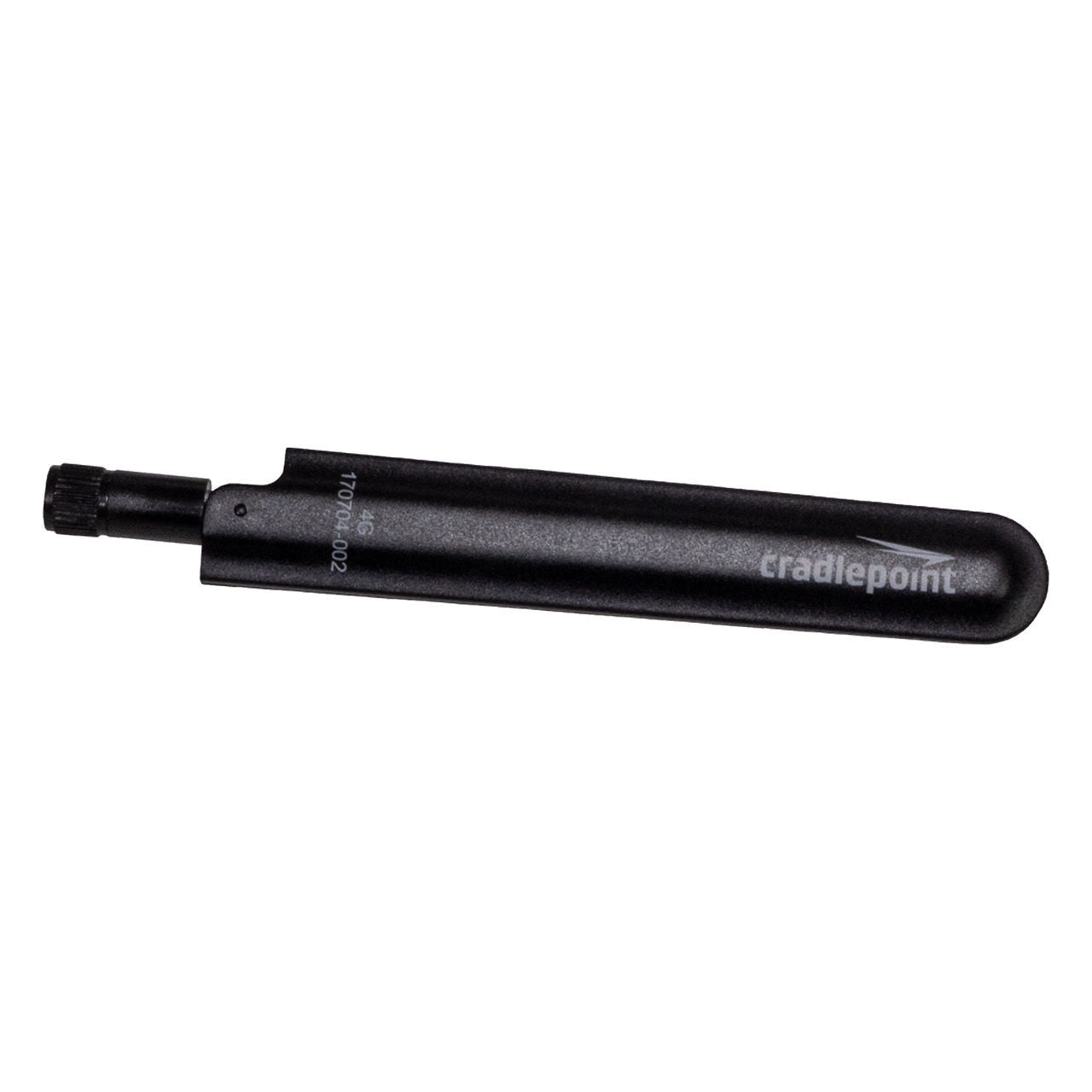

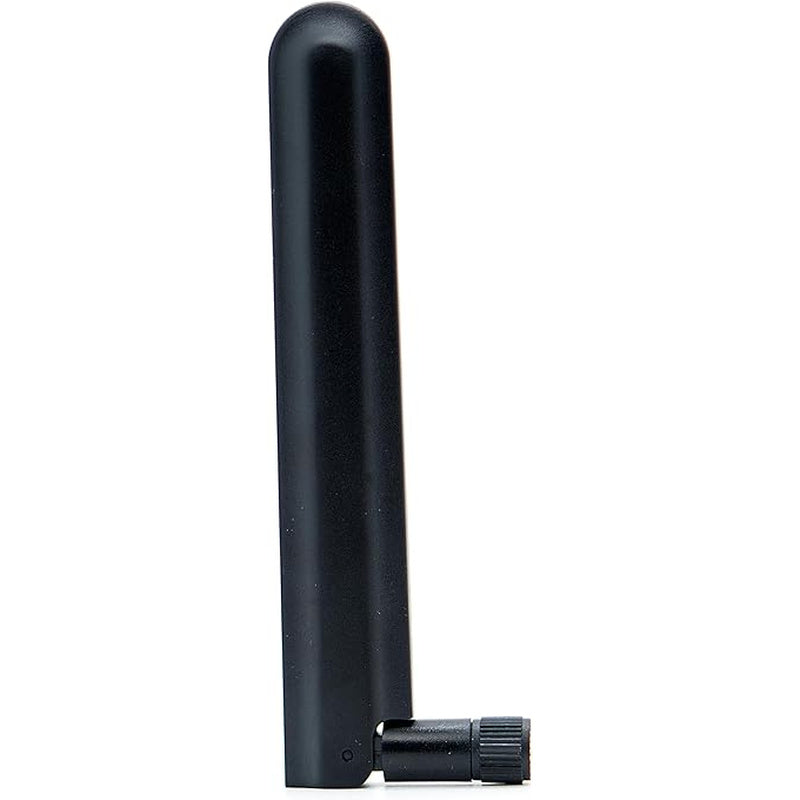

The CradlePoint 170704-002 Cellular Antenna is a compact, black mini antenna designed to deliver wideband performance across 600 MHz to 6 GHz frequencies. Engineered for CradlePoint routers, this antenna provides reliable LTE connectivity and is compatible with a variety of modems and devices including IBR, AER, and COR series models. With an SMA connector and slim profile, it's ideal for mobile and embedded networking applications where space efficiency and high-frequency support are essential.

Product Features:

• The antenna supports a wide frequency range from 600 MHz to 6 GHz, enabling use across multiple LTE bands.
• It delivers 2 dBi of gain in the 698–960 MHz band and 3 dBi of gain in the 1700–2700 MHz band.

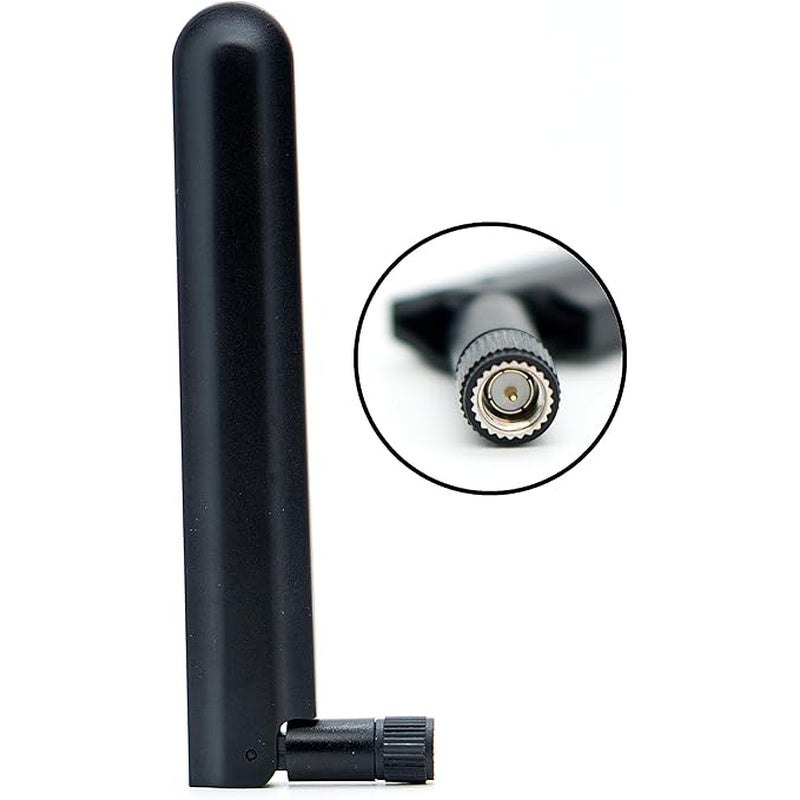

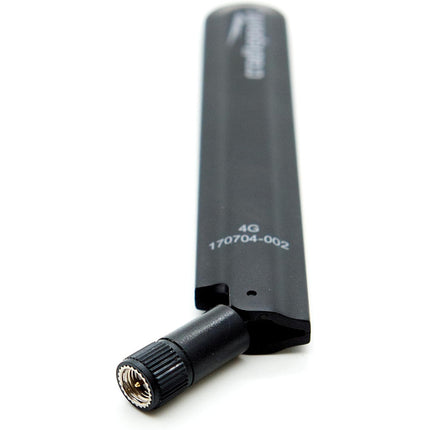

• This miniature black antenna features an SMA-female connector for secure, plug-and-play installation.

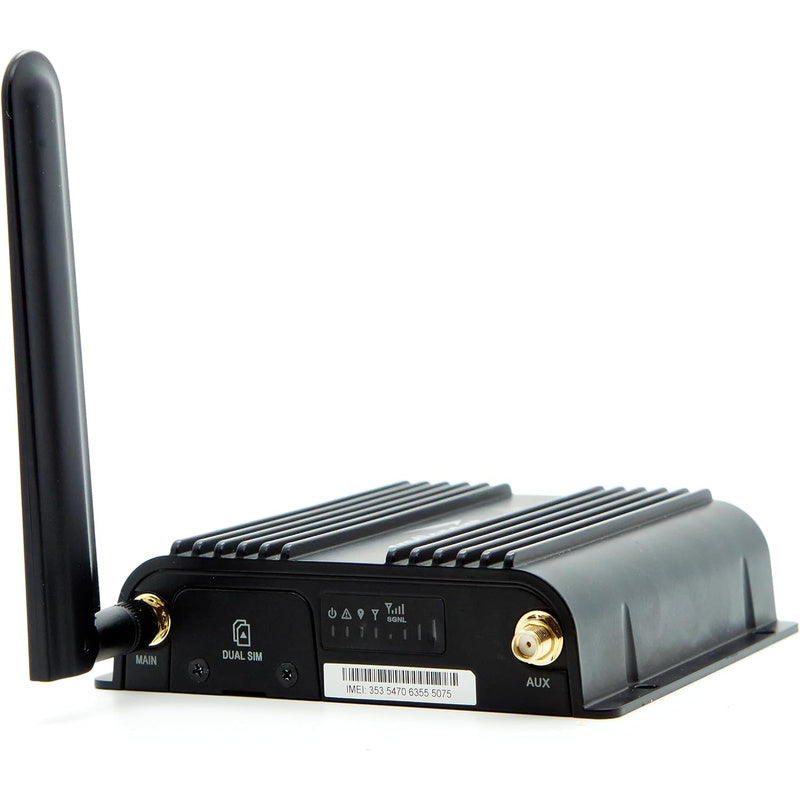

• It is compatible with CradlePoint routers and modems that require an SMA-interface cellular antenna.

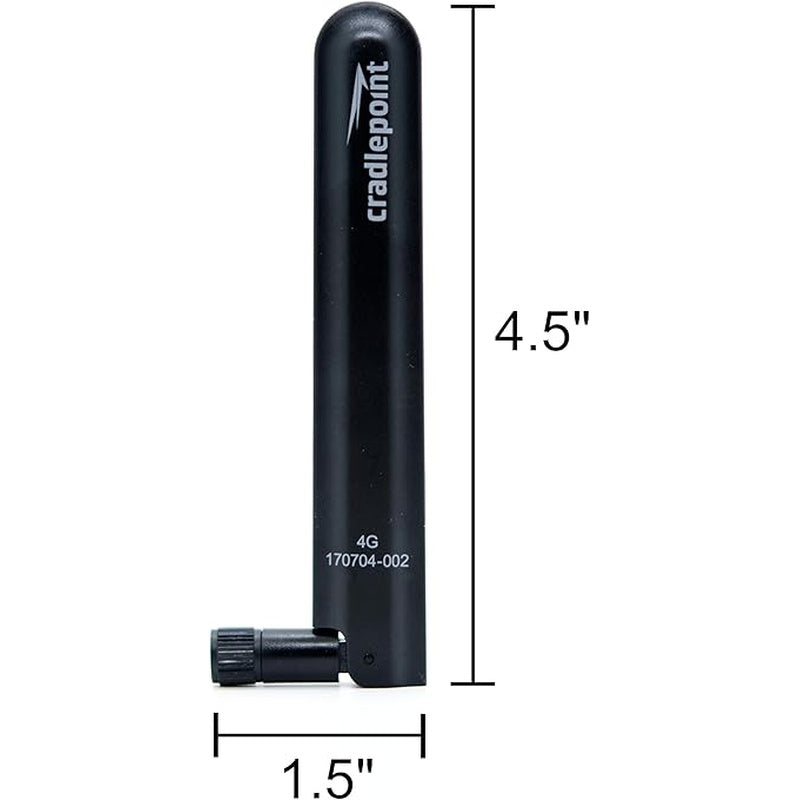

• The compact 140 mm length design allows for easy integration into space-constrained setups.
• This antenna is compatible with 600M, 150M, and 10M modems in the following CradlePoint device series: AER2200, IBR1700, IBR900, IBR600C, and IBR200.

Application Areas:

• The antenna is ideal for mobile and fixed-location LTE applications using CradlePoint routers.
• It is well suited for vehicle-mounted routers in public-safety, transportation, and field-service networks.
• It is recommended for installations requiring wideband cellular support with a low-profile antenna design.

In the Box:

• 1 x CradlePoint 170704-002 Cellular Antenna (Black Mini, SMA)

Documents:

CradlePoint 170704-002 Cellular Antenna - Datasheet
