CradlePoint 170801-000 Cellular Antenna, Charcoal, 600 MHz - 6 GHz, SMA

    CradlePoint 170801-000 Cellular Antenna, Charcoal, 600 MHz - 6 GHz, SMA

      Product form

      CradlePoint 170801-000 Cellular Antenna, Charcoal, 600 MHz - 6 GHz, SMA is compatible with IBR1700/IBR900, AER2200, E300/E3000, MC400

      Export
      Accepted
      Item ID
      182022172
      MPN
      170801-000
      Shipping
      Not available to ship
      Standard Warranty Global Insurance Except USA & Canada

      Sold-out

      $31.68

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

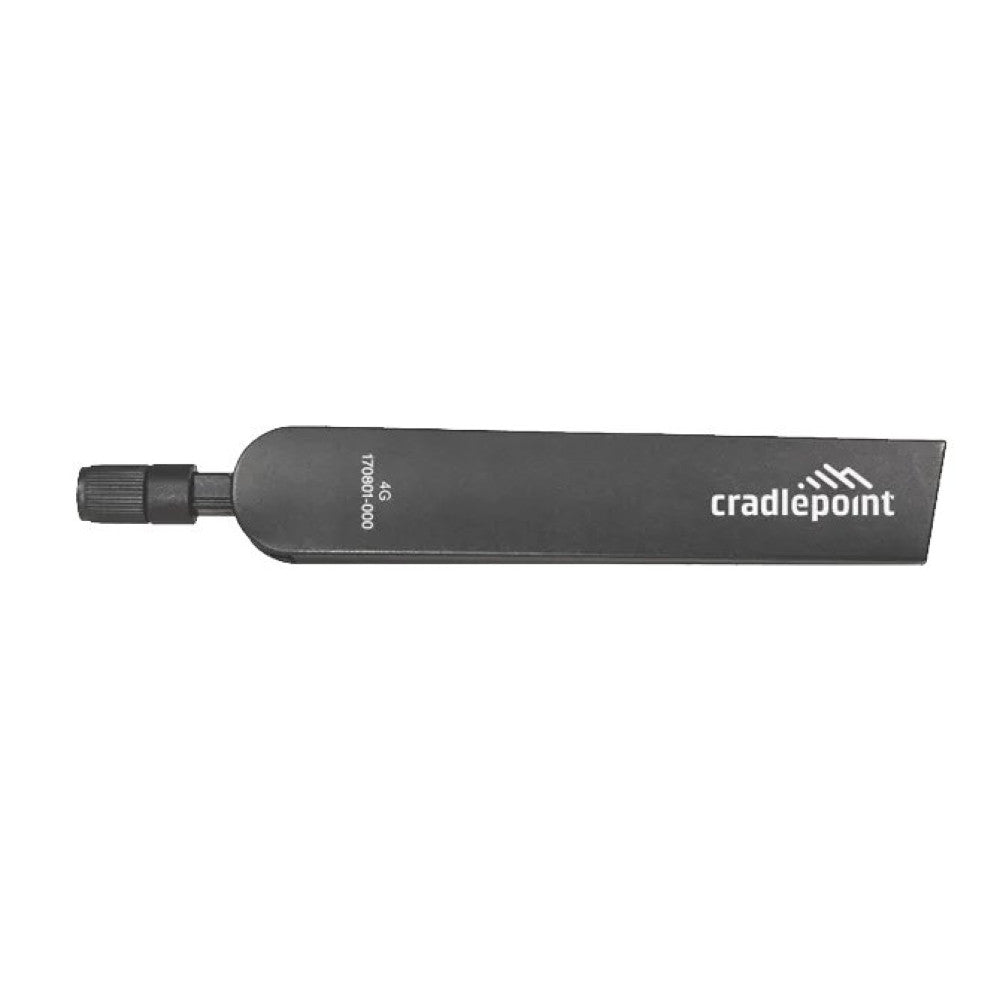

        The CradlePoint 170801-000 Cellular Antenna is designed for compatibility with various CradlePoint endpoints, providing reliable connectivity across a wide frequency range from 600 MHz to 6 GHz.

        Product Features:

        • The antenna has a length of 180 millimeters, making it compact and easy to install.
        • It includes one antenna with an SMA direct attach, ensuring a secure connection (maximum torque not to exceed 4 in-lbs).
        • This antenna is designed to provide robust and reliable cellular connectivity for a range of devices.
        • This antenna is compatible with:E300 Series, E3000 Series, AER2200 Series, IBR1700 Series, IBR900 Series andMC400 with the 1200M-B modem

        Application Areas:

        • This antenna is perfect for enhancing cellular connectivity in various CradlePoint devices.
        • It is suitable for use in environments requiring reliable and wide-range frequency coverage.
        • This antenna is ideal for applications needing secure and stable connections for network devices.
        • It is versatile enough for general use in any project requiring a high-quality cellular antenna.

        In the Box:

        • 1x CradlePoint 170801-000 Antenna, Charcoal, 600 MHz - 6 GHz, SMA

        Documents:

        Cradlepoint Cellular Antenna (170801-000) - Specifications

        Product Specifications

        Brand CradlePoint
        Length (cm) 1.27
        Width (cm) 1.27
        Height (cm) 20.32
        Antenna Port Connectors SMA (M)
        Coverage Type Omni-directional
        Installation Type Device mounting
        Low PIM No
        Max Frequency (MHz) 6000
        Max Gain (dBd/dBi) 9
        MIMO Support No
        Min Frequency (MHz) 600
        Min Gain (dBd/dBi) 1.08
        Mount Supported Connector mount
        Mount Supported - Detailed Device mount
        No. of Antenna Ports 1
        Technologies Supported 2G, 3G, 4G, 5G
