RFI GA06-14 Grid Antenna, Full Band, 1350-1535 MHz, 18 dBi, Low PIM

    RFI GA06-14 Grid Antenna, Full Band, 1350-1535 MHz, 18 dBi, Low PIM

      Product form
      Brand:
      RFI
      Item ID:
      167015926
      MPN:
      GA06-14
      Export:
      Restricted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      Grid Antenna - 1350-1535 MHz is a fully welded ruggedized parabola grid, providing highly reliable point to point or point to multi-point communication.

      Sold-out

      $1,748.72

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        Grid Antenna - 1350-1535 MHz; Full Band; Low PIM

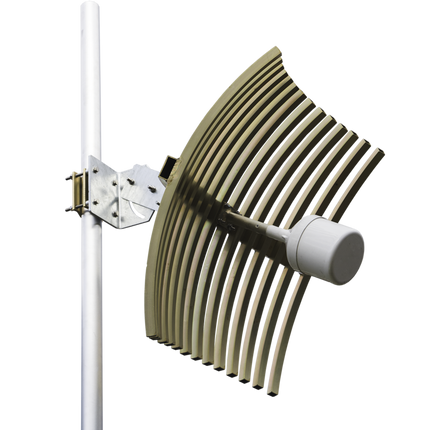

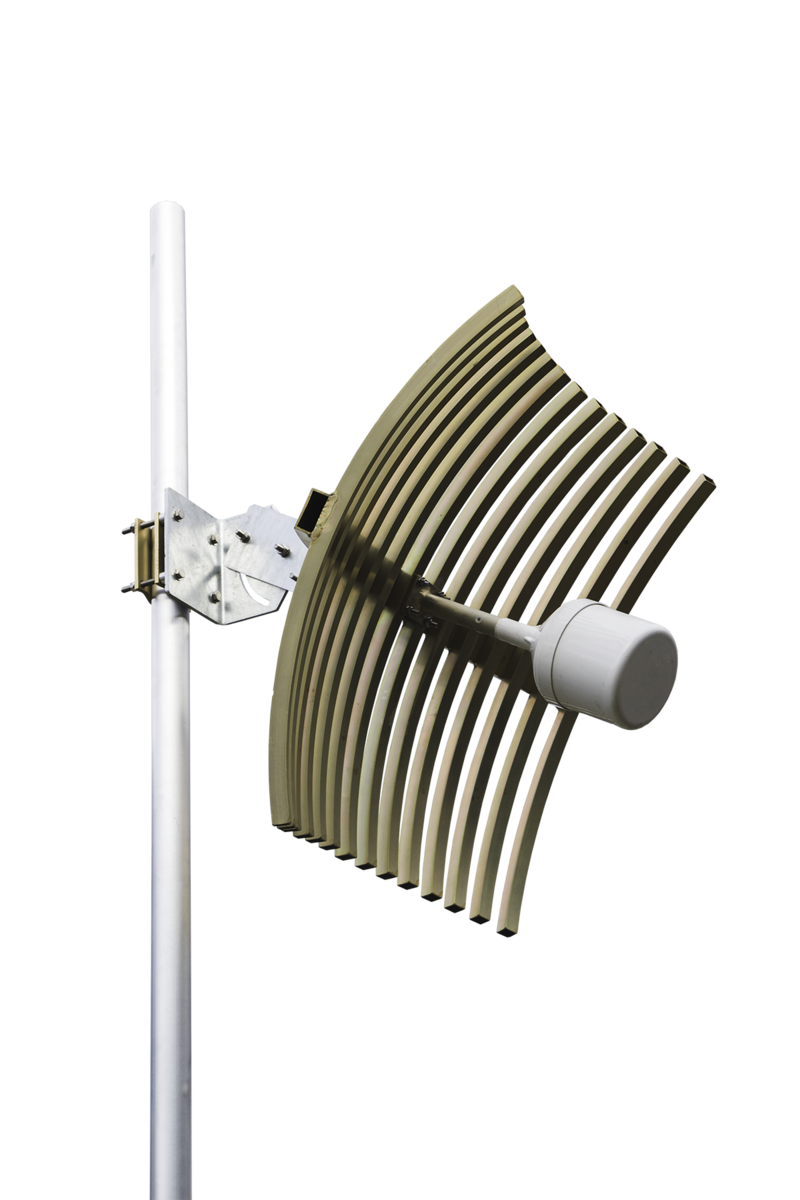

        The GA06 mini-grid is a fully welded ruggedized parabola grid, providing highly reliable point to point or point to multi-point communication. Utilising PCB manufacturing techniques, this grid offers best in class reliability and performance, with Low PIM performance, high reliability as well as pattern stability and more importantly, repeatability. Although highly durable in design, wind loading and weight have been reduced, through respective design elements, including tubular aluminum, and lightweight, UV stabilised ABS radome and PCB element. The integrated mounting clamp offering full articulation and polarisation adjustment; offering more assistance and reduction in time during installation.

        Features:

        • Wide band frequency range
        • Low PIM, rugged design
        • Vertical, Horizontal or 45 deg linear polarisation
        • Fully articulated mounting design, for easy installation

        Product Specifications

        Brand RFI
        Length 99
        Width 3
        Height 3
        Antenna Application Base Station Antenna
        Antenna Cable Type RG142
        Antenna Features Directional
        Antenna Port Connectors N (F)
        Antenna Type Directional Grids
        Cable Length (m) 0.5
        Coverage Type Directional
        Front Back Ratio dB greater than 22
        Horizontal Beamwidth 17
        Installation Type External mounting
        Low PIM Yes
        Max Frequency (MHz) 1535
        Max Gain (dBd/dBi) 18
        MIMO Support No
        Min Frequency (MHz) 1350
        Min Gain (dBd/dBi) 18
        Mount Supported Pole mount
        Mount Supported - Detailed Pole mount
        Mounting Area Articulated clamping mount supplied
        No. of Antenna Ports 1
        Nominal Gain [dBi] 18
        PIM (3rd, 2 x 20 W) dBc -140
        Polarisation Linear
        Power [W] 250
        Technologies Supported UHF
        Termination 0.5 meters RG142 cable terminated with N type female
        Torque [Nm] 91
        Tuned Bandwidth Full band.
        Vertical Beamwidth 20
        VSWR <1.5:1
        Wind Gust (km/h) 240
        Wind Thrust 273
