Huber+Suhner QMA-Male Connector, 18 GHz, RG316/174 - Crimp

    Huber+Suhner QMA-Male Connector, 18 GHz, RG316/174 - Crimp

      Product form
      Brand:
      Huber+Suhner
      Item ID:
      168018556
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      11_QMA-50-2-2/133_NE
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      H and S QMA(M) Connector; RG316/174 - offers an easier, faster and safer coupling operation, helping the customers to save significantly time.

      Available

      $42.05

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

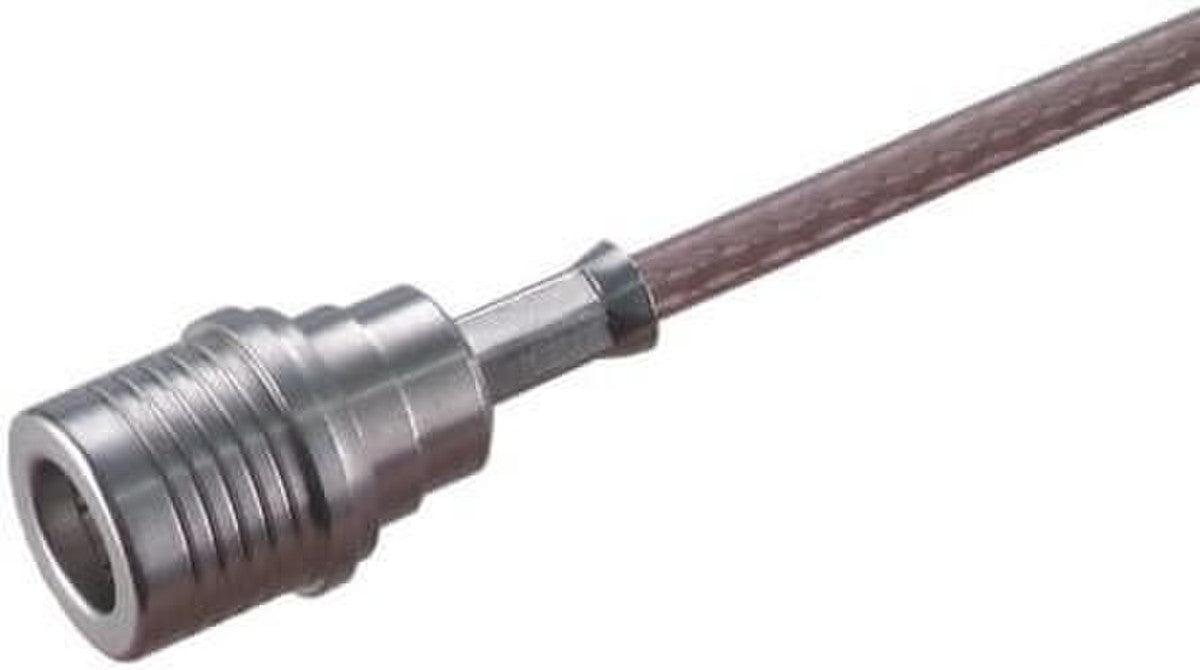

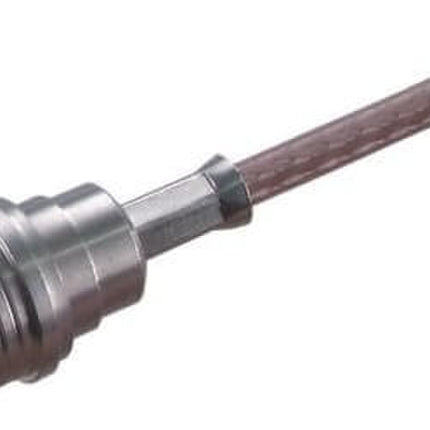

        H and S QMA(M) Connector; RG316/174 - Crimp

        The QMA interface has a very similar performance to the SMA, but in addition it offers an easier, faster and safer coupling operation, helping the customers to save significantly time during production of their systems. The packaging density of H and S QMA(M) Connector; RG316/174 is increased compared to SMA connectors thanks to the fact that no torque spanner is required to fasten the coupling nut. QMA is not intermateable with SMA.
        • Type: Plug
        • Impedance (ÃŽ"): 50
        • Frequency (GHz): 18
        • Panel Mount Retention: No
        • Termination: Crimp centre
        • Crimp outer Body style: Straight
        • Body Material: Brass
        • Body Finish: SUCOPLAT.

        Product Specifications

        MPN 11_QMA-50-2-2/133_NE
        Brands Huber+Suhner
        Cable supported RG174, RG316
        Cable type connectors RG174
        Centre conductor Crimp
        Component type Connector
        Connector QMA(M)
        Connector end a QMA (M)
        Height 5
        Impedance ohm 50
        Inner attachment Crimp
        Length 5
        Max frequency 18 GHz
        Max frequency mhz 18000
        Min frequency mhz 0
        Mounting angle Straight
        Prep toolset Other
        Width 5
