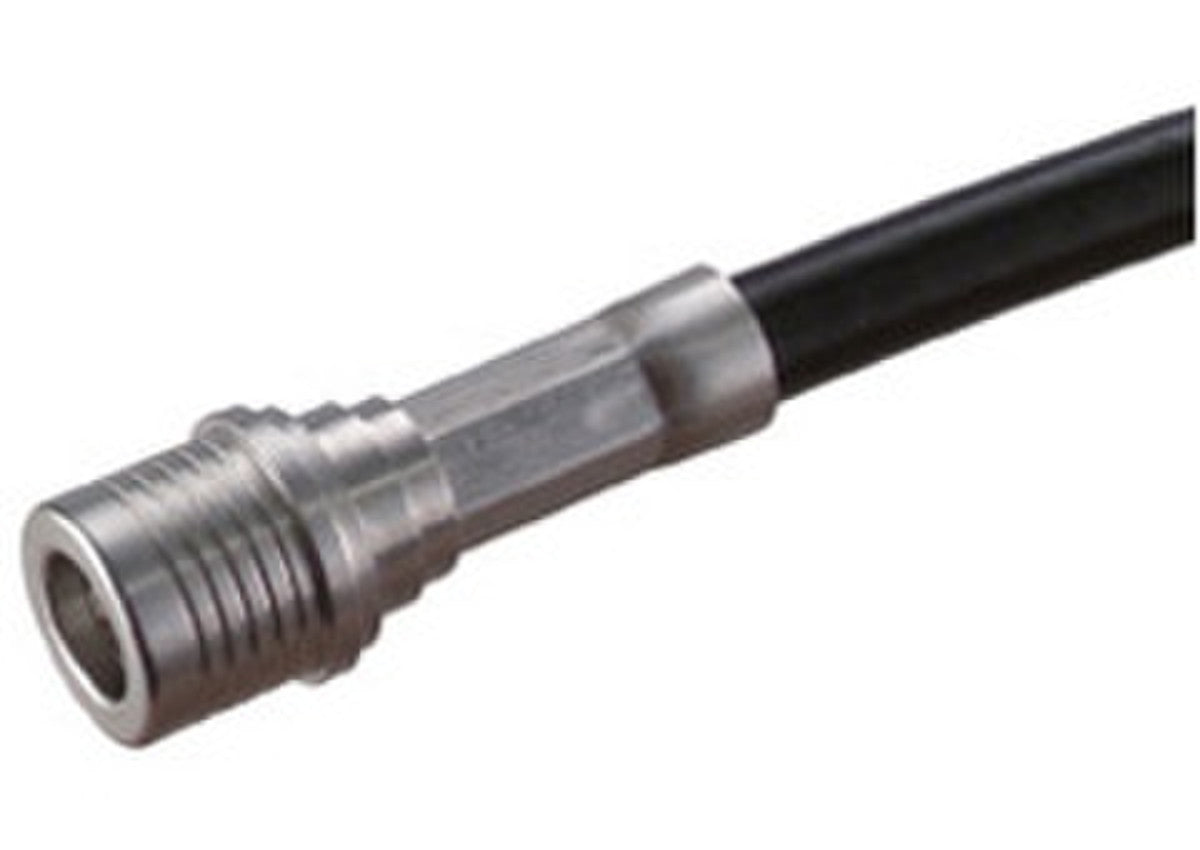

Huber+Suhner QMA-Male Connector, RG58 - Solder or Crimp

    Huber+Suhner QMA-Male Connector, RG58 - Solder or Crimp

      Product form
      Brand:
      Huber+Suhner
      Item ID:
      168018558
      MPN:
      11_QMA-50-3-2/133_N
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      H and S QMA(M) Connector; RG58 Solder/Crimp, similar performance to the SMA, but in addition it offers an easier, faster and safer coupling operation.

      Available

      $38.32

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        H and S QMA(M) Connector; RG58 Solder/Crimp

        The QMA interface has a very similar performance to the SMA, but in addition it offers an easier, faster and safer coupling operation, helping the customers to save significantly time during production of their systems. The packaging density of H and S QMA(M) Connector; RG58 Solder/Crimp is increased compared to SMA connectors thanks to the fact that no torque spanner is required to fasten the coupling nut. QMA is not intermateable with SMA.
        • Type: Plug
        • Impedance: 50 Ohms
        • Frequency: 18 GHz
        • Termination: Solder centre, Crimp outer
        • Body style: Straight Body
        • Material: Brass Body
        • Finish: SUCOPLATE

        Product Specifications

        Brand Huber+Suhner
        Length 5
        Width 5
        Height 5
        Cable Supported RG58C/U, G03232, GX03272, GX03272-04
        Cable Type RG58
        Cable Type Connectors RG58
        Centre Conductor Solder
        Component Type Connector
        Connector QMA(M)
        Connector End A QMA (M)
        Impedance [Ω] 50
        Inner Attachment Solder, Crimp
        Max Frequency 18 GHz
        Max Frequency (MHz) 1000
        Min Frequency (MHz) 0
        Mounting Angle Straight
        Prep Toolset Other
