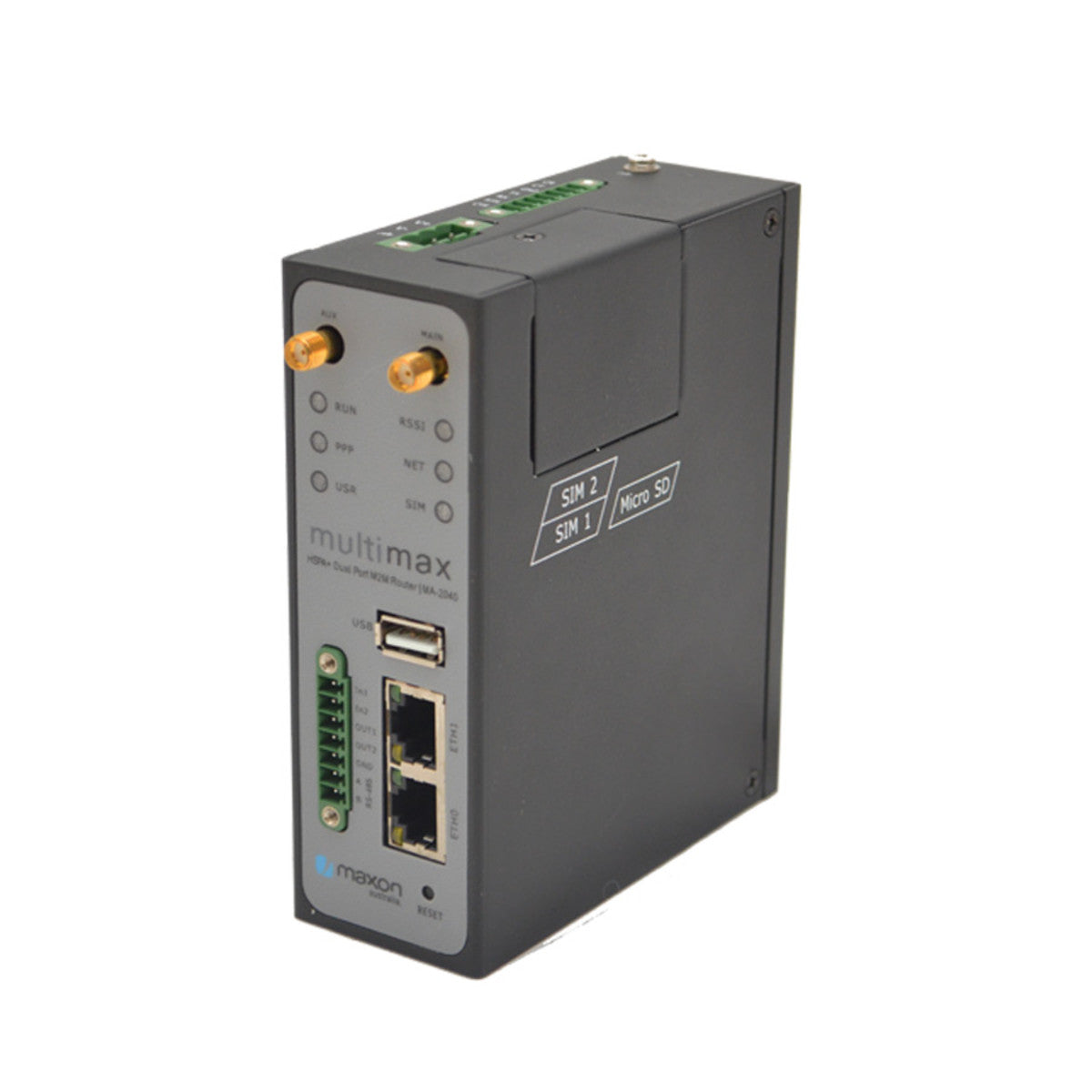

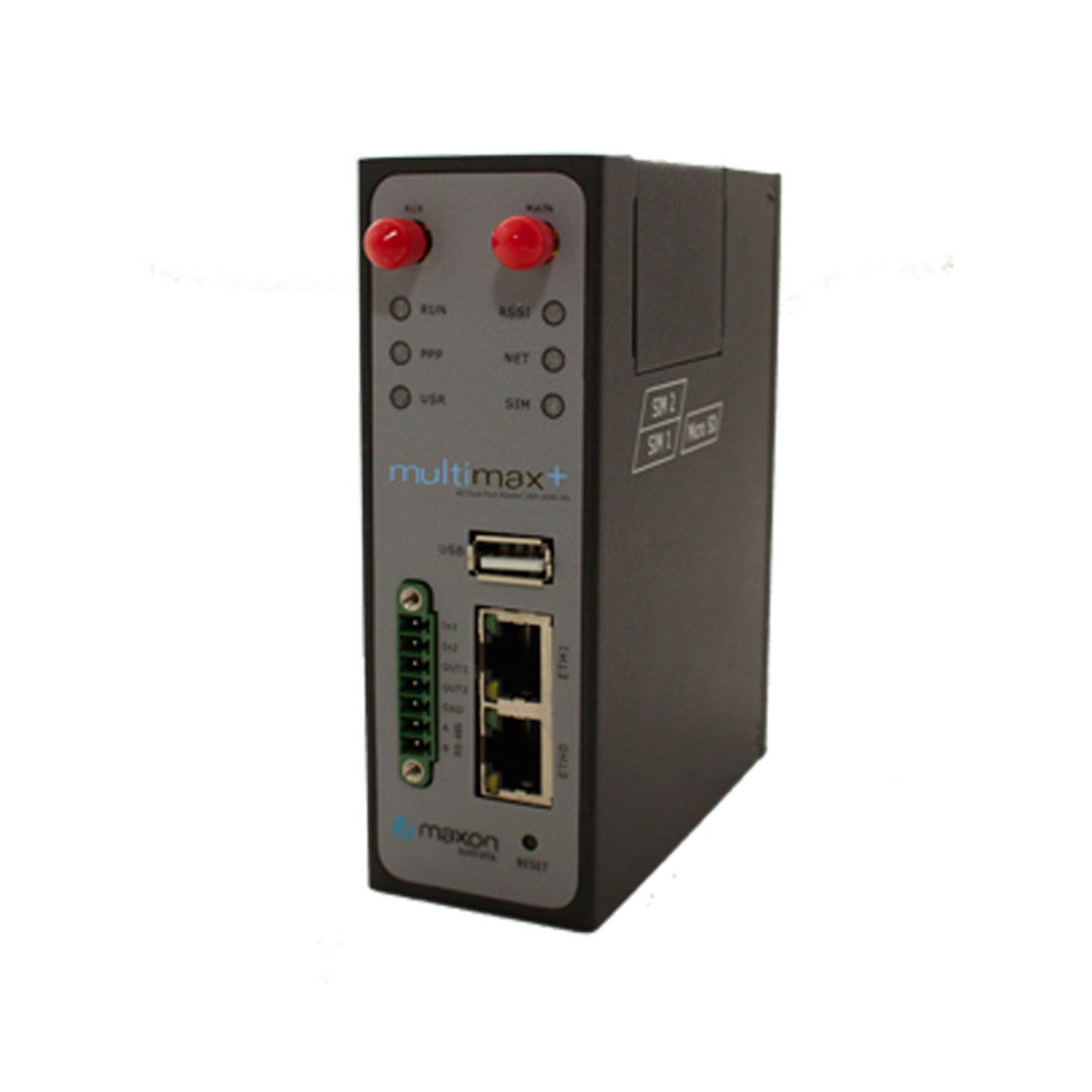

The Maxon 4G modem MA-2040 is a rugged and high-performance 4G industrial IoT router designed for M2M, telemetry, and automation applications. With LTE Band 28 support, dual-SIM redundancy, and configurable Ethernet ports, it provides secure and reliable connectivity for critical operations such as video streaming, remote monitoring, and industrial automation.

Product Features:

• The device supports Band 28 with a downlink speed of up to 150 Mbps and an uplink speed of up to 50 Mbps.
• It features dual-SIM redundancy, allowing seamless network failover for uninterrupted operation.
• Equipped with two configurable Ethernet ports.
• It can be set up as LAN+LAN or LAN+WAN for backup networking.
• It includes one RS232 port, one RS485 port, and one USB 2.0 host port.
• The device also features two digital inputs and two digital outputs for industrial applications.
• It supports FOTA (Firmware Over-The-Air updates), enabling remote firmware upgrades.
• DDNS (Dynamic DNS) support allows for dynamic IP address management.
• Remote device control is available through SMS commands.
• The device is compatible with multiple network protocols, including SSH, TCP Server, TCP Client, UDP Server, UDP Client, and FTP Client.
• A built-in IP stack enhances network performance and reliability.
• It is designed with six LEDs for status indication and two SMA antenna connectors for Main and Diversity signal reception.
• A robust metal enclosure with flexible mounting options ensures durability.
• The device supports Modbus/RTU to Modbus/TCP gateway functionality.
• It operates within a wide input voltage range of 9-60V.

Application Areas:

• Industrial IoT and M2M.
• Remote monitoring and telemetry solutions.
• Smart city and infrastructure projects.
• Energy and utility management.
• Video Surveillance
• Media Transfer
• Broadcast Industry
• Real-Time Monitoring
• Electronic Signage
• Security Systems

Kit Includes:

• 1 x Maxon 4G Modem (MA­-2040­-4G)
• 2 x Antenna (ANT-SMA(M))
• 2 x Connector (CON-­4225) Phoenix (7 Pin)
• 1 x Connector (CON­-4235) Phoenix (3 Pin)
• 1 x Ethernet Cable (CAB-5620)
• 1 x Phoenix (7 Pin) Connector to DB9 (Female) Serial Cable

3G Shutdown replacement for:

• Maxon Multimax MA-2040 3G
• Maxon MA-2010C

Note: It is advised to contact d2x technical support team to discuss your application prior to transitioning from these products.

Optional Accessories (sold separately):

• 3G/4G SMA cellular antenna (stubby/magnet optional)
• RP-SMA WiFi antenna (stubby/magnet optional)
• Wall mounting kit
• 35 mm DIN rail mounting kit
• AC/DC power adapter (12V DC, 1.5 A; EU/US/UK/AU plug optional)

Documents:

Multimax MA-2040-4G Kit - Brochure Multimax MA-2040-4G KIT - User Manual
