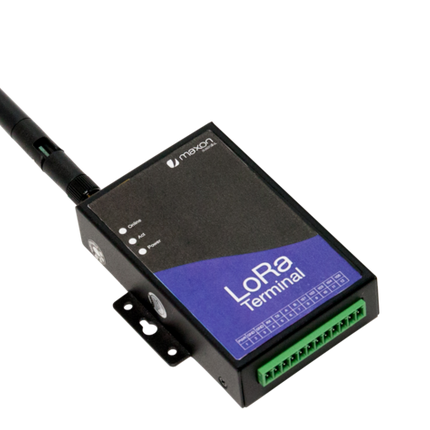

The Maxon Datamax LoRaWAN Terminal is an industrial IoT solution designed for machine-to-machine (M2M) applications. It provides long-range wireless connectivity using LoRa technology with RS232 & RS485 support.

Product Features:

• Operates on the Australian ISM band for secure, long-range communication.
• -148 dBm Ultra-High Receiver Sensitivity
• RS232 and RS485 Support
• Low Power Consumption
• Relay Routing and Terminal Device Functionality
• Supports Over-the-Air (OTA) Updates
• Max Transmission Distance: Up to 8 km for long-range communication.
• 200+ Nodes per Network
• 5 I/O Channels: 3 Analog, 2 Digital, and 2 Pulse-Compatible Channels for flexible integration.
• Hardware and Software Watchdog Timer (WDT)

Application Areas:

• Industrial IoT and M2M applications.
• Smart agriculture and environmental monitoring.
• SCADA and telemetry systems.
• Remote data logging and automation.
• Energy and utility monitoring.

In the Box:

• 1 × Maxon Datamax LoRaWAN Terminal.

Optional Accessories:

• Alternative External Antennas.
• Datamax LoRa Gateway.
• Power Adapter.
